Brand: Bently Nevada
Product Type: Temperature Module
Payment:T/T, Western Union
Shipping Port:Jinhua China
Lead Time:1-3 Working Days
Condition: Brand New And 100% Original
Warranty: 12 months

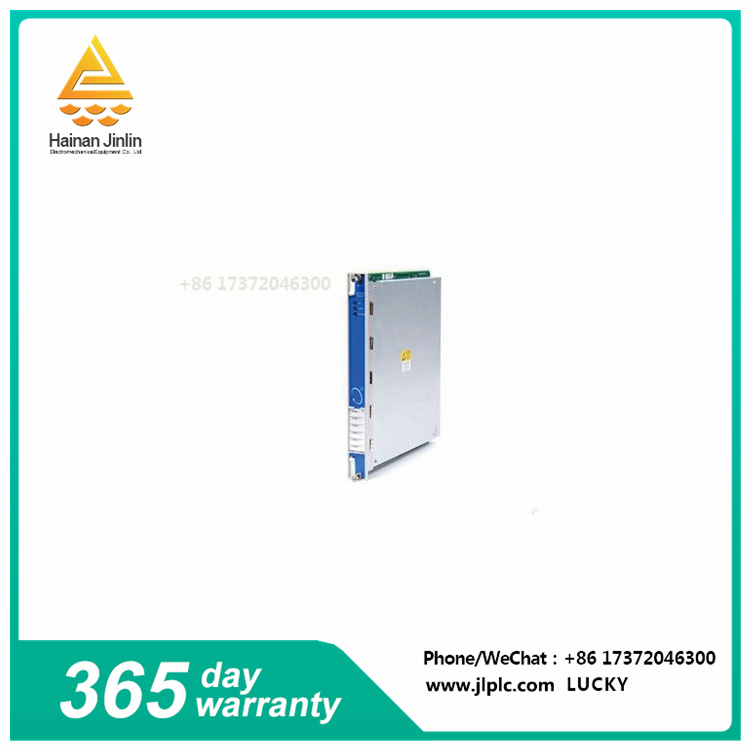

The Bently Nevada 3500/60 133835-01 is a temperature monitoring module that provides six temperature monitoring channels and accepts resistance temperature detector (RTD) and thermocouple (TC) temperature input. It is a TC isolation module, which means that it provides 250 Vdc inter-channel isolation to prevent external interference.
The module has a nominal power consumption of 7 watts and measures temperatures in the range of -100 to 1,000 degrees Celsius (-148 to 1,832 degrees Fahrenheit). It has an input impedance of 10 MΩ and a resolution of 0.1 degrees Celsius (0.2 degrees Fahrenheit).
The module is installed in a metal housing that is rated either Category 1 Zone 2 or Category 1 Zone 2 Hazardous Environment. It measures 241.3 x 24.4 x 163.1 mm (9.50 x 0.96 x 6.42 inches) and weighs 0.46 kg (1.01 lb).
3500/60 133835-01 can be used for a variety of applications, including:
Monitor bearings, motors and other rotating equipment
Temperature monitoring of heat exchangers, boilers and other process equipment
It monitors the temperature of critical components in aircraft, spacecraft and other transportation systems
