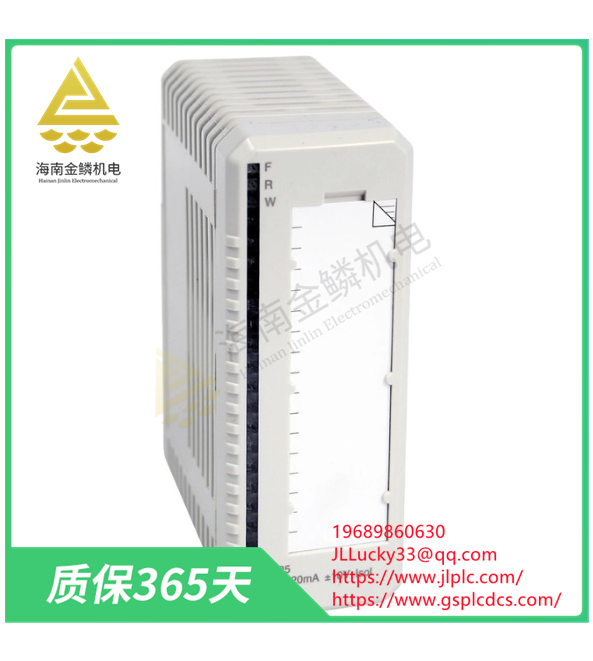

Product model: AO810V2
Item number: 3BSE038415R1
Category Description: Analog input module
Product color: new, not new
Warranty: One year
Stock: Yes
Brand: ABB
dimension
Width 45 mm (1.77 in)
Depth 102 mm (4.01 "), 111 mm (4.37 ") including connector
Height 119 mm (4.7 in)
Weight 0.18 kg (0.4 lb)
Detailed data
Resolution 14 bits
Isolation groups are isolated from the ground
Below/out of range - / +15%
Output load ≤ 500Ω (only connected to L1+ power supply)
250-850 Ω (Connect L2+ power supply only)
Maximum 0.1% for error 0-500 ohms (current)
The typical temperature drift is 30 ppm/°C and the maximum is 60 ppm/°C
Rise time 0.35ms (PL = 500Ω)
Update cycle time ≤ 2ms
Current limiting Short circuit protection Limited current output
Maximum field cable length 600 meters (656 yards)
Rated insulation voltage 50 volts
Dielectric test voltage 500 V AC
The AO810/AO810V2 analog output module has 8 unipolar analog output channels. To monitor communication with the D/A converter, serial data is read back and verified. An open circuit diagnosis was received during a read back. The module performs self-diagnosis periodically. Module diagnostics include process power monitoring, which is reported when the supply voltage to the output circuit is low. The error is reported as a channel error. Channel diagnostics include fault detection of channels (reported only on active channels). If the output current is less than the output set value and the output set value is greater than 1 mA, an error is reported.
Characteristics and advantages
8 channel 0... 20 mA, 4 to 20 mA output
The OSP sets the output to a scheduled state when an error is detected
Analog output should be shorted to ZP or +24 V
