Product model: AO815
Item number: 3BSE052605R1
Category Description: Analog output module
Product color: new, not new
Warranty: One year
Stock: Yes
Brand: ABB
dimension
Width 45 mm (1.77 in)
Depth 102 mm (4.01 "), 111 mm (4.37 ") including connector
Height 119 mm (4.7 in)
Weight 0.21 kg (0.46 lb)

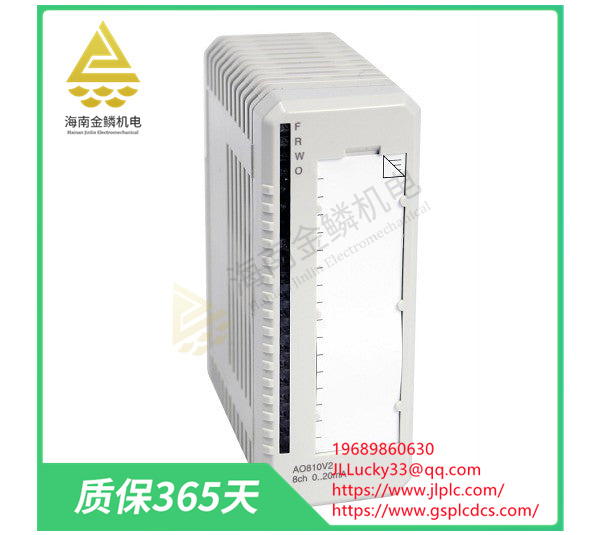

The AO815 analog output module has 8 unipolar analog output channels. The module performs self-diagnosis periodically. Module diagnostics include:
If the process supply supplying voltage to the output circuit is too low, or if the output current is less than the output setpoint and the output setpoint is greater than 1 mA (open circuit), an external channel error is reported (only on the active channel).
If the output circuit cannot give the correct current value, an internal channel error is reported.
If an output transistor error, short circuit, checksum error, internal power supply error, or watchdog error occurs, a module error is reported.
The module has HART pass-through function. Only point-to-point communication is supported. The output filter must be enabled on the channel used for HART communication.
Characteristics and advantages
Eight fours... 20 mA channel
1 group of 8 channels, isolated from the ground
Analog input short-circuit protection to ZP or +24 V
HART direct communication
