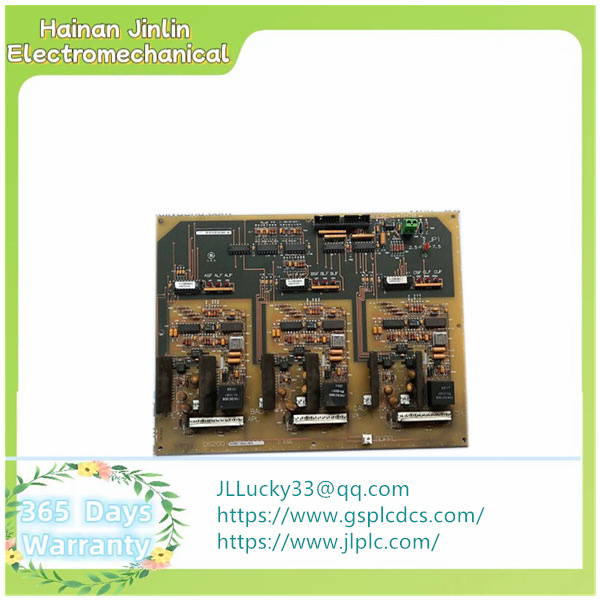

DS200AAHAH1AED | connector board | runs in MARK V's control panel

Product parameters:

Model: DS200AAHAH1AED

One input voltage :24vdc

One output voltage :5vdc

- Communication port :RS485

A working temperature :-40℃~ 70°C

Size :10cm x10cm x2cm

Product description

The DS200AAHAH1AED is an ARCNET LAN driver created by GE. The board is a component of the GE Mark VLM series Speedtronic hardware. GE no longer supports this board and may be a bit difficult to find. Please check with AX Control for the availability of DS200AAHAH1AED, as we do try to keep stock.

The DS200AAHAH1AED is a PCB designed to run in the MARK V's control panel. It is also identified as the ARCNET Connector Board (AAHA). As the name suggests, the board is designed to connect the main control engine and external drives to ARCNET. The control engine is actually located within the kernel. You actually need two AAHA boards inside the kernel. One board required for the kernel is the board that connects COREBUS to the kernel. In this way, the control engine can communicate with the I/O kernel, which is also kept in the kernel. The board can also be connected to the PANA board. The second board grants the Stage Link connection to the user interface and the kernel.
