Model: DS200DCFBG1B
Category: Power board
End: New, not new
Stock: Yes
Warranty :365 days
Brand :GE
Processor: STM32F103C8T6 32-bit microcontroller, the main frequency up to 72 MHz
Interface: Profibus DP interface
Transmission rate: 9600 bps to 12 Mbit/s
Node address: 0-127
Power supply voltage: 24V DC
Operating temperature: -20°C to 60°C
Mounting method: DIN rail mounting

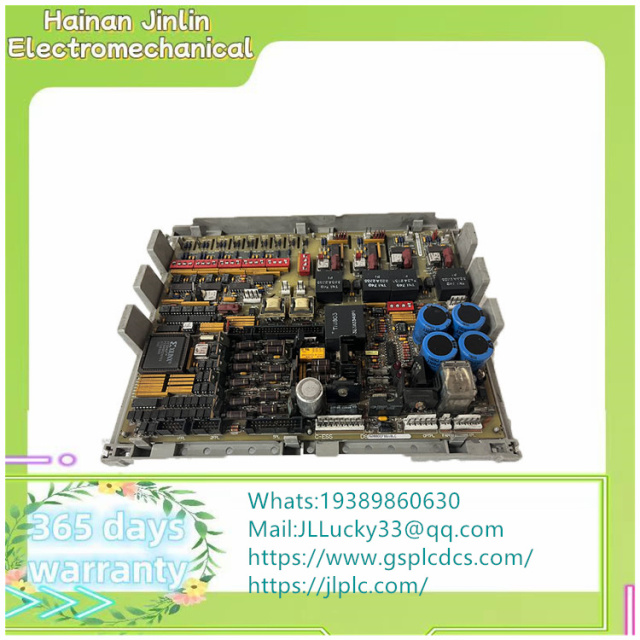

The DS200DCFBG1B is a power supply board manufactured by General Electric for the Mark V board series. AC2000, CB2000, DC2000, FC2000, ME2000 and EX2000 series machines can have the motherboard installed in the drive. When installed, the card provides control level power to the drive and cabinet fan power. The rated voltage is between 38 and 115 VAC and can be supplied directly to the board via a control power transformer. The frequency of the board depends on the input voltage, but ranges from 0 to 500 kHz.
The board has a number of circuits that are used to power the circuit board and the installed drivers. DS200DCFBG1B is composed of motor excitation power supply, driver, AC/DC monitoring and control level power supply circuit. The 12 jumpers and 7 DIP switches on the board provide users with configurable system options. Fuse switch diagnosis is performed using two leds and a neon indicator on the circuit board. Three protective fuses prevent power outages. The voltage can be monitored using five test points integrated on the board.
The DS200DCFBG1BI Power board is a circuit board that provides the power needed for electronic devices. The power supply board usually contains circuit elements such as power converters, filters, and regulators, which are used to convert the input power supply voltage into the voltage and current required by the device.
The main function of the DS200DCFBG1BI power supply board is to convert alternating current to direct current and provide stable voltage and current. It can provide different voltages and currents according to the needs of the equipment, such as 5V, 12V, 24V, etc. The power supply board can also provide protection functions such as overvoltage, overcurrent, and short circuit to protect the device from power failure.
DS200DCFBG1BI power supply board is widely used in various electronic devices, such as computers, mobile phones, TVS, routers and so on. Different devices require different power strips because they require different voltages and currents. The design and manufacture of the power supply board needs to take into account the efficiency, stability, reliability and safety of the power supply.
In short, the power board is a very important part of the electronic equipment, which provides the required power for the equipment and ensures the normal operation of the equipment.
