Product description

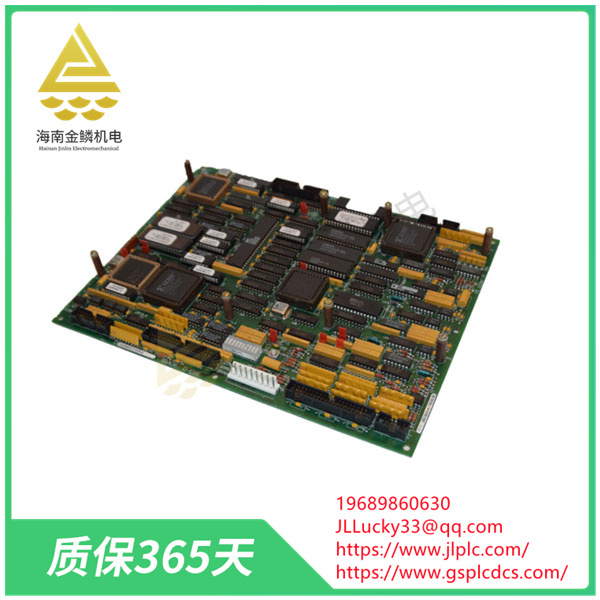

The DS200SDCCG5AHD is a drive control card for some Mark V Speedtronic applications. A G2 version of the board was never produced, but there were G1, G3, G4, and G5 versions. Be sure to order the right board for your application. The board was replaced by the DS215SDCC board. It should be noted that due to the addition of components to the DS215 board, these boards are not backward compatible.
The DS200SDCCG5AHD contains the master control circuit and software required for the driver or exciter. The board includes interface circuits that allow it to connect to and communicate with other boards and process signals from those boards. The board includes a number of advanced Xilinx chip components as well as other integrated circuits. This includes drive control processors, motor control processors, and common motor processors.
trait
High performance control capability
Reliable and durable construction
Easy to install and configure
DS200SDCCG5AHD is a driver control card for some MarkV Speedtronic applications. The G2 version of this board has never been produced, but there are G1 G3, G4 and G5 versions. Be sure to purchase the right board for your application
The board has been replaced by the DS215SDCC circuit board. It is worth noting that due to the addition of components to the DS215 boards, these boards are not backward compatible
The DS200SDCCG5AHD contains the soil control circuitry and software required for the driver or exciter. The board contains interface circuits that enable the base to connect to and communicate with other boards and process signals from those boards. The board contains many advanced
Xilinx chip components and other integrated circuits, which include drive control externals and motor control externals and auxiliary motor externals
