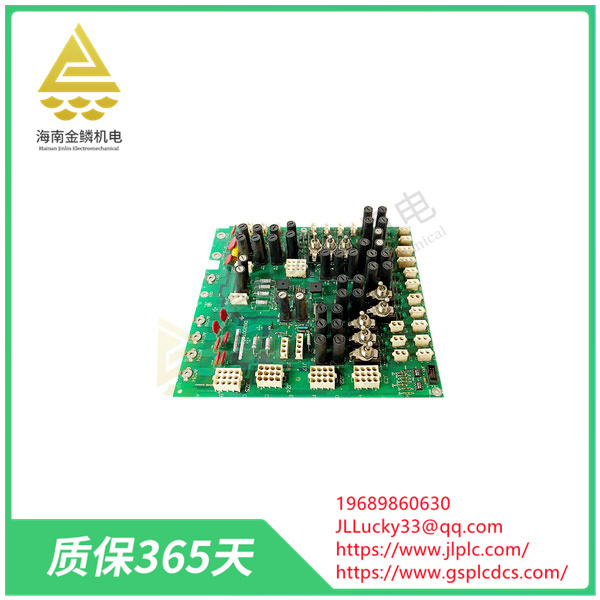

DS200TCPDG1BEC | Power distribution board | has 8 toggle switches

Model: DS200TCPDG1BEC
Category: Power distribution board
Finish: new, not new
Stock: Yes
Brand: GE

Product parameters.

- Model :MIFIIPI55E10HI00
- Input voltage :24V DC
- Output voltage :0 to 10v DC
- Communication interface :Modbus RTU
- Temperature range :-40° C to 85 ° C

【 Function Description 】
Product description

The GE switchboard DS200TCPDG1BEC has 8 toggle switches, 36 fuses and 4 signal line terminals. It also has 36 OK leds and a 10-pin connector. The GE switchboard DS200TCPDG1BEC has a black plastic housing with 36 fuses. The fuse is located vertically inside the tank, making it easy to access and replace if needed. To replace the fuse on the circuit board, unscrew the top of the fuse box. The top is still attached to the can for easy use. Use your thumb and other finger to remove the fuse from the cartridge. The best course of action is to discard the burned fuse so that it does not accidentally insert again into a canister on the circuit board. To install a new fuse, align the fuse with the opening and place it in the can. Either end of the fuse can be put into the can. Put the lid on the jar and close it with a twist.

To determine that a fuse has blown and needs to be replaced, consider that a visual inspection of the fuse is not possible because the fuse is in the tank. However, there is an LED next to each fuse indicating that the fuse is OK. When lit, the green LED indicates that the components in the fuse are intact and protects the board circuit. When disconnected, the fuse is blown or the circuit board does not receive power. If all the leds are off, you may suspect that the board is not receiving power.
