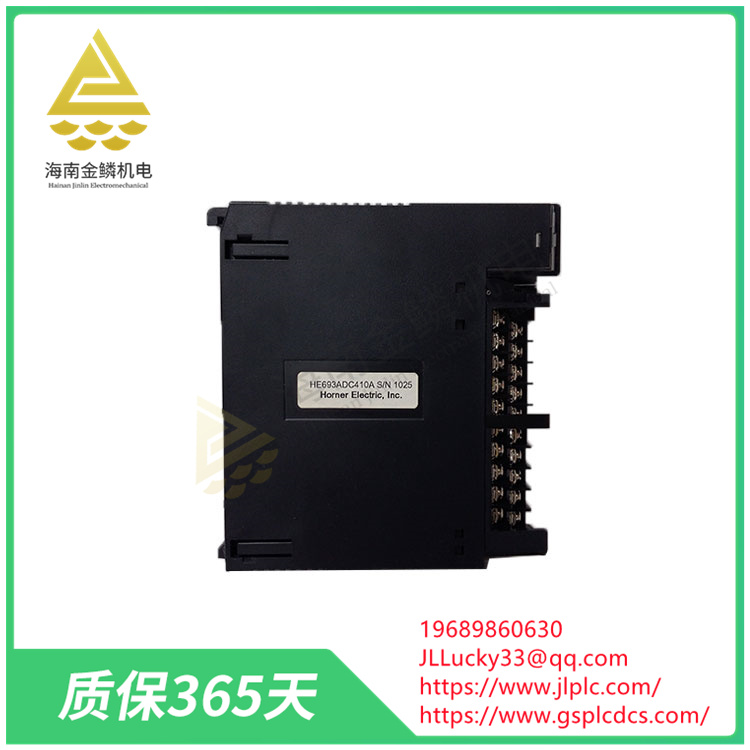

HE693ADC410A isolated analog input module converts voltage input signals to digital values

Model: HE693ADC410A

The HE693ADC410A Horner APG +/-10V isolated analog input module provides four analog input channels with a resolution of 14 bits. Isolation levels for this unit are channel to channel and channel to ground. The module converts the voltage input signal into a digital value (-32,000 to +32,000) that is placed directly into the %AI table of the PLC CPU. Each of the four channels of the module has a programmable set point (its level is set in the PLC program via four %AQ output registers). HE693ADC410A When the analog input value reaches or exceeds the set value, the corresponding digital input %I is energized. The first four %Is represent the four input channel set values alarm.

Steady state power consumption ADC405:.4W / 80mA@5V, 2.16W / 90mA@24V ADC410:.7W / 140mA@5V, 1.2W / 50mA@24V

During power-on, the surge current ADC405:120mA@5V 150mA@24V ADC410:200mA@5V 100mA@24V

Number of channels 4

Requires I/O 4% AI, 4% AQ, 16% I

A/D type, resolution integration, 18 bits

Available resolution 13 bits plus sign

Module update rate 45 channels/second

Digital filter 1-128 samples/updates

Analog filter 1KHz, 3-pole Bessel

Maximum error.05% full scale

Input impedance 1 megohm

Maximum overvoltage +/- 15VDC

Channel to Channel (ADC410) 1500VAC (RMS), +/- 2000VDC

Common model range (ADC410) 1500VAC (RMS), +/- 2000VDC

Interchannel (ADC405) 500VAC (RMS), +/-700VDC

Total model circumference (ADC405) 500VAC (RMS), +/-700VDC

Common mode rejection >100 dB

Relative humidity 5% to 95%, no condensation

Operating temperature 0 to 60°C (32 to 140°F)
