Model: IC660BBD023
Category: Receiver I/O block
Finish: New, not new
Warranty: One year
Brand: GE
Voltage: 24 volts DC
Circuit: 16
Rated load current: 2 amps
Optional input filtering time: 10-100 ms
Heat dissipation: 68.8 watts, 2 amps
Steady state output current: 2 amps
Output OFF leakage current: 1.9 MA
Temperature: 0-60 degrees Celsius

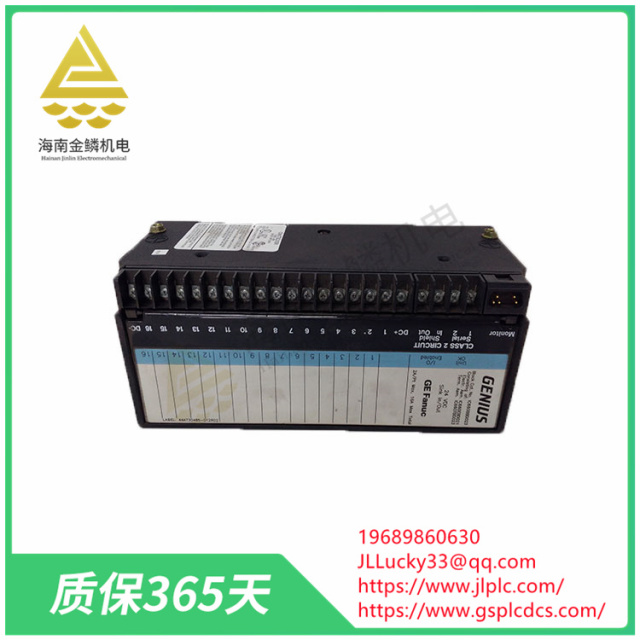

The IC660BBD023 I/O module is the 24 V DC rated I/O module of GE Fanuc. It is UL compliant and complies with different industry standards. It is compatible with 2-wire and 3-wire sensors and is part of the GE Genius I-O PLC system. It is equipped with 16 independent circuits, which can be used as input, output or three-state input. The rated load current of the I/O module is 2 amps. The intelligent I/O device is used to connect to various input and output devices. It is also compatible with DC sensor and actuator devices. The Genius I/O device has an open architecture that should protect against water splashes, dust and air pollutants. It can only be used indoors. The front of the module has LED indicators for monitoring the status of the device and I/O.
