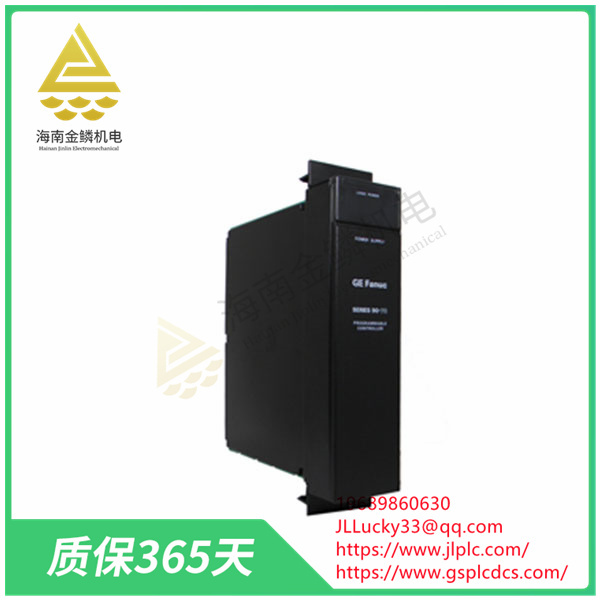

IC697PWR720 | IS420ESWBH3A | Power adapter moduleSeries :90-70 series
Part number :IC697PWR720
Rated voltage: DC 24 ~ 48v
Output current: 2 amps per point, 4 amps per group
Output voltage range: DC 20 ~ 60v
Required current :0.15 amp
Output quantity :16
Isolation voltage :1500 volts
Surge current :20 amps (Max.)20 ms
Response time :2 ms (Max)
Response pause :2 ms (Max)
Output voltage drop: 0.8V / 0.4ohm (Max)
The IC697PWR720 is a 90-70 series power adapter module. The module was previously produced by GE Fanuc and is now being acquired by Emerson Automation. It provides 18 amps of output current and voltage to the frame, such as 5 amps at 18VDC; This is 2 amps at 12 VDC and 1 amp at -12 VDC. The module is a single-slot module installed in a power socket.
Main feature
Efficient conversion: IC697MDL740 uses advanced circuit design and components to achieve efficient energy conversion.
Stable and reliable: stable output voltage and current, small fluctuation, with overvoltage protection, overcurrent protection and other safety functions.
Easy installation: The IC697MDL740 module is small and lightweight, making it easy to install and replace.
Widely applicable: It is suitable for all kinds of equipment that need DC power supply, and has a wide range of application prospects.
