Product Description: Ethernet interface module
Part number: IC698ETM001
Compatible system: RX7i system
Description: Ethernet interface module
Series: Rx7i PAC system
Connector: 10 base T/100 base Tx, RJ 45

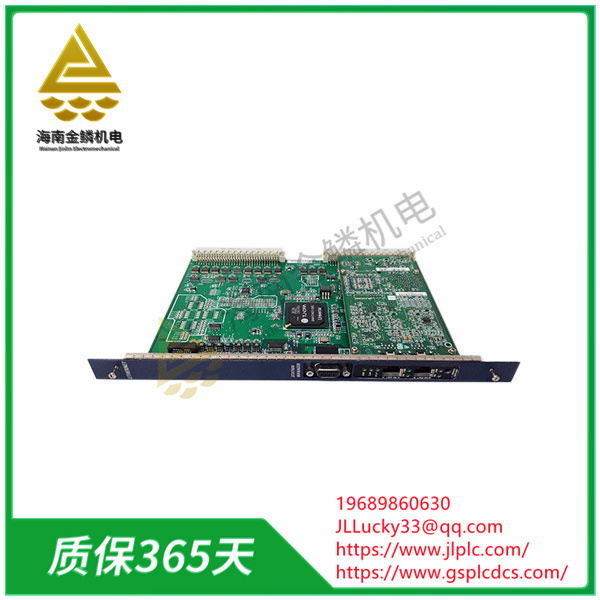

GE Fanuc/Emerson Automation IC698ETM001 is a PACSystem RX7i Ethernet interface module. This module has high performance Ethernet function. The module has two (2) Ethernet communication ports that support 10/100 Mbps communication rates with automatic sensing and one (1) serial communication as a station manager port. It supports TCP/IP communication services using SRTP, SRTP clients, Modbus/TCP servers, and MODBUS/TCP clients.
The IC698ETM001 Ethernet interface module can be divided into various types according to the interface type and transmission media, the most common of which are RJ-45 interface modules and optical fiber interface modules.
RJ-45 Interface module
Features: The IC698ETM001 uses a modular socket and plug design for data transmission via copper cables (such as twisted pair).
Application: Widely used in local area network (LAN) and home network, with simple installation, low cost and other advantages.
Transmission distance: The maximum transmission distance is 100 meters, which is suitable for short distance and low speed network environment.
Optical fiber interface module
Features: IC698ETM001 uses optical fiber for data transmission, with higher transmission speed and longer transmission distance.
Application: It is widely used in data centers, high-speed networks and long-distance transmission scenarios.
Transmission speed: can achieve 1G, 10G or even 40G, 100G and other high-speed transmission.
3. Application scenarios
The IC698ETM001 Ethernet interface module is widely used in a variety of scenarios requiring Ethernet communication, including but not limited to:
Industrial control: PLC Ethernet communication module is used to connect PLC system to Ethernet network to achieve remote monitoring, data acquisition, real-time control and other functions.
