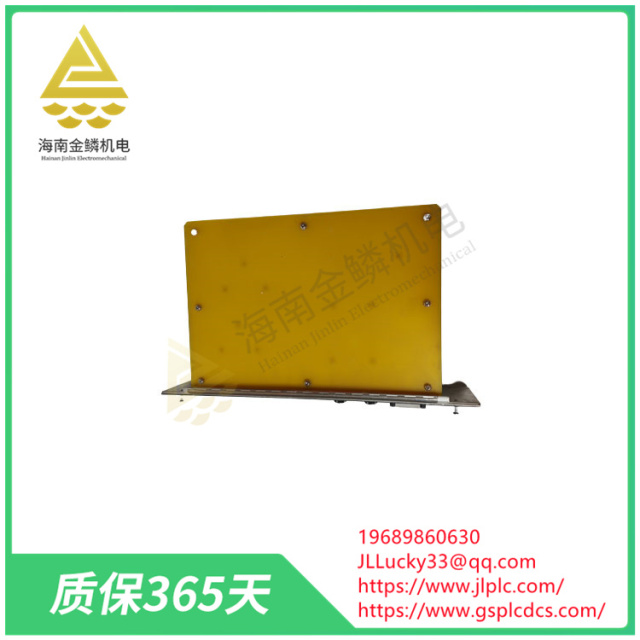

Model: IC698PSA350
Category: Power module
Finish: new, not new
Stock: Yes
Brand: GE
Isolated 1500 volts DC
Overvoltage limit +5 VDC output: 5.7 to 6.7 volts
Output current 5.1VDC: 0-60 amps + 12VDC: 0-12 amps - 12VDC: 0-4 amps
Travel 15 milliseconds
Overcurrent limit +5 VDC output: 66A (typical value); +12 VDC output: 15A (typical); - 12 VDC output: 4.6A (typical)
Output protection voltage; overcurrent
Hold time 5 milliseconds
Time travel minimum 15 milliseconds (from AC input loss)
15 milliseconds in time
Hold time 5 milliseconds
Slot allocation Slot 0
Isolated, input to all outputs 250 VAC continuous; 1500 VAC 1 min
The IC698PSA350 power module is part of the RX7i family and is manufactured by GE Fanuc. The module can send logic level signals to the module through the backplane. It has a rated output of 350 watts. The rated operating voltage is 120/240 volts AC and 125 volts DC. The power module operates at a frequency between 47 and 63 Hertz. The module operates in a temperature range between 0 and 60 degrees Celsius. The power module is equipped with an air flow sensor that can easily detect fan failure or air flow stoppage around the drive. If either happens, the overheated LED will light up. Sensors can be enabled or disabled by using jumpers outside the module. During installation, the GE Fanuc IC698PSA350 power module should not have any live power connection and should be properly grounded. For field wiring, the input terminals are located on the front of the module and can be connected to 120/240 volt AC and 125 volt DC input voltage sources. Terminals can be connected with solid or twisted wires. The ground terminal or GND should be connected to the GND terminal of the rack using 12 AWG cables. During normal operation, the ambient temperature in the installation area should not exceed 60 degrees Celsius. The isolation rating for all outputs is 1500 volts DC. The IC698PSA350 module provides a traverse time of 15 milliseconds and a hold time of 5 milliseconds.
