Model: IS200AEADH4ADA
Category: Circuit board components
Quality: New, not new
Warranty: 365 days
Stock: Yes
Brand: GE
IS200AEADH4ADA technical specification
Series mark VI IS200
Functional abbreviation/abbreviation aead
It weighs about 2 pounds
Product description
The IS200AEADH4ADA is a circuit board assembly manufactured by General Electric as part of its Mark VI Speedtronic system for managing gas and steam turbine systems. The system is also designed for BOP(Plant Balance) control. While the board is no longer manufactured by an OEM, it can still be purchased through AX Control as a new surplus or as restored used stock. Mark VI Speedtronic rack systems typically feature 13 or 21 slot VME arrangements.

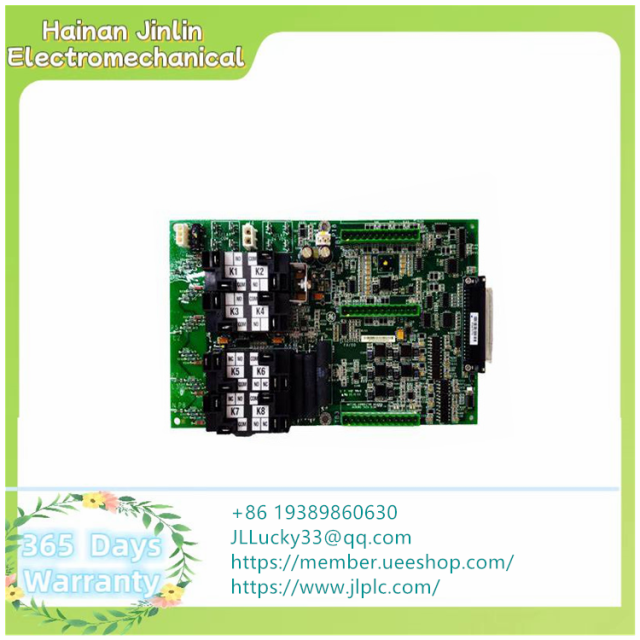

The IS200AEADH4ADA is a rectangular board with no attached front panel. Corner factory manufactured boreholes allow installation options. The board has three vertical pin terminal strips, each with 12 pins. These terminal strips are placed on the board in a parallel manner. Other connectors on the board include plug-in connectors, pluggable connectors, and right-angle connectors located on the right edge of the board.
Other components on the motherboard include two radiator assemblies and eight relays, which are located in a group. There are also wound resistors and other materials made of resistors, capacitors and integrated circuits. Each component on the board is labeled with a separate reference name. The board also carries the GE logo and other codes.
Users can find other important information about the IS200AEADH4ADA through publications such as manuals and user guides provided by original equipment manufacturers.
