Model: IS200EGDMH1ADF
Category: Pulse amplifier circuit board
Finish: New, not new
Stock: Yes
Warranty: One year
Brand :ge
【 Function Description 】
The IS200EGDMH1ADF is a General Electric Mark VI Speedtronic board assembly. Mark VI is used for the management of industrial steam and gas turbines. In order to meet the needs of steam turbines, the system is designed to have the capacity to set up in a simplex or three-mode redundancy form. The board is commonly used in EX2100 excitation systems.

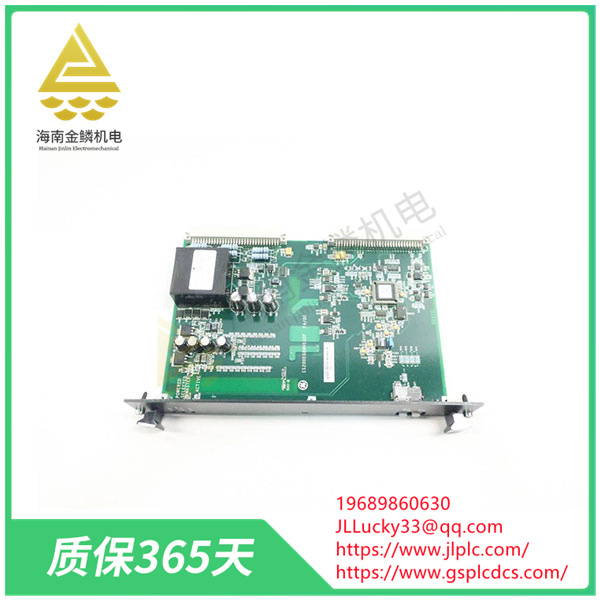

IS200EGDMH1ADF as excitation gate pulse amplifier circuit board. It is used to bridge the power supply to the control system. The IS200EGDMH1ADF also controls the gate emission of the scr on the bridge (up to 6 scr).
The IS200EGDMH1ADF has a row of LED indicators along its leading edge. These leds are used to indicate a variety of things, including cooling fan rotation, alarm and fault status, bridge current and temperature, and output combustion. Other board components include five jumper switches, eight transformers, 13 high-voltage electrolytic capacitors, a coil inductor, and a number of integrated circuits, capacitors, and resistors. The board also has 13 plugs on its surface, including seven two-position plugs, three four-position plugs, one twelve-position plug, and one six-position plug.
More information on the proper handling, installation, or maintenance of the IS200EGDMH1ADF can be found in the documentation originally provided by GE. This includes user guides and manuals. If your publication is no longer available, we can provide a replacement according to your order.
