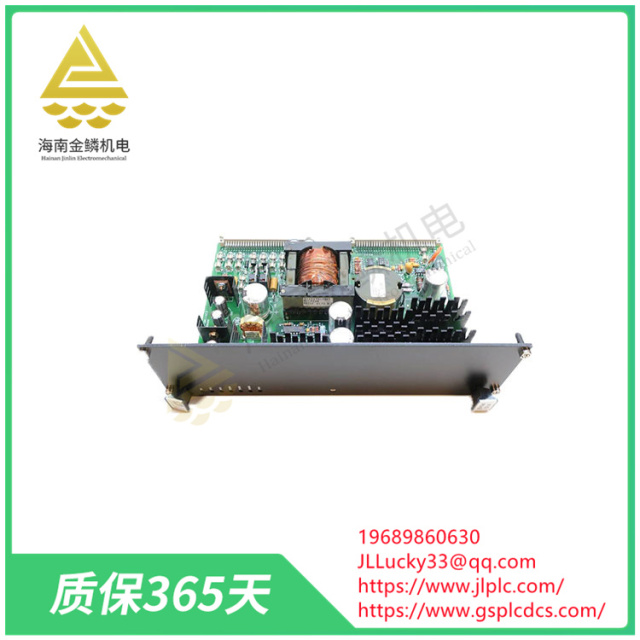

Model: IS200EPSMG1AED
Category: PCB components
Finish: new, not new
Stock: Yes
Brand: GE
Isolated 1500 volts DC
Overvoltage limit +5 VDC output: 5.7 to 6.7 volts
Output current 5.1VDC: 0-60 amps + 12VDC: 0-12 amps - 12VDC: 0-4 amps
Travel 15 milliseconds
Overcurrent limit +5 VDC output: 66A (typical value); +12 VDC output: 15A (typical); - 12 VDC output: 4.6A (typical)
Output protection voltage; overcurrent
Hold time 5 milliseconds
Time travel minimum 15 milliseconds (from AC input loss)
15 milliseconds in time
Hold time 5 milliseconds
Slot allocation Slot 0
Isolated, input to all outputs 250 VAC continuous; 1500 VAC 1 min
【 Function Description 】
The IS200EPSMG1AED is a PCB component of the Mark VI series. The Mark VI is a system manufactured by General Electric for the Speedtronic family, which has been in development and release since the first Mark I Speedtronic system was released in 1969. These gas and steam turbine management systems are becoming more technologically advanced as GE integrates new breakthroughs into their next versions. The Mark VI includes Ethernet communication capabilities and features a PC-based operating interface that runs proprietary software designed specifically for heavy-duty turbine systems, such as simplicity and GE Control System Toolbox.
The IS200EPSMG1AED is a very small component that modifies the power input path of the EPSM(Driver Power module) so that it can accept higher voltages. The IS200EPSMG1AED is also designed to provide a fuse between the regulator and the regulator power supply or DC link. The IS200EPSMG1AED serves as the auxiliary board or sub-board of the EPSM card. It consists of a base plate and a high voltage fuse, which is mounted via a flame resistant inline fuse bracket. The board is mounted to the motherboard using four screws inserted into the bracket. These screws are threaded through four factory holes in the EPSD board. The board has a GE identifier and board ID.
