IS200ERIOH1AAA | IS200SPIDG1ABA | Excitation regulator

Model: IS200ERIOH1AAA
Category: Excitation regulator
Finish: new, not new
Stock: Yes
Brand: GE

Isolated 1500 volts DC
Overvoltage limit +5 VDC output: 5.7 to 6.7 volts
Output current 5.1VDC: 0-60 amps + 12VDC: 0-12 amps - 12VDC: 0-4 amps
Travel 15 milliseconds
Overcurrent limit +5 VDC output: 66A (typical value); +12 VDC output: 15A (typical); - 12 VDC output: 4.6A (typical)
Output protection voltage; overcurrent
Hold time 5 milliseconds
Time travel minimum 15 milliseconds (from AC input loss)
15 milliseconds in time
Hold time 5 milliseconds
Slot allocation Slot 0
Isolated, input to all outputs 250 VAC continuous; 1500 VAC 1 min
【 Function Description 】

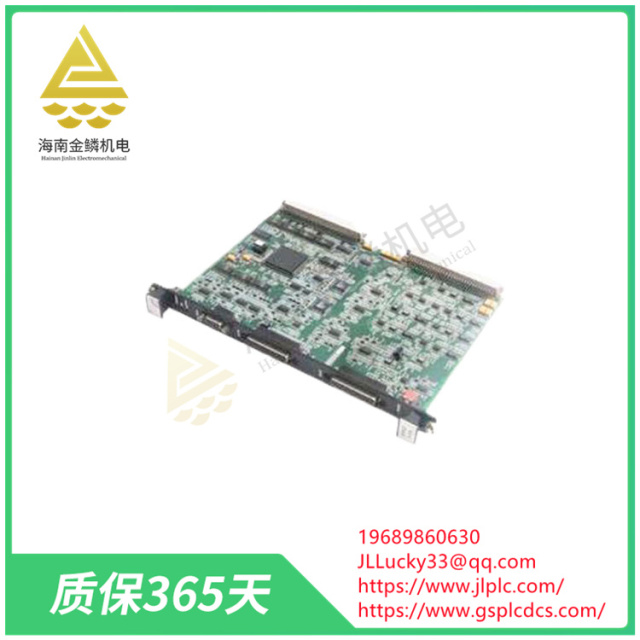

The IS200ERIOH1AAA board is manufactured by GE for the EX2100 excitation regulator and Mark VI series as a whole, providing I/O interfaces for customers and systems. It provides these functions for a simple and redundant regulator control system. For simplex applications, I/O is installed in the ERBP(excitation regulator backplane) and provides the customer I/O signal interface to the ECTBG2 end board and EPCT end board. The IS200ERIOH1AAA is also capable of interconnecting system I/O signals for EROC(Excitation Regulator TAB) and ERDD(Excitation Regulator Interface and Dynamic Discharge). For redundant applications, it also interfaces the ERRR(Field Regulator Redundant Relay) system I/O signals.



The excitation regulator I/O is connected to the EROC and ERDD boards via the ERBP or ERRB backplane, the former for single applications and the latter for redundant applications. In addition, the ERIO is connected to the ERBP and ERRB via two 25-pin connectors, and to the EPCT and ECTB. FPGA(Field Programmable Gate Array) controls the storage and data acquisition to DPM(dual port memory). This particular unit is a revised version of the original part, denoted by the "A" at the end of the model number.
