IS200TBCIH2C | Board components | IS200TRLYH1BGF
Model: IS200TBCIH2C
Category: Board components
Finish: New, not new
Stock: Yes
Warranty: One year
Brand: GE
The IS200TBCIH2C is a single board component produced by GE. This is a small board designed as a terminal board for the Mark VI system. Mark VI is a gas/steam turbine management system released by General Electric as part of the "Speedtronic" series, which began with MKI in the 1960s and continued through MKVI and MKVIe in the 1990s.

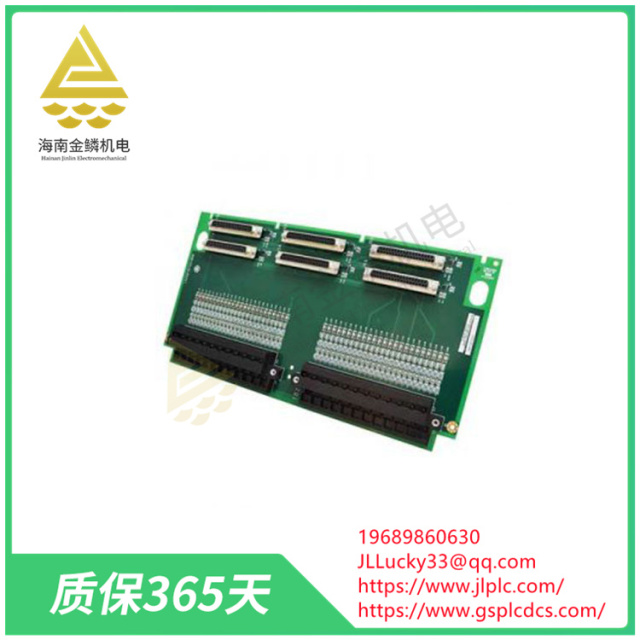

The IS200TBCIH2C is a Contact Input Group Isolation (TBCI) terminal board. The board consists of two terminal blocks and three cable connectors. The terminal block (TB1/TB2) each has 24 screw connections, or 12 contacts. Up to 12 AWG wires are used to connect to these contacts. These boards are barrier type terminal blocks that can be removed from the boards for maintenance. The cable connector is a DC-37(female) connector with a lock. These are labeled JT1/JS1/JR1. The board has two plug connectors for power input. These labels are JE1/JE2. The circuit board is surrounded by a metal frame that includes a shielded terminal strip/bank.
Characteristics and advantages
Modular structure: IS200TBCIH2C modern terminal board adopts modular design, which is easy to install and maintain, and improves work efficiency.
Comprehensive functions: both signal isolation and drive, loop power supply, card power supply, signal indication, alarm indication, loop protection, power protection, signal switching and other functions.
Simplify design and wiring: Solve the differentiation and complexity of external equipment and system card wiring through on-board jumpers, reduce line nodes, and reduce the complexity of construction drawings.
Easy maintenance: The IS200TBCIH2C external terminal is equipped with a pull-out terminal block to facilitate terminal maintenance, and there is no need to remove the cable during terminal board replacement.
Comprehensive protection: Each signal circuit is equipped with a plug and plug convenient insurance, providing a full range of security.
LED indication: The power loop and signal loop are equipped with LED signal indication and insurance fuse alarm, which is convenient for real-time monitoring and maintenance.
