IS210AEPSG1AFCn | IS215ACLEH1AB | Circuit board components

Model :IS210AEPSG1AFC
Category: Circuit board components
Finish: New, not new
Stock: Yes
Warranty: One year
Brand :ge

​​【 Function Description 】
​The IS210AEPSG1AFC is a circuit board component manufactured by GE for the Mark VI system. Part of GE's long-popular Speedtronic series, the MKVI is a management system for heavy-duty steam or gas turbines. This series was produced by GE from 1969 (with the release of the Mark I) through the 1990s (with the release of the Mark VI and the Mark VIe). Mark VI regularly monitors turbines, using application-specific and general-purpose inputs/outputs such as shaft voltage accumulation, temperature issues, flame detection and vibration.

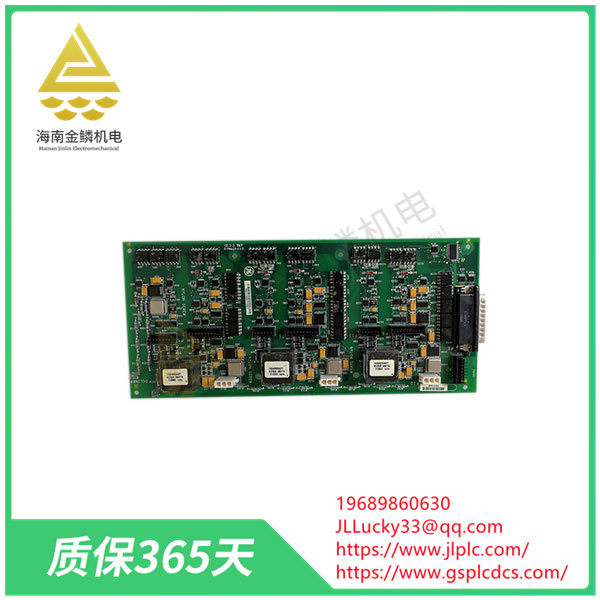

​​​The IS210AEPSG1AFC is a small rectangular board with a large number of components. The board can be used as a power supply board. The plate is drilled at each corner and drilled at several other locations inside the plate. The IS210AEPSG1AFC has components such as transformer, inductor and power supply. The circuit board also has twelve fuses. These are placed on the board as a row of four and four on two. Most fuses are mounted on quick-connect fuse holders.
​​​The IS210AEPSG1AFC has a varistor element. Varistors are variable resistors. There are several metal film resistors on the circuit board. Capacitors on the circuit board include polyester vinyl, ceramic and high voltage electrolytic capacitors. The board includes a plug-in connector, heat sink, plug connector, head connector and LED indicator. Transistors are usually located near heat sinks. The board also uses TP test points and integrated circuits. For more information about the installation process, see manufacturer publications.
