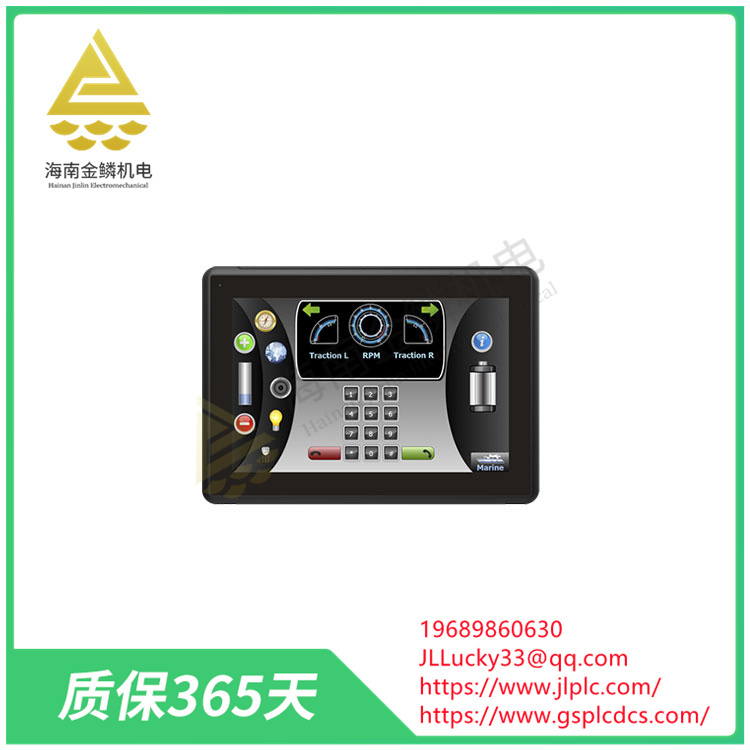

PP875 3BSE092977R1 | Touch panel The touchscreen panel features gorgeous TFT/LED display colors

PP875 3BSE092977R1  |  Touch panel  The touchscreen panel features gorgeous TFT/LED display colors

Model: PP875 3BSE092977R1
Item No. 3BSE092977R1
Category: Touch panel
Finish: New, not new
Warranty: One year
Brand: ABB
dimension
Dimensions W x H x D (mm) 204 x 143 x 50 mm
Opening size W x H (mm) 187 x 126 mm
Installation depth mm. (including clearance) 43 (143)
Mounting panel mounting and VESA 75 × 75
Brightness 350 Kanda/m2
Display resolution, ratio 800 x 480 (16:9)
Processor ARM9 (1 GHz)
Main memory 512 megabytes
External storage media 2 GB (SSD), 1.5 GB of free space for application storage
Dimensions WxHxD (mm) 204 x 143 x 50 mm



Net weight (kg) 0.8
Power Supply + 24 V DC (18 to 32 V DC)
Operating temperature -10 °C to +60 °C
The PP875 3BSE092977R1 touchscreen panel features gorgeous TFT/LED display colors and multi-protocol connectivity. The Panel 800 standard family includes PP875, PP881, PP883, PP886, and PP895, which are easy to use Hmis with comprehensive and integrated templates and libraries for every possible process you need. All standard panels are equipped with high-resolution TFT/LED display graphics. Most models offer wide screens and high-resolution displays for increased efficiency and excellent operator interaction.
Characteristics and advantages
Easy to use
PP875 3BSE092977R1 A fully deployable human machine interface with comprehensive and integrated templates and libraries for every possible process. The Panel Builder tool features the familiar Microsoft® Windows® environment and multiple language support for fast, simple, and efficient engineering.
State-of-the-art graphics
Vector-based high resolution graphics with TFL/LED display with icon-based interface, navigation and control.
Solid and reliable
The Panel 800 is made with a robust and lightweight die-cast powder-coated aluminum housing. The front housing can withstand wet, dusty and harsh environments. The operating temperature ranges from -10° C to + 60° C with a maximum humidity of 85%.
A truly open platform
These panels are built on the open architecture and technology that comes with the.NET framework, enabling multi-brand controller connectivity. There are a variety of connection options available for local communication, extension, remote access, and more.
Try it out before you use the app
Applications can be simulated and run directly from Panel Builder 800 before use.
