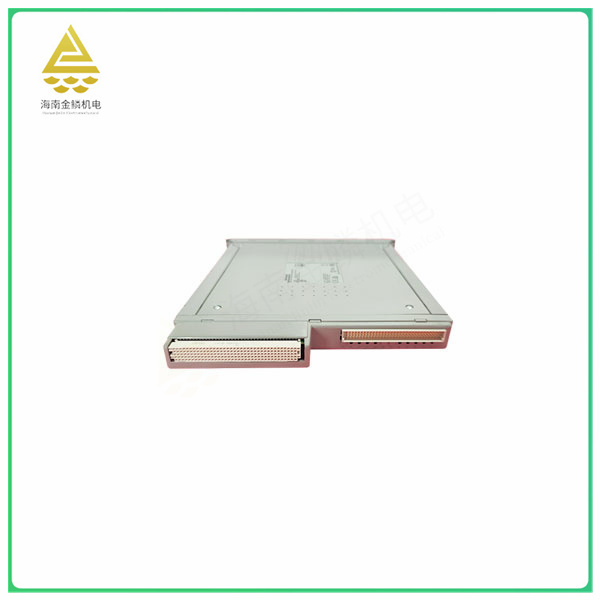

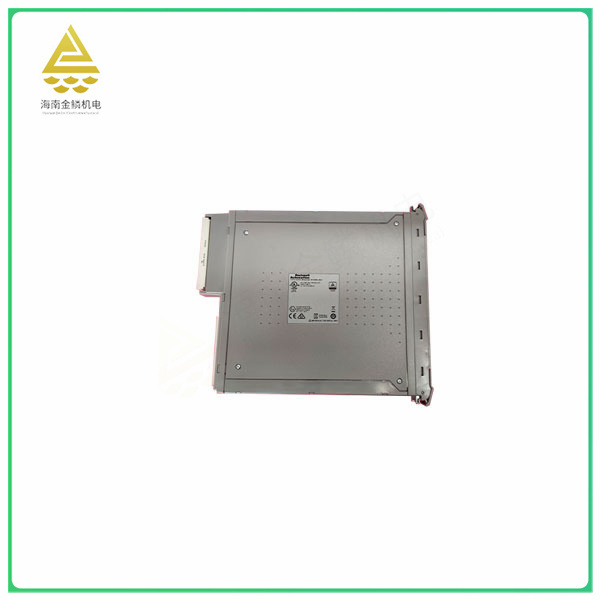

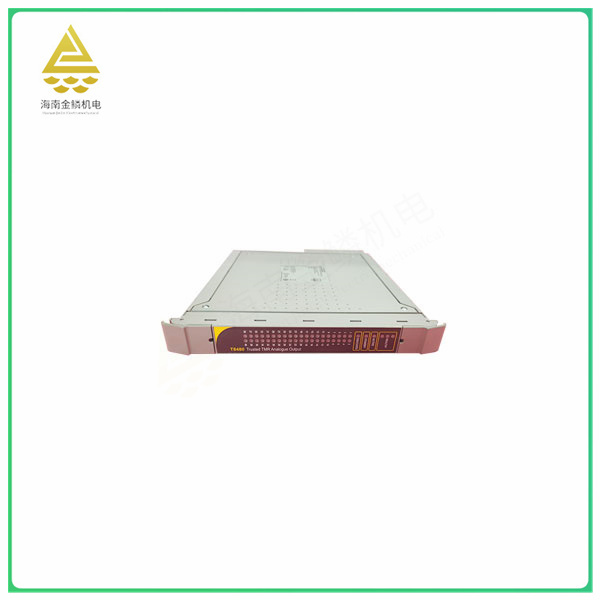

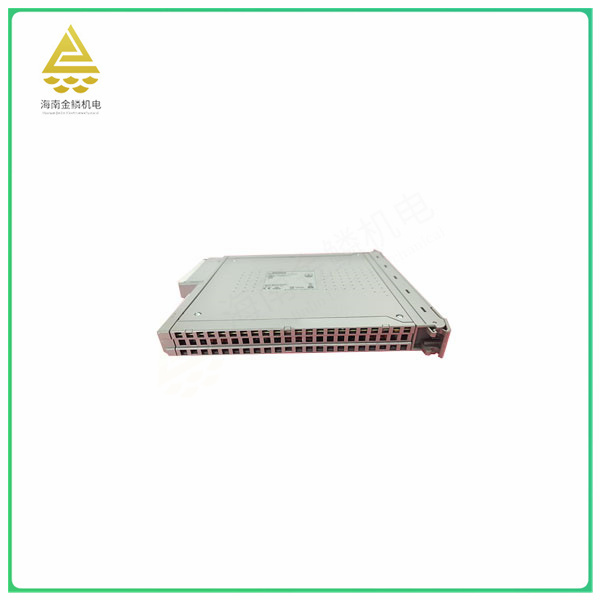

T8480C Trusted TMR analog output module Improve system reliability and anti-interference ability

No.T8480C
The T8480C is a trusted TMR analog output module manufactured by IC Triplex. It is an analog output module based on TMR (Trusted TMR) effect, which is used to transmit spin polarization current to ferromagnetic materials, so as to realize the control and measurement of spin polarization. The T8480C has 40 points, each of which can be used as a separate analog output.
  • T8480C   Trusted TMR analog output module   Improve system reliability and anti-interference ability
  • T8480C   Trusted TMR analog output module   Improve system reliability and anti-interference ability
  • T8480C   Trusted TMR analog output module   Improve system reliability and anti-interference ability
  • T8480C   Trusted TMR analog output module   Improve system reliability and anti-interference ability
Desciption
The T8480C is an analog output module mainly used to drive hardware output and related data paths. It can select the current set value according to the operation mode, and reverse it as needed and provide the result to the hardware output or software output.

The T8480C module can be set to the automatic mode of CAS_IN and RCAS_IN, and output the set value after selecting CASIN, SPLOCAL (local setting) and RCASIN and feedback values by SPSELECTOR. In order to avoid drastic changes in the set value SP, the T8480C also has a rate limiter, which limits the rate of SP.
The T8480C is a trusted processor module with the following functions and application areas:
40 three-module redundancy (TMR) output points per module.
Comprehensive, automated diagnostics and self-tests.
Automatic line monitoring at every point to detect open and short field wiring and loading errors.
Resistance to 2500 V pulsed optical/electrical isolation barrier.
Automatic overcurrent protection (per channel), no external fuse required.
Airborne Event Sequence (SOE) report at 1ms resolution.
T8480C focuses on steel mills, power plants, cement, chemical industry, paper making, CNC machine tools and other industries. In practical applications, the T8480C can improve the reliability and anti-interference ability of the system, and is suitable for areas with high reliability requirements.

The T8480C is a processor module commonly used in industrial automation and control systems, as well as security systems. With its powerful processing power and flexible configuration, it is able to perform a variety of control and monitoring tasks to ensure the safe and efficient operation of industrial processes.
In terms of industrial automation and control systems, the T8480C can be used for control systems in chemical, oil, gas, electricity and other fields to perform real-time control and monitoring tasks. It can receive a variety of analog and digital input signals, process data and carry out corresponding control output to realize the control and monitoring of automated production processes.

In terms of safety systems, the T8480C can be used in safety-critical systems such as emergency shutdown systems (ESD), fire gas detection and high-temperature protection systems. In these systems, the T8480C can participate in the execution of critical safety logic, ensuring that in the event of an emergency, the necessary measures can be taken quickly and reliably to ensure the safety of personnel and equipment.
In addition, the T8480C also has fault tolerance, comprehensive diagnosis, monitoring and testing functions, which can quickly identify faults and deal with them accordingly to ensure system availability and stability.
