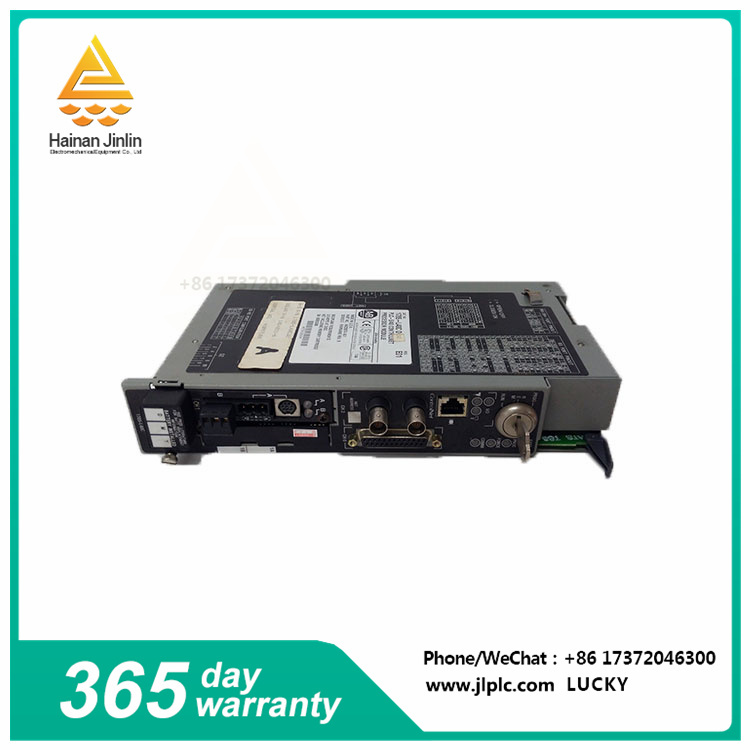

The 1785-L40C is a ControlNet-enabled PLC-5/40C processor manufactured by Allen-Bradley (part of Rockwell Automation) for industrial automation applications. Here is a breakdown of its main features and functions:
Features:
The 1785-L40C acts as the central processing unit (CPU) for the PLC-5 control system.
It reads input signals from sensors and switches connected to the system.
It is based on user-written programs that process these signals and generate control signals to actuators (such as motors, valves) to automate various industrial processes.
The ControlNet feature allows the 1785-L40C to communicate with other devices on the ControlNet network, enabling data sharing and distributed control in larger automation systems.
Specifications:
Manufacturer: Allen-Bradley (Rockwell Automation)
Product Number: 1785-L40C
Processor: 48K Word SRAM
Communication: ControlNet phase 1.25
I/O capacity: Additional I/O modules are required to connect sensors and actuators (not included in the CPU)
Programming: Requires Rockwell Automation Programming software (RSLogix 5000)
Applications:
The 1785-L40C is used in a variety of industrial automation applications, including:
Manufacturing: Machine control, assembly line, material handling
Building automation: HVAC control, lighting control, security system
Food and beverage processing: delivery systems, packaging machinery, filling lines
Power generation and distribution: generator control and monitoring systems
