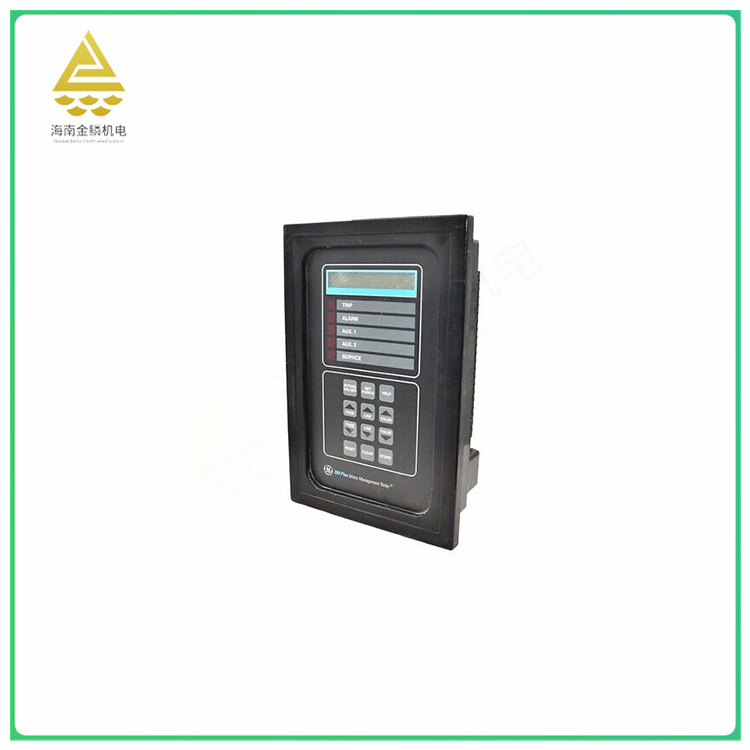

The 269PLUS-100P-HI is a motor management relay manufactured by GE Multilin. Here is some information about the relay:
Specification: The relay is 100 ohms and has a platinum resistance temperature detector.
Dimensions and weight: The shipping box measures 11.40 "x 7.50" x 16.00 "(W x H x D) and the shipping weight is 7.75 lb.
Operating environment: The ambient temperature of storage and operation must be between -25°C and 60°C.
Inputs: Inputs on this relay include instrument communication ports, alternate inputs, differential relay inputs, speed switch inputs, programmed access jumper or key switches, external reset buttons, emergency restart key switches, 6 stator RTDS, etc.
Usage: Mainly used to protect the safety of operators and equipment on the motor, accessories and so on, widely used.
The 269PLUS100P-HI is a motor protection relay system in GE Multilin's 269PLUS series of motor protection systems. The following are its main functions and features:
The 225 option code is configured, which provides more programmable functionality for the relay.
Phase and ground CT is supported, which helps detect motor operating status and faults.
The fail-safe code shows that the trip is NFS, the alarm is fail-safe (FS), Aux1 is NFS, and Aux2 is FS. These codes provide the operator with important information about the status of the relay.
The NC, NO, and NO permutations are specified for Alarm, Aux1, and Aux2, which gives the operator more control options.
Users can choose from up to eight programmable overload curves, which gives manufacturers greater flexibility to customize the curves to specific motor needs.
The operator can customize the curve for the motor by entering the service factor as the overload start level, a feature called the FlexCurve(TM) function.
