Brand: Alan Bradley
Part Number/Catalog Number: Number: 2711-K10C1
Product line: Panel View 1000
Weight: 3.7 kg (8.2 lb)
Input power: 85-264 volts AC
Memory: 256 kilobytes
Case type: NEMA 12/13 or 4X

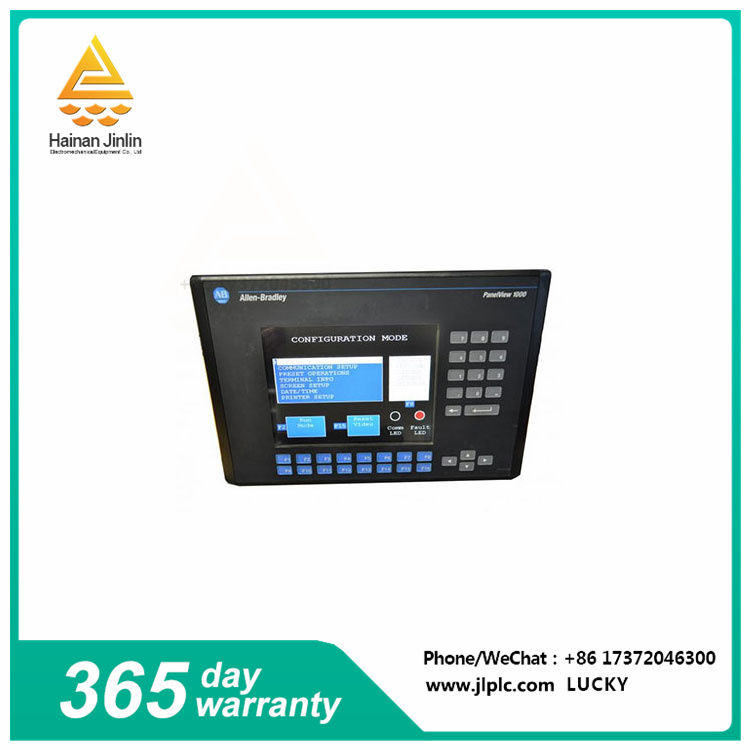

The Allen-Bradley 2711-K10C1 is a PanelView standard operating terminal. It specifically falls under the subcategory PanelView 1000 and features a 10-inch color active matrix TFT screen, keyboard user interface, and remote I/O communication port. These built-in features enable the device to act as a human machine interface (HMI), providing operators with centralized monitoring and control of the plant floor area.
The 2711-K10C1's color display allows for the creation of detailed process simulations with color-coded designs and animations. This feature provides additional information such as easy identification of the type of material flowing in the pipeline, identification of process areas, identification or process alerts and events, and other relevant status. The display has an effective display area of 211 x 158 mm (8.3 x 6.2 inches) and a resolution of 640 x 480 pixels.
In order to connect with a process or machine, the control can be initiated with sixteen (16) function keys, and the F1 to F16 is fully programmable for both local and global distribution. The function key is a stainless steel dome membrane with a drive life of 1 million cycles.
For data exchange, the 2711-K10C1 has an embedded remote I/O (RIO) interface port that supports a Daisy chain architecture. It also has an onboard RS232 communication port for sending the print queue to the alarm printer for alarm recording.
The 2711-K10C1 terminal features a 10-inch color display and a keyboard assembly consisting of function keys and navigation buttons. The terminal supports 32 standard colors and has a 640 x 480 resolution. It measures 11.11 x 16.64 x 4.40 inches. It weighs 8.2 pounds. It has 1008 KB of non-volatile memory, 310 KB of RAM, and 85-264 V AC input voltage. For communication, it has a remote I/O communication port and an RS232 printer communication interface. The 2711-K10C1 is available in housing grades NEMA 12/13 or 4X housing for indoor use only.
The 2711-K10C1 supports advanced alarm handling to store information and is equipped with an RS-232 port for online printing. It also supports a variety of general-purpose languages. Other features include analog meters, screen security and memory card support for better control. The 2711-K10C1 has a variety of ports for connecting scanners, PLCS, SLC or Logix controllers.
