Desciption

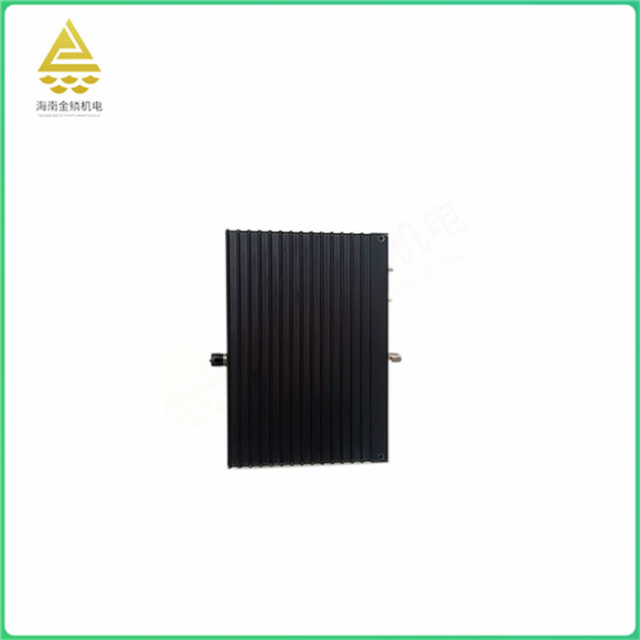

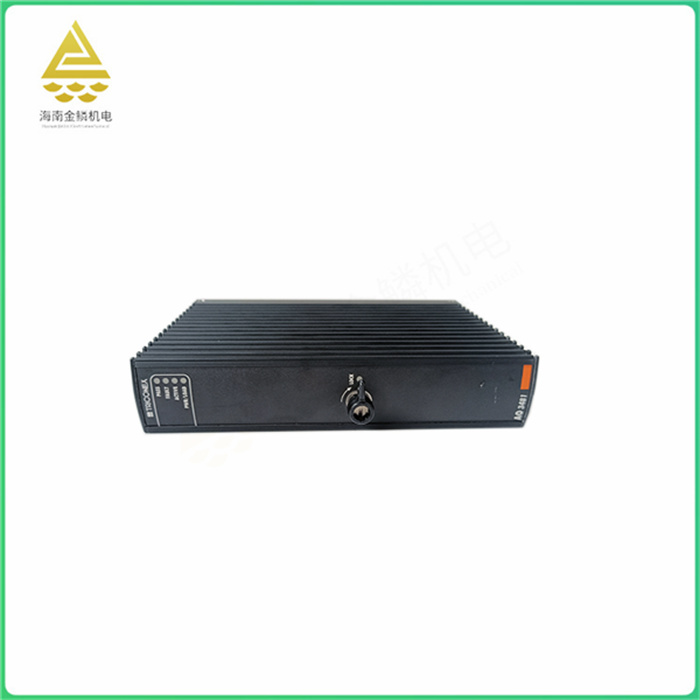

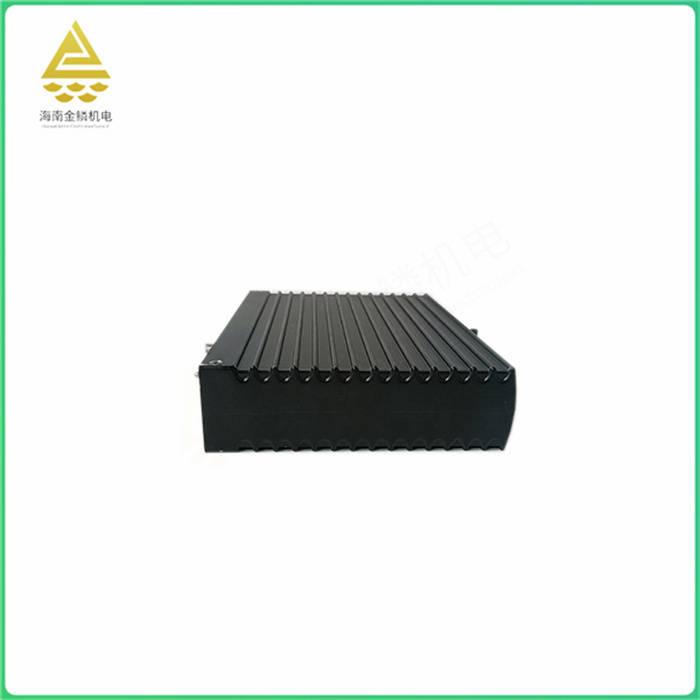

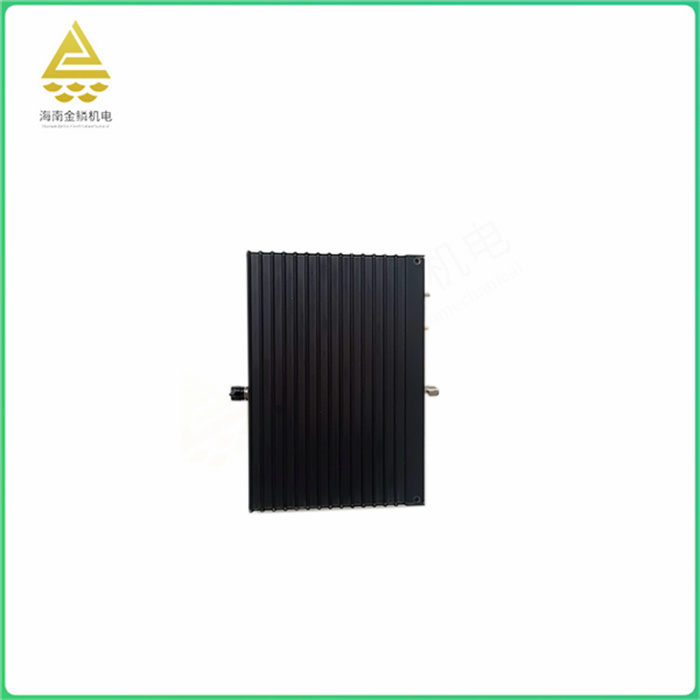

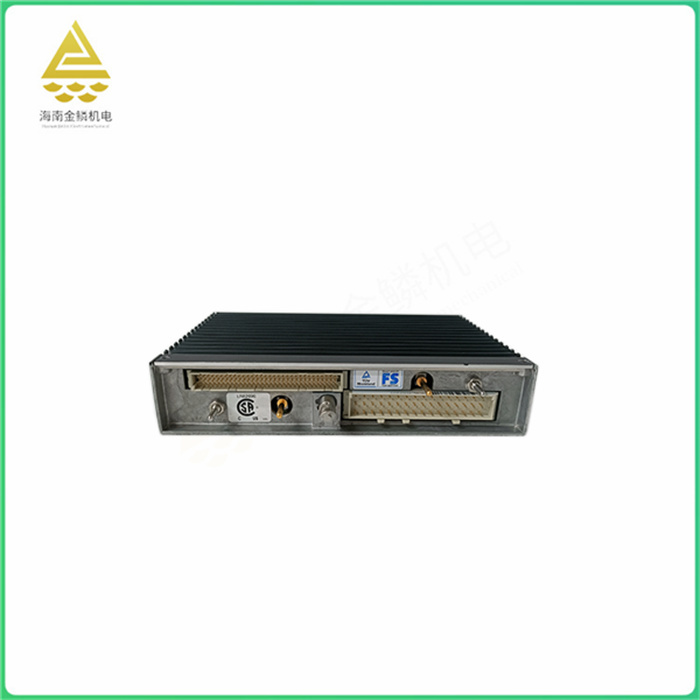

The TRICONEX 3481 module is a high-performance module designed specifically for I industry control applications. It provides
Reliable and secure communication between various control devices.
Product parameters:
- Input voltage :24V DC
Output voltage :24V DC
- Operating temperature: 40°C~ 70°C
Communication protocol :Modbus TCP/IP
Overall dimensions :100mm x 50mm x 25mm
The TRICONEX 3481 is a controller with the following features and functions:
1. Start and stop for -key, manual and automatic two control modes, and can be freely converted.
2. Screen display contents include: current temperature air oil [opening, target value display, fault self-diagnosis, etc.
3. In the manual control state, it can independently control the fan, oil pump, throttle large, throttle small, damper large, damper small, electric ignition, solenoid valve and other equipment.
4. The temperature control can ensure that it is within the range of the target value +3°C, and has overtemperature alarm protection measures (alarm temperature can be freely set by the user).
5. The controller is equipped with computer communication interface, which can operate with asphalt mixer online.
6. The controller contains temperature, flame and other sensors and their detection systems.
7. There are 2 analog letter dinnerless output, signal type 0-20 MA, using 12 digit numerical counting.
8. With 8 point switching quantity input and 8 point switching quantity output.
9. With a ladder diagram programming interface, can be connected to the computer or human-machine interface.
10. In addition, there are some connection mode information, such as throttle control valve connection: AY1+, AY1- (4~20mA) a D21, fan control connection: Y0.
A controller is a device used to control machinery or systems, and its characteristics include the following aspects:
Change the wiring of the main circuit or control circuit and change the resistance value in the circuit according to the predetermined sequence to control the motor starting, speed regulation, braking and reverse master device.
Composed of program counter, instruction register, instruction decoder, timing generator and operation controller, it is a "decision mechanism" that issues commands, that is, to complete the coordination and command of the operation of the entire computer system.
Receive the operation command from the operation controller and perform the corresponding action.
The controller has programmable function and can be programmed according to different control requirements to achieve different control logic.
The controller has high reliability and can work stably under harsh environmental conditions.
The controller is maintainable for easy troubleshooting and maintenance.
The controller is user-friendly and can be operated and controlled through a visual interface.
The controller is scalable and can be expanded and upgraded according to actual requirements.
The controller has a self-diagnosis function, which can detect its own fault and give an alarm.
The controller is customizable and can be customized according to different application scenarios.
