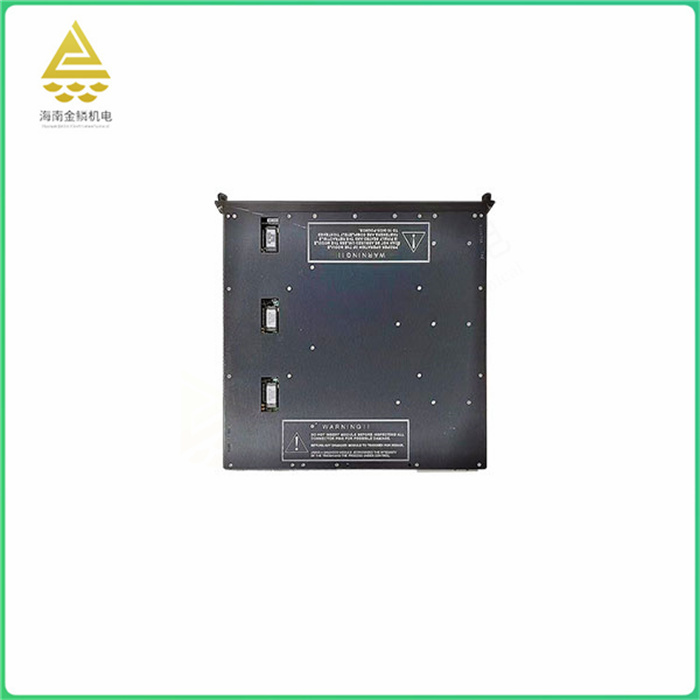

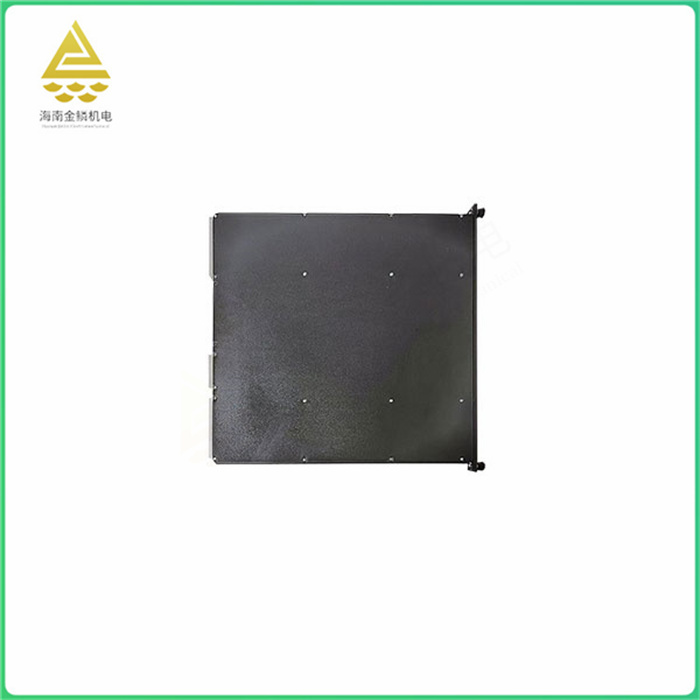

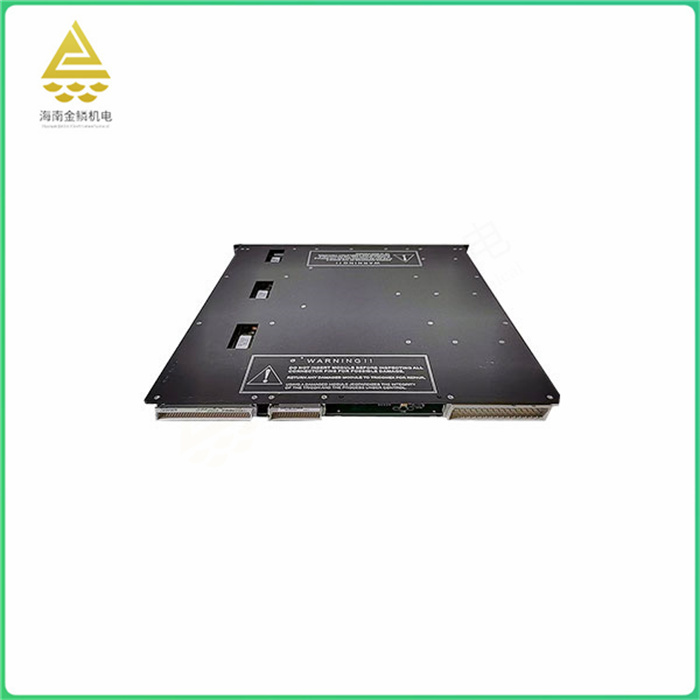

Description: The TRICONEX 3806E module is a high-performance programmable logic controller (PLC) module designed for industrial automation systems. It provides reliable and secure control of critical processes in a variety of industries, including oil and gas, power generation and manufacturing.
Product parameters:
One input voltage :24V DC
- Output voltage :24V DC
Communication protocol :Modbus TCP/IP
A working temperature: 40°C~ 70°C
Overall dimensions :100mm x 120mm x 50mm
The Programmable logic controller (PLC) module is a digital operational electronic system designed specifically for use in industrial environments. It uses a microprocessor, has a variety of input/output modules, can achieve logic control, timing control, analog control, multi-computer communication and other functions.
PLC module is usually composed of CPU, instruction and data memory, input/output interface, power supply, digital analog conversion and other functional units. Among them, the input/output module is the interface between the PLC module and the outside world, which can receive and output various signals through various input modules (such as photocouplers, leaky input modules, etc.) and output modules (such as relay output modules, transistor output modules, etc.).
According to the different input/output points, PLC modules can be divided into small PLC, medium-sized PLC and large PLC. Small PLC with a small number of input/output points, suitable for simple control tasks; Medium-sized PLC with medium input/output points, suitable for more complex control tasks; Large PLCS with a large number of input/output points are suitable for complex control tasks.
The application of programmable logic controller (PLC) module is very wide, including but not limited to the following aspects:
Sequence control: PLC module can be used to achieve sequence control, that is, to control the equipment in a certain chronological order or logical order. For example, in the production line, the PLC module can control the order and time of action of the robot arm, conveyor belt and other equipment.
Process control: PLC module can be used to achieve process control, that is, to control physical quantities such as temperature, pressure, and liquid level. For example, in chemical production, the PLC module can control the temperature, pressure and other parameters of the reactor to ensure the quality and output of the product.
Motion control: PLC module can be used to achieve motion control, that is, to control the position and speed of actuators such as motors and hydraulic cylinders. For example, in the field of robotics, PLC modules can be used to control the trajectory and speed of the robot.
Data processing: PLC module can be used to achieve data processing, including data acquisition, operation, storage and other functions. For example, in the field of intelligent manufacturing, PLC modules can be used to collect a variety of data from the production line, and process and analyze it to improve production efficiency and product quality.
Communication function: The PLC module can communicate with other devices, such as data exchange and transmission of control instructions with the host computer, sensors, etc. This allows the PLC module to be integrated and controlled with other systems to achieve more complex control tasks.
In short, programmable logic controller (PLC) module is a digital operation electronic system widely used in the field of industrial automation, it has a variety of functions and application scenarios, can meet a variety of different control needs.
The Programmable Logic Controller (PLC) module has the following main functions:
Logic control function: PLC module uses AND, OR, NOT commands to replace the series, parallel and other logical connections of relay contacts to achieve logic control, switch control and sequence control.
Signal acquisition function: PLC module can collect analog signals, digital signals and pulse signals.
Output control function: PLC module can output digital signals, analog signals and pulse signals to control external solenoid valves, indicators and other equipment.
Data processing function: PLC module can carry out data transmission, data comparison, data conversion, data shift, arithmetic operations and other operations, and some can also carry out floating point operations.
Timing and counting function: The PLC module can perform timing or delay control, and the time can be accurate to milliseconds. Pulse can be counted up and down.
Remote input/output function.
Man-machine interface function.
Fault self-diagnosis function: PLC module can self-diagnose system configuration, hardware status, instruction legitimacy, network communication, etc.
Communication networking function.
Real-time communication and redundant backup functions.
The above information is for reference only. If necessary, you are advised to consult the PLC module engineer.
