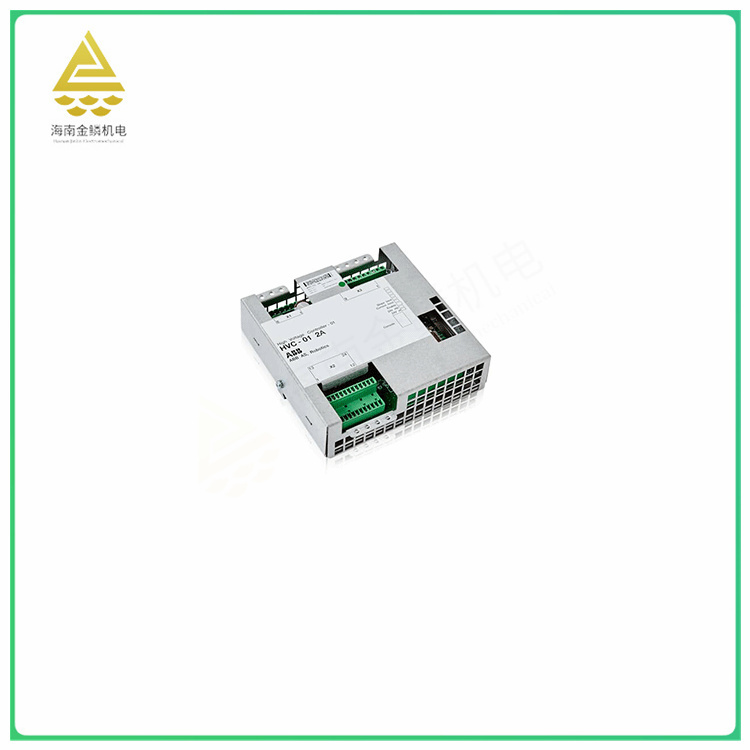

3HNA024966-00103 is a robot control card module produced by ABB, mainly used in ABB industrial robot systems. This module plays an important role in the field of industrial automation and manufacturing, supporting the control and monitoring functions of robots for assembly, welding, handling and other applications.
Specifically, the 3HNA024966-00103 control card module has a variety of features:
Compatibility: Supports 802.3u, 802.3U and 802.3x standards, has 10/100 copper base interface, and supports automatic negotiation function.
Network features: Full duplex/half duplex auto-negotiation, and 100 Mbps FX uplink port. In addition, it has HP -MDIX automatic sensing to indicate link status, active and duplex status, as well as the speed of each port.
Redundant power input: The module supports redundant power input, through diodes or other means.
Storage and processing capabilities: Three processors are built into the module to store and execute applications, scan and update I/O modules, and detect faults or anomalies in the system.
In addition, 3HNA024966-00103 has other features such as a minimum buffer size of 256 KB, support for 4K Media Access control (MAC) addresses, and more. These characteristics enable the control card module to process data and control signals efficiently, ensuring stable operation and efficient operation of industrial robots.
3HNA024966-00103 Robot control card module is an important part of the robot system, it is responsible for controlling the robot's actions, sensing the environment and communicating with other devices. Different robots may use different types of control card modules, and the specific functions and characteristics will be different.
In general, the 3HNA024966-00103 robot control card module may contain the following parts:
Processor: Responsible for executing the robot's control algorithms and tasks.
Sensor interface: 3HNA024966-00103 is used to connect various sensors, such as position sensors, force sensors, vision sensors, etc., to obtain the status and environmental information of the robot.
Driver interface: 3HNA024966-00103 Connects the robot's drivers, such as motor drivers, cylinder drivers, etc., to control the robot's actions.
Communication interface: Communication with other devices, such as data exchange with upper control systems, other robots, or external sensors.
Storage unit: 3HNA024966-00103 Used to store robot programs, parameters, and data.
Working together, the 3HNA024966-00103 enables the robot to complete a variety of tasks and show a high degree of flexibility and adaptability in different application scenarios
