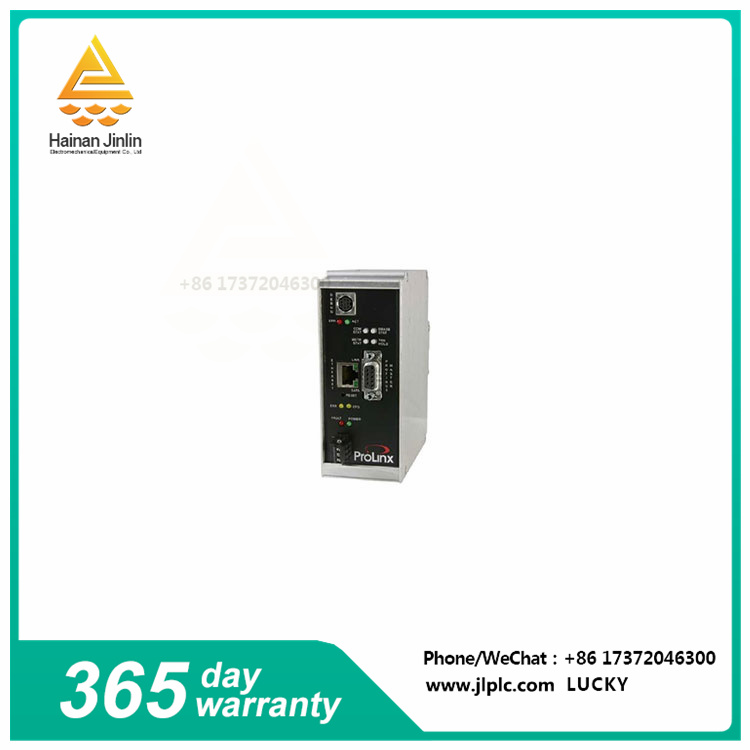

ProLinx DNP over Ethernet to PROFIBUS DP Slave Gateway Creates a strong connection between devices on the DNP over Ethernet network and PROFIBUS master devices. This standalone DIN rail mounted protocol gateway offers an Ethernet port and a PROFIBUS DP slave configurable DB9F port.
The ProLinx module supports the DNP 3.0 protocol as a server using TCP and UDP protocols, using service port 20000. This port is fully configurable.
The PROFIBUS DP Slave protocol driver supports the PROFIBUS V0 Slave implementation, providing powerful data transfer between the ProLinx module and Siemens PLC or other hosts. User-configurable data mapping and DP port operations make the interface an easy-to-use and powerful data transfer tool.
The DNPSNET-PDPS module is the ideal solution for many applications where DNP over Ethernet connections can be used to integrate PROFIBUS DP master devices into the system. The DNP over Ethernet gateway is a powerful module that supports both clients and servers and can easily connect to other DNP devices. Combined with PROFIBUS DP slave station support, this module provides a very powerful interface to many PROFIBUS master station devices used in today's industrial markets. The module has applications across most industries, especially manufacturing, oil and gas, power and food processing.
