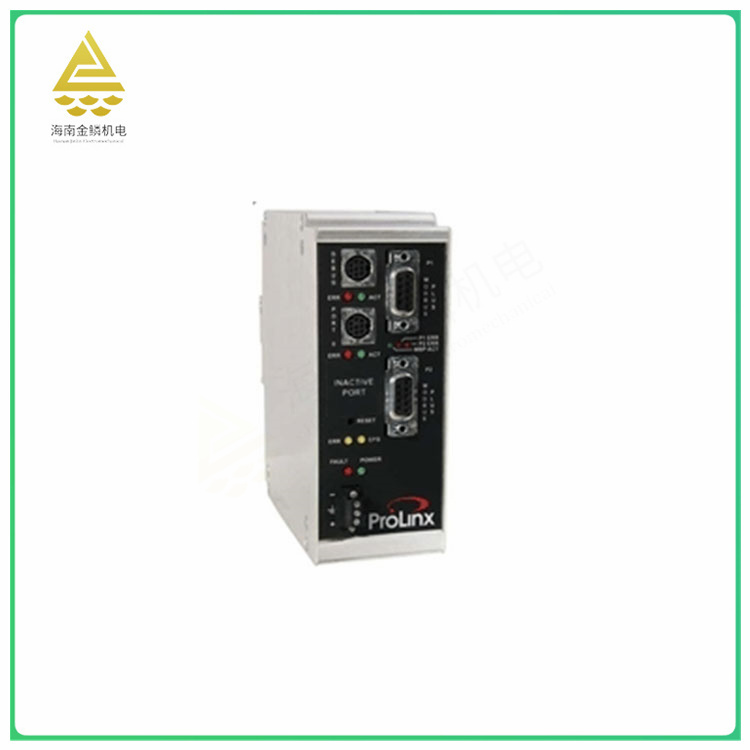

5301-MBP-DFCM PROSOFT Redundancy module Product parameters Communication Protocol: Modbus Plus Communication Rate: 57.6kbps Power Supply: 24V DC Operating Temperature range: -40°C to 85°C Size: 120mm x 70mm x 25mm
The 5301-MBP-DFCM is a protocol gateway module specifically designed to establish a strong connection between the Modbus Plus network and DF1 dependent devices. It is a standalone DIN rail mounted protocol gateway with a configurable Modbus Plus DB-9F port and up to four configurable serial ports.
Regarding the Modbus Plus section, this module provides a fully configurable port that supports the implementation of two hosts and slave devices on DB9. On the other hand, the DF1 protocol driver supports host or slave implementations on each DF1 port, and all DF1 ports can be configured individually.
In addition, the 5301-MBP-DFCM module is particularly suitable for applications where DF1 devices need to be integrated into Modbus Plus systems. This module is designed with server support and can be easily connected to Rockwell Automation PLC equipment such as CLX, SLC, PLC, CPLX, etc.
In terms of technical specifications, the module supports 18 to 32v DC power supplies with a maximum current load of 500mA, an operating temperature range of -4 °F to 122 °F (-20 °C to 50 °C), and a storage temperature range of -40°F to 185°F (-40°C to 85°C).
Therefore, the 5301-MBP-DFCM is a powerful module suitable for a variety of industrial automation environments, especially in the manufacturing, oil and gas, power, and food processing industries.
The advantages and disadvantages of 5301-MBP-DFCM are analyzed as follows:
Advantages:
Powerful connectivity: The module is the ideal bridge between Modbus Plus and DF1 devices, allowing users to seamlessly integrate DF1 devices into the Modbus Plus network, thus simplifying the system integration process.
High degree of flexibility: The module provides configurable Modbus Plus and DF1 ports, which can be flexibly configured according to actual needs to meet different application requirements.
Extensive compatibility: The 5301-MBP-DFCM is compatible with a variety of Rockwell Automation PLC devices, such as CLX, SLC, PLC, CPLX, etc., making it suitable for use in a variety of industrial automation environments.
Powerful features: As a stand-alone DIN rail mounting protocol gateway, the module offers high processing power and stability to meet complex industrial automation requirements.
Cons:
High cost: Because the 5301-MBP-DFCM is a high performance, high reliability module, it is relatively high cost and may not be suitable for users with limited budgets.
Technical complexity: While the module offers powerful features, configuring and using the module can be somewhat technically challenging for users unfamiliar with Modbus Plus and DF1 protocols.
Reliance on technical support: In some cases, users may need to rely on the manufacturer's technical support to resolve some technical issues or troubleshoot. This can take time and communication costs.
