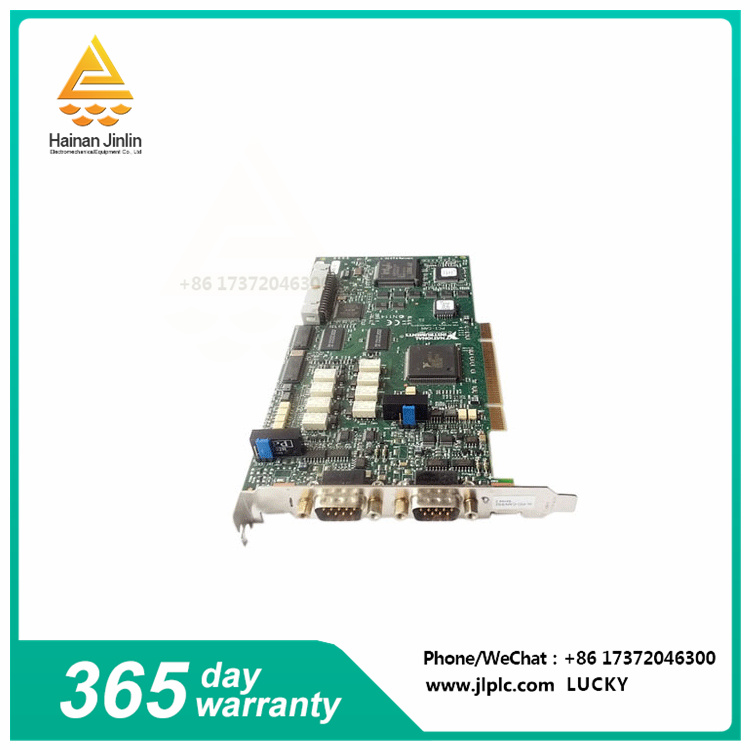

This PCI-CAN/XS2 is the software optional CAN interface device developer's national instrument. The part number of the PCI-CAN/XS2 CAN interface device is 778782-02. This PCI-CAN/XS2 has a difference
Types of transceivers, including high speed and low speed transceivers. This feature makes PCI-CAN/XS2 compatible with high - and low-speed CAN devices. This PCI-CAN/XS2 can also interface with single-wire CAN devices. This type
The Philips SJA1000 CAN controller offers advanced features. It supports different filtering modes, including self receive and listen only. The device also has trigger and sync functions, which allows this model to
Easily sync with different PCI devices.
This PCI-CAN/XS2CAN interface device has dual ports. These connectors are 9-pin male D-SUB connectors. Install a connector on each channel. This PCI-CAN/XS2 comes with three transceivers
Devices :TJA1041, TJA1054A and AU5790. Select the desired transceiver through the software. This PCI-CAN/XS2 also offers the option of using an external transceiver. Software can bypass installed sending and receiving
To select External mode (EXT). The maximum transfer rate of this model is 1000 kb/ s. Typical currents up to 900 mA. The /0 channel of the device operates at +5 VDC.
This PCI-CAN/XS2 is compatible with many arbitration IDs, such as standard and Exhibit CAN IDs. This PCI-CAN/XS2 CAN interface device uses an Intel 80386EX microprocessor to transmit time frames. the
The model also offers 500 V optical isolation. The supported operating system PCI-CAN/XS2 is Windows and LabVIEW RT. ThePCI-CAN/XS2 comes with NI-CAN driver software, with
Compatible with LabWindows, C, C+ + and Visual Basic.
