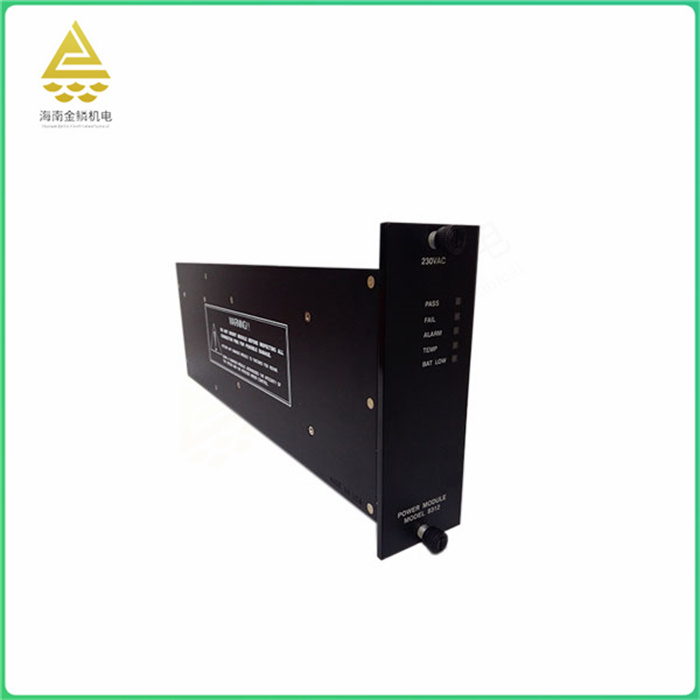

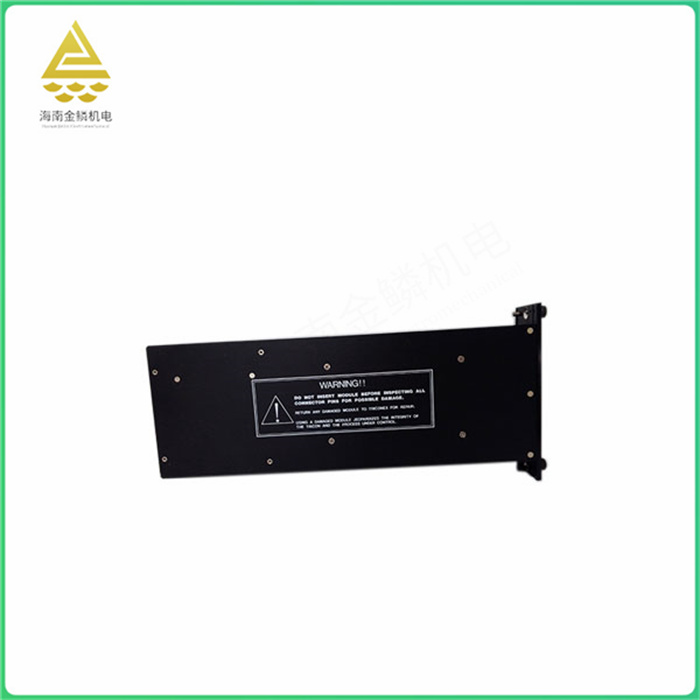

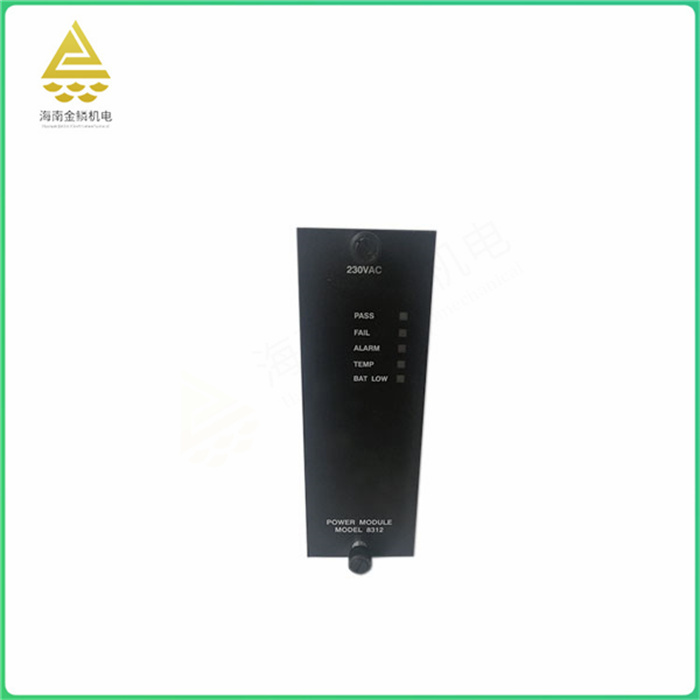

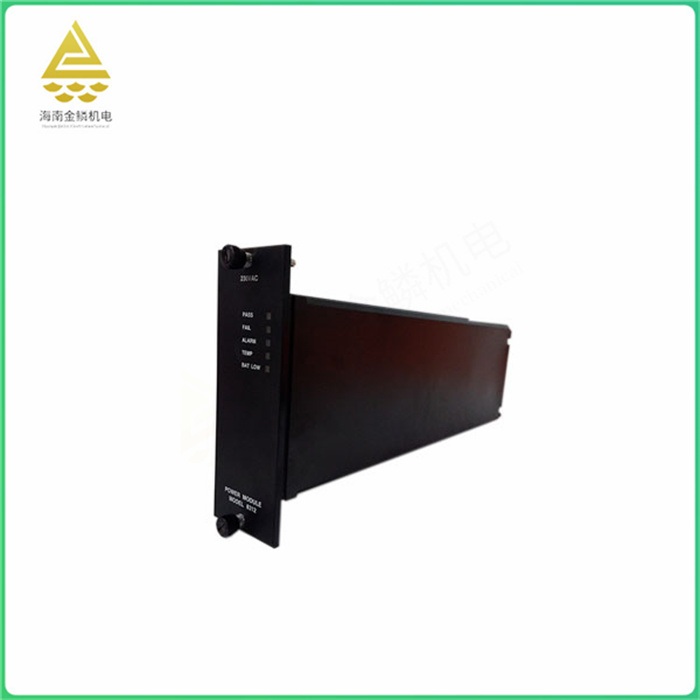

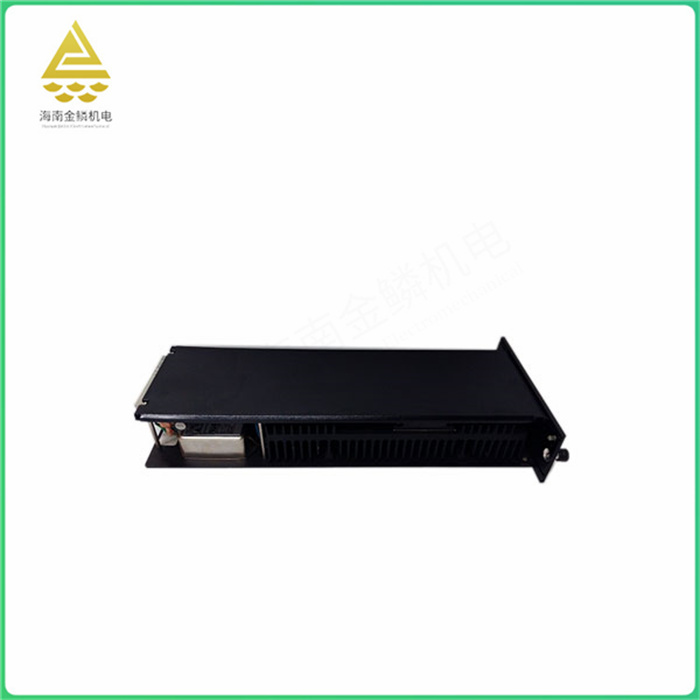

● Manufacturer :Triconex
● Product Number :8312
● Product type: Power module
● Rated voltage :230 V AC voltage
● Input AC voltage at 47-63 Hz :185-285
Power module is a power supply that can be mounted directly on the printed circuit board. It has the characteristics of small size, high integration, high cost performance and the best performance index. It is a modular power supply product that can be selected and configured according to actual needs, and has a wide range of application fields, such as communication, electronics, power, automation, etc.
The power module is generally divided into AC to DC or DC to DC according to the conversion mode, which has the following advantages:
1. Small size, light weight, easy installation and maintenance.
2. High integration, the main circuit of the switching power supply can be integrated in the chip to achieve broadband modulation isolation and a variety of protection functions.
3. Excellent performance indicators, can meet a variety of high-precision power needs.
4. Strong programmability, can realize different control logic through programming to meet different application needs.
5. High reliability, stable performance and long life.
The application fields of power module are very wide, such as switching equipment, access equipment, mobile communication, microwave communication and optical transmission, routers, etc., digital signal processor (DSP), microprocessor, memory, field programmable gate array (FPGA) and other digital or analog loads in the field of electronics, etc. The input voltage range of AC 85~265V or DC 100~370V in the field of power, as well as automotive electronics and aerospace.
It should be noted that although the power module has many advantages, it still needs to pay attention to some problems in practical applications, such as avoiding overload or short circuit, which may lead to power damage. At the same time, for some specific application scenarios, you also need to customize the design and configuration according to the actual situation.
The application areas of power modules are very wide, including but not limited to the following areas:
Communication field: In the field of communication, the power module can be used for various information and communication development electronic technology equipment, such as switching equipment, access equipment, mobile communication, microwave communication, optical transmission, routers, etc.
Power field: In the power system, the power module can be used as a power supply for equipment, such as power grids, power grids, power monitoring, wired power, radio or other electromagnetic systems.
Rail transit: With the continuous development of the railway industry, in order to improve the reliability and comfort of passenger car operation, a large number of electronic devices are used in rail transit, which requires power module conversion.
Industrial instrumentation field: Industrial instrumentation refers to gas, liquid turbine flowmeters, electromagnetic flowmeters and other flow metering meters and pressure switches, differential pressure switches and other instruments, these different occasions we need a power supply system power supply.
Smart home field: The smart home industry involves Internet applications, control centers, smart switches, sockets, intelligent dimming, home appliance control, air conditioning control, access control, security, monitoring and other applications also need power supply modules.
Coal mining industry: Designed for all kinds of coal mining equipment small volume, high reliability, safety isolation module power supply, for network communication, detection and monitoring, power system and other power supply.
In addition, there are also power module applications in automotive electronics, aerospace and other fields. It can be said that as long as there is a device or system that needs power supply, there is the application possibility of a power module.
