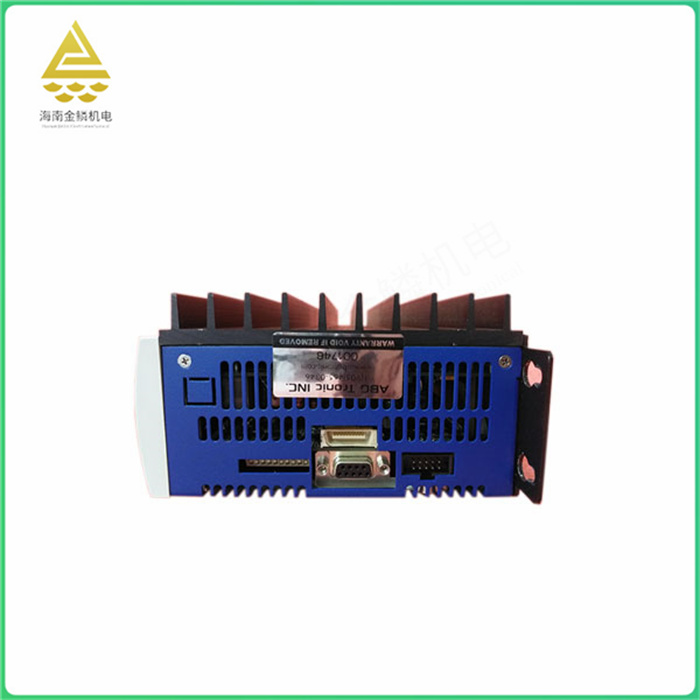

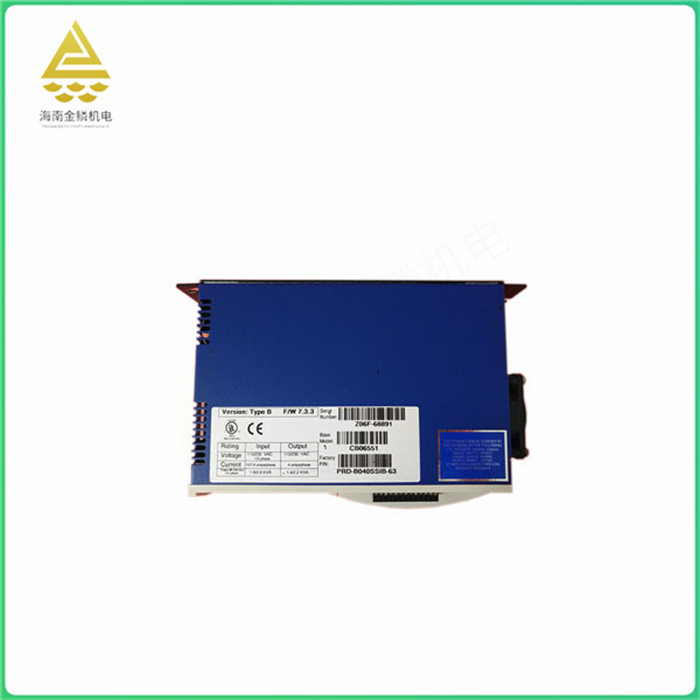

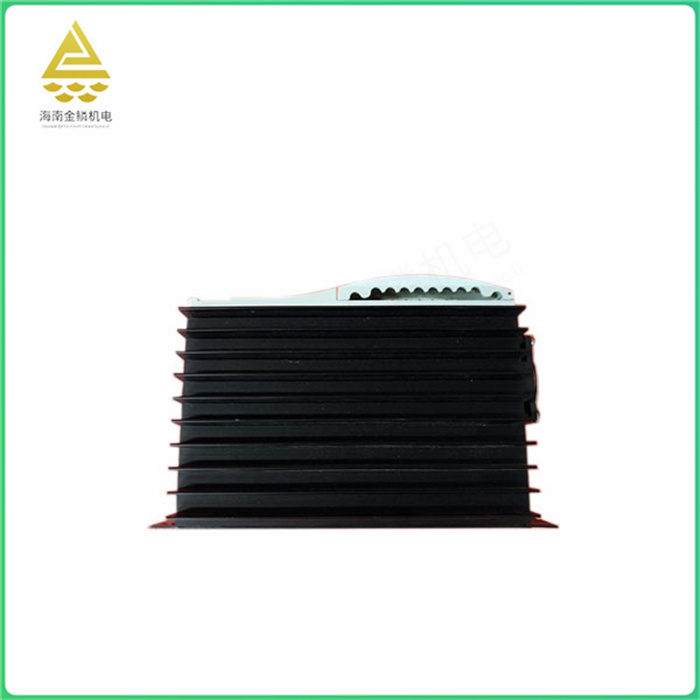

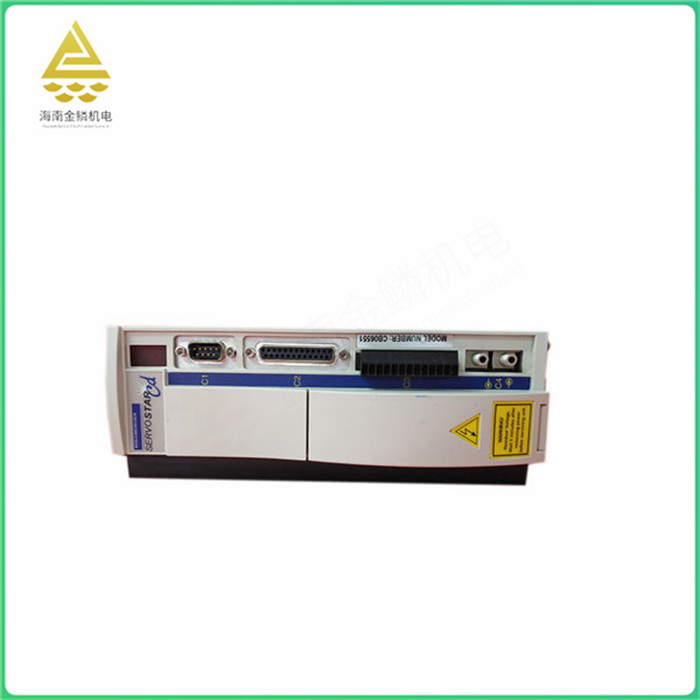

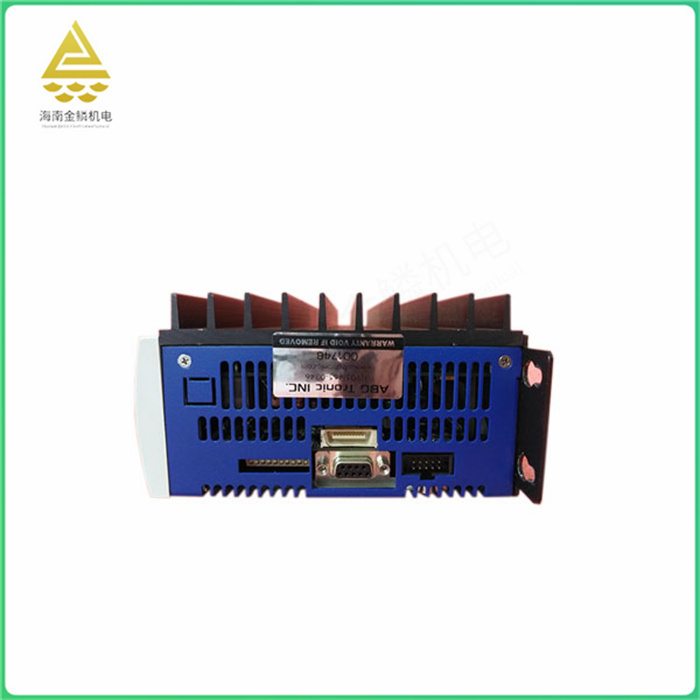

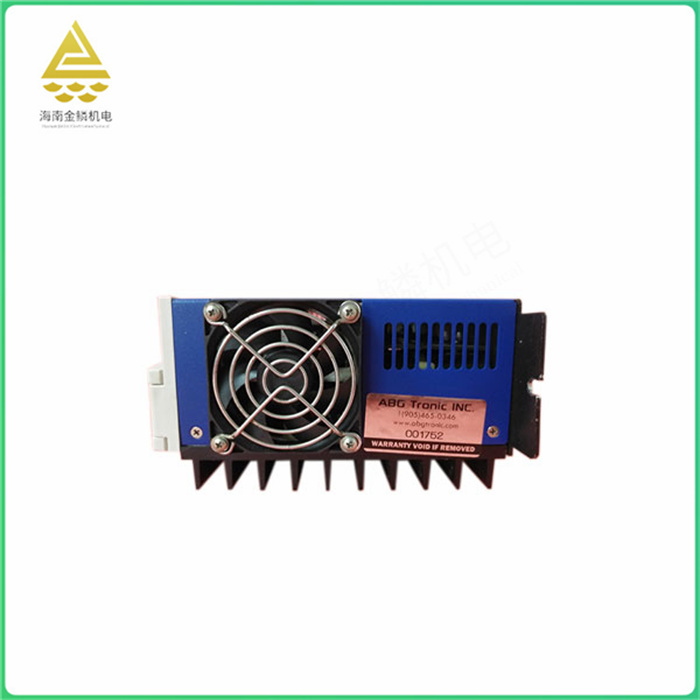

The CB06551 servo driver is an important part of modern motion control, which is widely used in industrial robots and CNC machining centers and other automation equipment. It is applied to control AC permanent magnet synchronous motor and has become a research hotspot at home and abroad. The current, speed and position three closed-loop control algorithms based on vector control are widely used in the design of AC servo drivers. Whether the speed closed-loop design in the algorithm is reasonable or not plays a key role in the whole servo control system, especially in the performance of speed control. In the servo drive speed closed-loop, the real-time speed measurement accuracy of the motor rotor is very important to improve the dynamic and static characteristics of speed control of the speed loop.
servo drives (servo drives), also known as "servo controller", "servo amplifier", is a controller used to control the servo motor, its role is similar to the frequency converter acting on the ordinary AC motor, is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, which is a high-end product of transmission technology.
Servo drives are widely used in many fields, the following are some specific examples:
Machine tool field: In the field of machine tools, servo drivers are widely used to control the movement and output of motors. Because of the high precision of the position and speed control of the machine tool, the servo drive can greatly improve the working efficiency and production quality of the machine tool.
Printing machinery field: In the field of printing machinery, servo drivers are mainly used to control the quantitative recovery of ink, paper positioning, take-up control, etc. Through the precise control of the servo drive, the printing effect of high speed and high precision can be achieved.
Textile machinery field: In the field of textile machinery, due to the high requirements of product quality and work efficiency, servo drivers can help textile machinery accurately control the length, width and speed of the cloth, ensure product quality and improve production efficiency.
Industrial automation: In the field of industrial automation, servo drives are everywhere. They are usually used in equipment requiring high precision and high speed position and speed control, such as automated production lines, logistics equipment, automated packaging and inspection machinery. In these applications, servo drives allow for more precise position control and are more flexible than traditional mechanical drives and can quickly adapt to changes in the production line.
In the field of robotics, servo drives are widely used in various robotic equipment. These devices require high-precision motion control, such as: industrial robots, service robots, medical robots and other fields. Through the precise control of the motor, the robot can automatically complete various operations, such as: surgical operation of medical devices, material handling in the manufacturing industry.
The servo drive has the following main features:
High precision control: The servo drive enables high precision position, speed and torque control to ensure the accuracy and stability of the drive system.
Fast response: The servo driver has a fast response ability and can quickly adjust the running state of the motor to meet the application scenarios with high real-time requirements.
Wide speed range: the servo driver has a wide speed range and can flexibly adjust the speed of the motor according to actual needs.
Strong overload capacity: the servo drive usually has a strong overload capacity and can withstand a large load in a short time without damage.
High reliability: The servo drive adopts high-quality hardware design and advanced control technology to ensure stable operation in harsh working environments.
Easy operation and maintenance: the servo drive usually has a friendly human-machine interaction interface and perfect fault diagnosis function, which is convenient for users to operate and maintain.
A variety of communication interfaces and protocols support: the servo drive supports a variety of communication interfaces and protocols, and can easily exchange and integrate data with other devices.
These characteristics make the servo drive in industrial automation, robots, machine tools, printing machinery, textile machinery and other fields have been widely used.
