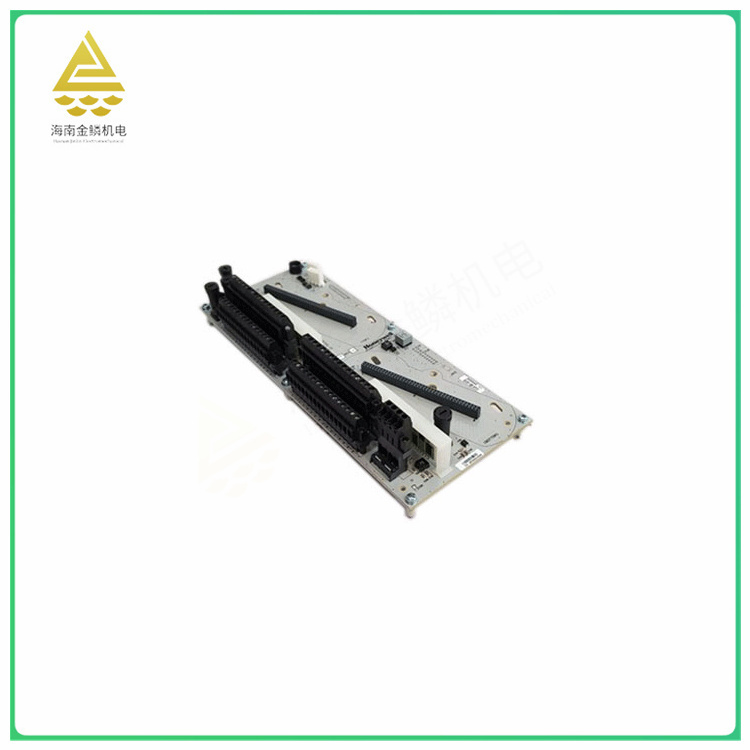

Manufacturer: Honeywell
Product number :CC-TDIL61
Product type: Digital input module
Current (amperes at 24 volts DC). : 0.190
Heat dissipation (watt):4.220
Shipping weight :2 kg
The module is part of the Honeywell C300 system and is primarily used in DCS (Distributed Control System). Some of its functions and features are as follows:
Redundancy technology is used to ensure that faulty equipment can still be started in the event of a failure; Able to respond to security outages in emergency situations.
It can be optimized according to customer needs and working conditions. For example, when the unit is in a state of high load operation, the corresponding control strategy can be provided according to the working conditions. When the equipment is operating at low load, the corresponding control strategy can be set for each operating condition.
By combining the system parameters with the gas turbine module parameters, the wind vibration characteristics of the blades are improved, and the impact of vibration noise and vibration frequency in unit operation is reduced.
Improve the efficiency of fan bearings, blades and other components, reduce the failure frequency and running time.
All C-Series components are innovative in design to support enhanced thermal management. This unique appearance significantly reduces the overall size of the equivalent function.
Unique features of the C Series l/0 include:
●1/0 modules and field terminations are combined in the same area. The 1/0 module is inserted into the IOTA, eliminating the need for a separate chassis to hold the electronic components.
● Two-stage detachable "terminals are used to secure field wiring into the housing, simplifying installation and maintenance.
Field power is provided via IOTA, eliminating the need for additional power supplies and associated process wiring.
Simply add a second IOM to IOTA to implement redundancy directly on IOTA without any external cabling or redundant control devices.
●C series innovative modeling is one of its unique functions. This style includes features that facilitate the effective use of control hardware in a system environment. These features include:
● Vertical installation for more efficient cabling, as most field cabling applications require access from the top or bottom of the system cabinet.
● An "information circle" for quick visual cues to draw the attention of maintenance technicians to important status information.
● "Tilt" design for effective thermal management inside the cabinet housing. The C Series can significantly increase cabinet density, so an effective thermal management system is essential to improve system availability.
● The input and output circuits have short circuit protection to reduce the need for online fusing, thereby reducing installation and maintenance costs.
