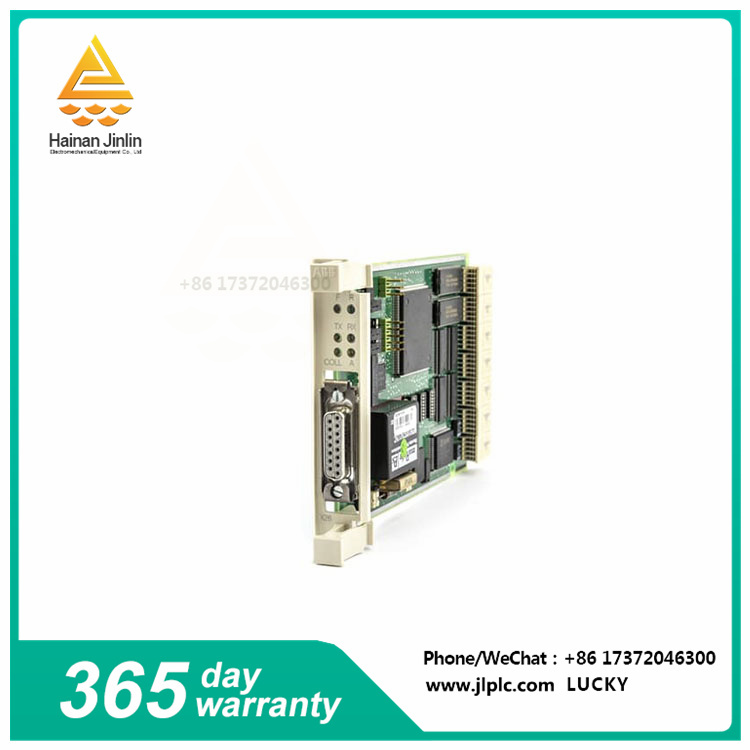

CI545V01-3BUP001191R1 is an ABB brand communication interface module, mainly used for connecting and transmitting data. Here is a detailed analysis of this module:
Product features:
Compact design: The module is compact and easy to install and integrate into existing industrial control systems, saving space and improving the integration of the overall system.
A variety of communication interfaces: CI545V01 supports Ethernet, serial interface, CAN bus and other communication interfaces, making it able to communicate flexibly with a variety of other devices to meet diverse communication needs.
Large capacity memory: The module has 128MB of memory, which can store a large number of applications and data, ensuring data security and reliability.
Powerful processing power: Equipped with a 32-bit ARM Cortex-A9 dual-core processor, the CI545V01 has powerful processing power, which can quickly respond to various data and tasks, ensuring real-time and efficiency of the system.
Application scenario:
CI545V01 communication interface control board is widely used in various industrial automation systems requiring high-speed and high-precision control, such as CNC machine tools, robots, intelligent manufacturing equipment, etc. In these applications, the control board provides a stable communication interface to ensure high speed and reliable operation of the equipment and improve production efficiency.
Technical parameters:
Input/output points: up to 512 digital input/output points, up to 256 analog input/output points.
Operating temperature range: -25°C to +70°C, which enables stable operation of the CI545V01 in a variety of industrial environments.
Power supply voltage range: DC 24V, stable power supply to ensure the normal operation of the module.
Other features:
High reliability: CI545V01 has good anti-interference ability and reliability, suitable for a variety of harsh industrial environments, to ensure the accurate transmission of data and stable operation of the system.
Multiple protection functions: The module has multiple protection functions such as over-temperature protection, over-current protection and fault diagnosis and location to ensure the safe and stable operation of the system.
In summary, CI545V01-3BUP001191R1 is a powerful and excellent communication interface module that can meet a variety of communication needs in industrial automation and control systems.
