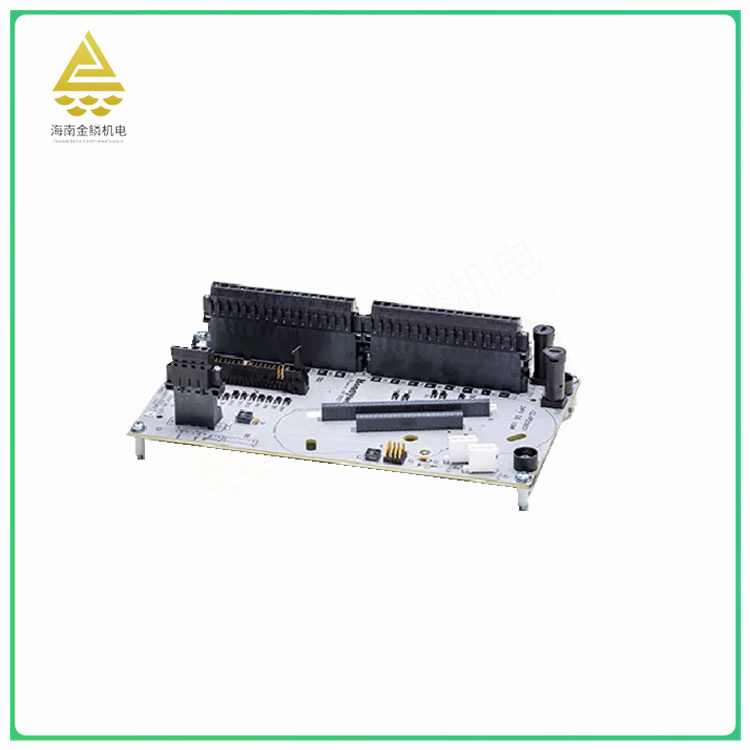

The DC-TDOB01 terminal motherboard has some unique functions and features. First, it is equipped with specific communication cards, such as 10018/E/1 and 10018/E/E, which are primarily used to communicate with Honeywell's PlantScape system. In addition, the Ethernet serial interface on the motherboard (10018/E/.) Ability to connect the FSC system to the PlantScape Server (Server).
In terms of hardware configuration, the DC-TDOB01 includes the Motorola 68EN360 communication controller (running at 25MHz), 4MB flash memory for storing FSC firmware programs, 16MB local RAM dedicated to the storage of user application data, and more. The shared 2MB RAM is used for all data exchange between the module and the FSC control processor. These hardware configurations provide powerful data processing and communication capabilities.
In terms of functions, the communication card of the DC-TDOB01 terminal motherboard can optimize the communication of FSC to external devices, providing stable and efficient data transmission. In addition, its isolated Ethernet serial interface design enhances system stability and security.
However, it should be noted that the functions and features described above may not be comprehensive, because the specific functions and applications of DC-TDOB01 may vary according to actual application scenarios and requirements. Therefore, in actual use, it is recommended to refer to the relevant technical documents and user manuals for more detailed and accurate information.
Overall, the DC-TDOB01 terminal board is a powerful and flexible communication board for applications that require efficient and stable data communication.
The advantages and disadvantages of DC-TDOB01 terminal motherboard are mainly reflected in the following aspects:
Advantages:
Efficient and stable communication capabilities: The DC-TDOB01 is equipped with dedicated communication cards, such as 10018/E/1 and 10018/E/E, to enable efficient and stable communication with Honeywell's PlantScape system. This helps to ensure accuracy and real-time data transmission to meet the high communication performance requirements of industrial automation and control systems.
Flexible hardware configuration: The DC-TDOB01 has hardware configurations such as Motorola 68EN360 communication controller, flash memory and RAM, which can be flexibly adjusted according to actual application requirements. This enables DC-TDOB01 to adapt to different application scenarios and meet diverse needs.
Easy integration: The DC-TDOB01's isolated Ethernet serial interface design makes it easy to connect FSC systems to PlantScape servers for integration with other devices and systems. This simplifies the process of system integration and improves the overall performance and reliability of the system.
