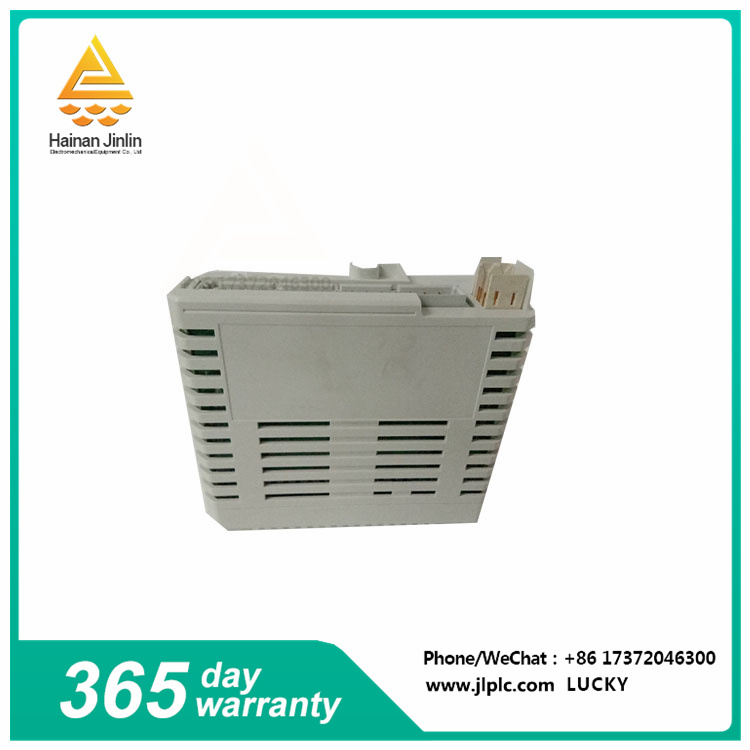

The DI650-3BHT300025R1 is a 32-channel isolated digital input module manufactured by ABB, a global leader in power and automation technology. Designed for industrial control systems, it provides a reliable and efficient way to connect digital input signals from a variety of sensors and switches.
Main features:
32 isolated digital inputs: The DI650-3BHT300025R1 provides 32 independent digital input channels, each capable of handling 24VDC signals.
Optical isolation: Each input channel is optically isolated from the module's internal circuits and other channels to prevent electrical noise and ground failures from affecting signal integrity.
High-speed response: The module has a fast response time of 0.5 ms, ensuring accurate and timely processing of input signals.
DIN Rail mounting: The DI650-3BHT300025R1 is designed for DIN rail mounting and can be easily installed in standard industrial control cabinets.
LED Status indicator: Each input channel has an LED indicator that lights up when the corresponding signal is active, providing visual status monitoring.
Applications:
The DI650-3BHT300025R1 is commonly used in a variety of industrial control applications, including:
Machine control: Monitor limit switches, buttons and other digital sensors in machine automation applications.
Process control: Connection with position sensors, level switches and other digital signals in industrial process control systems.
Alarm system: Detects faults, alarms and status changes of various devices and sensors.
Data acquisition systems: Collect digital input data from sensors for monitoring and analysis purposes.
Other points to note:
Power Supply: DI650-3BHT300025R1 requires a separate 24VDC power supply to operate.
Input signal compatibility: Ensure that the voltage levels and signal characteristics of the connected digital inputs are compatible with module specifications.
Grounding: Proper grounding is essential to minimize noise and ensure reliable signal transmission.
Communication protocol: DI650-3BHT300025R1 may use standard industrial communication protocols such as Modbus RTU or PROFIBUS to communicate with the control system.
