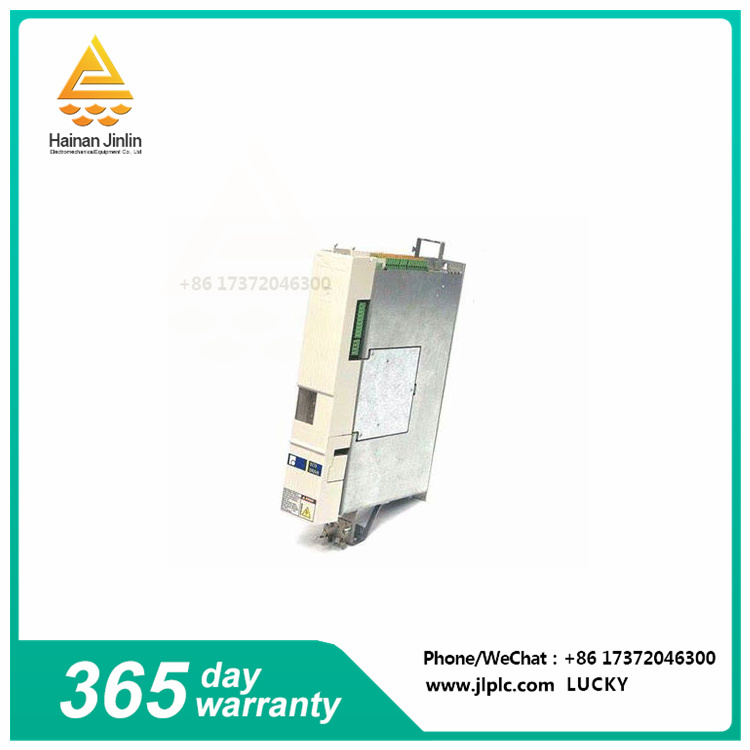

The DKC01.3-200-7-FW is an AC servo amplifier drive controller manufactured by Bosch Rexroth Indramat (often abbreviated Bosch Rexroth or Indramat). It is part of the Ecodrive family, which is known for being economical and reliable for a variety of industrial motion control applications.
The following is a breakdown of the main features and specifications of the DKC01.3-200-7-FW:
Series: Ecodrive (Type 3) Model: DKC01.3-200-7-FW Type: AC servo drive Controller Rated Current: 200 amps DC bus rated voltage: 700VDC Version: 3 (may refer to hardware or firmware version) Standard Firmware: Standard firmware comes with it, but some distributors may offer versions with custom firmware pre-installed.
Applications:
The DKC01.3-200-7-FW is suitable for a variety of industrial automation tasks requiring precise control of AC servo motors. Here are some common applications:
Machine tools: Precise positioning and speed control of spindle, feed shaft and tool changer.
Material handling: Conveyor systems, robotic arms and automated guided vehicles (AGVs).
Packaging machinery: Precise control of product handling and operation.
Printing machinery: accurate web tension control and registration of printing materials.
Textile machinery: Control yarn tension and loom operation.
The drive controller has a variety of environmental requirements, including a maximum installation height of 1000 m above sea level, 95% permissible relative humidity and 25g/m3 absolute humidity. Its ambient storage and operating temperatures range from -30 to 85 degrees and 0 to 45 degrees, respectively. It uses natural air cooling and has the IP 20 protection category. In terms of electrical characteristics, it has a 200 amp current type and a rated circuit voltage of 700V.
The DKC01.3-200-7-FW is installed in a control cabinet that meets IP 10 protection requirements and provides users with two modes of operation, namely speed and Angle synchronization. The position of the super front axle is measured in degrees. The super front axle encoder should be connected to the DKC01.3-200-7-FW stepper interface.
Overall, the DKC01.3-200-7-FW is a powerful and stable drive controller suitable for a variety of application scenarios requiring precise control and adjustment. Whether in industrial automation, power electronics or other fields, it provides reliable support to help users achieve precise control and optimized operation of their equipment.
