The DS200CTBAG1ADD is a patch board designed for GE Mark V Speedtronic systems. The Speedtronic family was created by General Electric to control large and small gas and steam turbine systems.

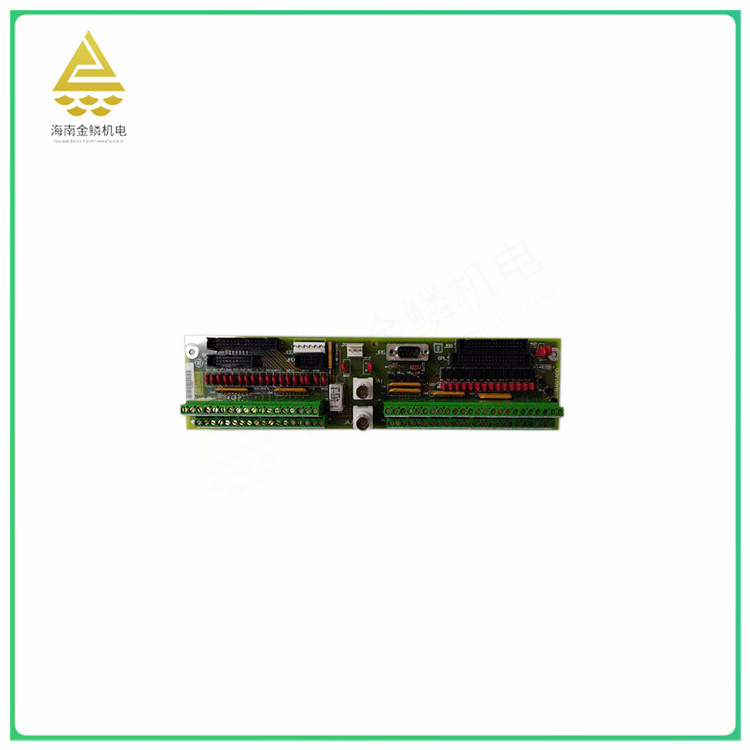

The DS200CTBAG1ADD is a long, narrow circuit board with only a few types of components. Each corner and long side are drilled to allow for the installation of hardware and other connections. Two of the holes are surrounded by conductive material. The board is marked with an identification number, including the board ID number and the company logo. The DS200CTBAG1ADD is an analog terminal module, typically located within the R5 core. The board has multiple connectors, including two COREBUS connectors (JAI and JAJ). It also has two double-layer terminal blocks located on the edge of a long board with multiple connectors on each terminal block. In addition, there are five vertical needle cable connectors, two vertical needle connectors, and a 9-pin male serial connector.
Functions and features of DS200CTBAG1ADD are as follows:
It is one of GE's conversion modules, mainly used in power generation, transmission and distribution and other links to achieve the control and protection of power equipment and systems.
The product is widely used in power plants, power transmission systems, power distribution systems and industrial automation. In these applications, the DS200CTBAG1ADD module can realize signal conversion, isolation, amplification, filtering and other functions to ensure that different types of devices and systems can work together.
It has an easy-to-use programming language that allows users to easily create control logic, and multiple communication options to communicate with other devices.
It has 16 analog inputs, 16 analog outputs, 16 digital inputs, and 16 digital outputs, as well as a 100 MHz processor and 200 KB of memory.
In summary, DS200CTBAG1ADD is a powerful and widely used conversion module that can be widely used in various industrial automation and power control fields.
