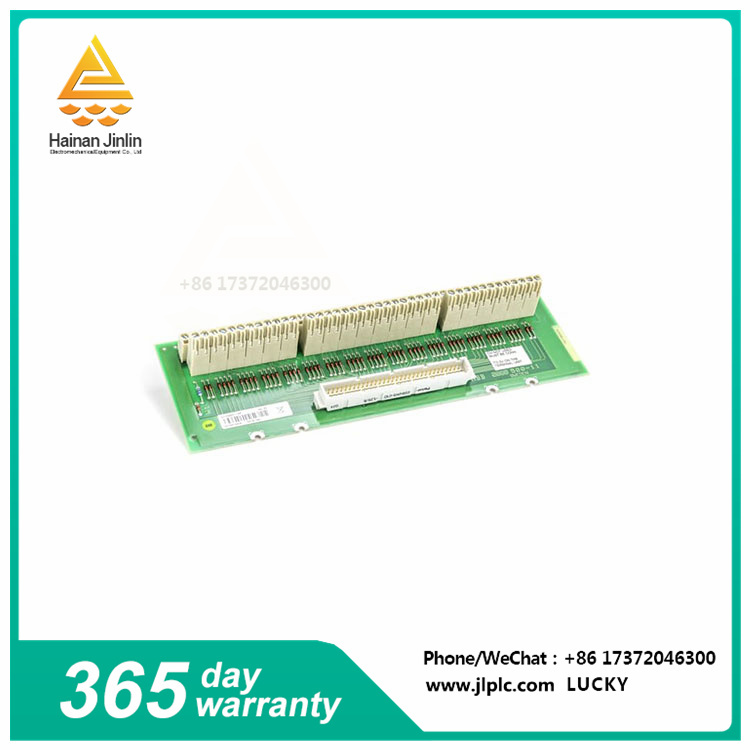

The DSTA001B-3BSE018316R1 is an analog module connection unit manufactured by ABB, a well-known company in the field of industrial automation and power technology. In industrial environments, it acts as an intermediary between simulation modules and control systems.
Here's a detailed breakdown of its features and key points:
Features:
The DSTA001B-3BSE018316R1 acts as a bridge between the analog module (which is not normally included) and the control system. Analog modules convert physical quantities such as temperature, pressure, or flow into electrical signals (usually voltage or current).
The connection unit provides the necessary electrical connections, terminals and isolation functions to ensure proper signal transmission and power supply between the analog module and the control system.
Main features:
Designed for analog modules: It is specifically designed to work with a variety of ABB analog modules that measure real-world phenomena and convert them into analog electrical signals.
Electrical connections: Terminals are provided for connecting power, analog input/output signals and communication lines between the module and the control system.
Isolation: Electrical isolation may be provided between the module and the control system, preventing electrical noise or ground faults from one side from affecting the other.
Panel mounting: Designed for panel mounting using standard 35 mm DIN rails for easy integration into industrial control cabinets.
Applications:
The DSTA001B-3BSE018316R1 works with a variety of ABB analog modules for different industrial applications, including the monitoring and control of physical processes based on analog sensor data. Here are some examples:
Process control systems: Monitor and regulate key process variables such as temperature, pressure, and flow rates in the chemical, oil and gas, and food processing industries.
Building Automation systems: Control and monitor temperature, humidity, and ventilation parameters in heating, ventilation, and air conditioning (HVAC) systems to improve building comfort and energy efficiency.
Power generation and distribution: Monitoring various parameters in the grid, such as voltage, current and power factor, for safe and efficient power generation and distribution.
Machine monitoring: Monitoring vibration, pressure and temperature within the machine for preventive maintenance and fault detection.
