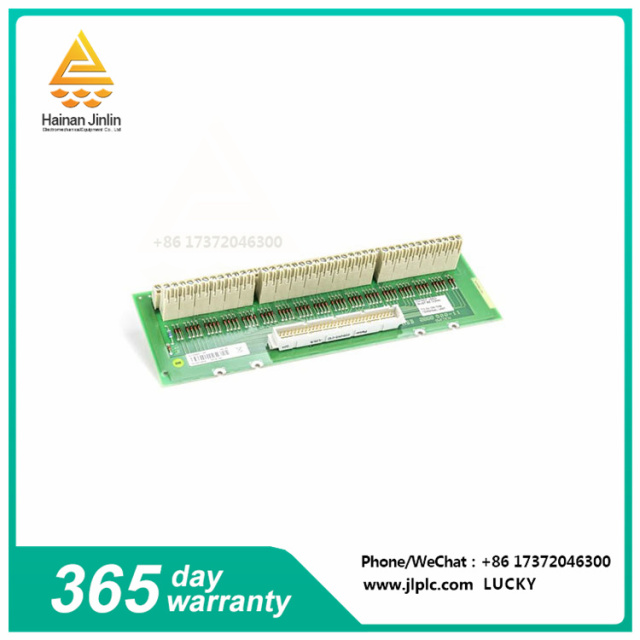

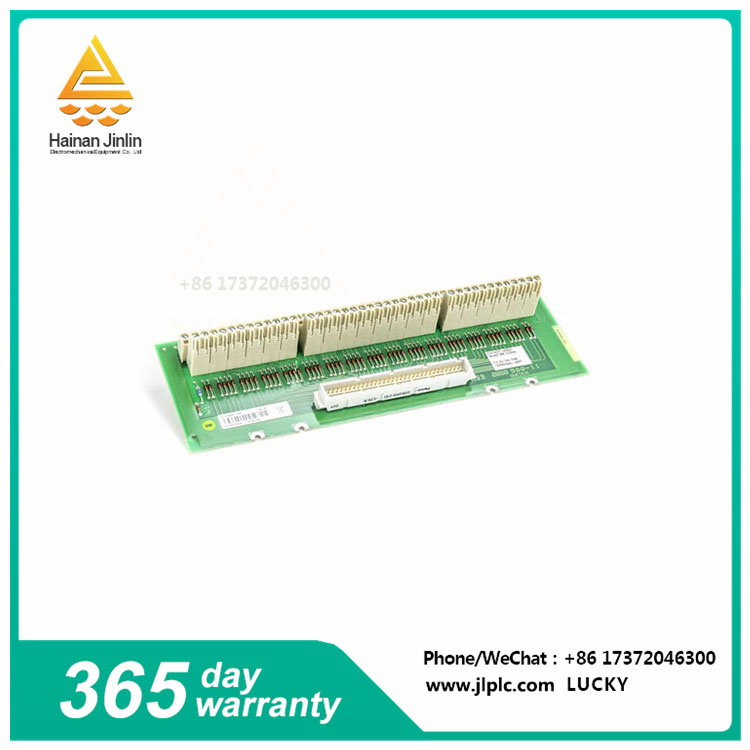

The DSTA135-3BSE018315R1 is a connection unit for analog output boards manufactured by ABB, a leading automation and power technology company. In industrial Settings, it acts as an intermediary between analog output boards (often sold separately) and control systems.
Here's a breakdown of its features and key points to help you understand this component:
Features:
The DSTA135-3BSE018315R1 Bridges the gap between the analog output board and the control system. The analog output board receives the digital signal from the control system and converts it into an analog voltage or current signal. These control signals are then used to control various devices in the machine or process, such as actuators, valves, and motors.
The connection unit provides the necessary electrical connections, terminals, and isolation functions to ensure correct signal transmission and power supply between the analog output board and the control system.
Main features:
Designed for analog output boards: Designed to work with ABB analog output boards to convert digital control signals from the system into analog voltage or current outputs for control devices.
Electrical connections: Terminals for connecting power supplies, control system signals, and output voltage or current terminals for connecting controlled devices are provided.
Isolation: Electrical isolation may be provided between the control system signal and the output circuit, preventing electrical noise or ground faults from one side from affecting the other side.
Panel mounting: Designed for panel mounting using standard 35 mm DIN rails for easy integration into industrial control cabinets.
Applications:
The DSTA135-3BSE018315R1 can be used with a variety of ABB analog output boards for different industrial applications involving control devices based on the digital instructions of the control system. Here are some examples:
Machine control: Generate analog control signals for variable speed drives to control the speed and position of the motor in the machine.
Process control: Provides analog outputs to regulate process variables such as temperature, pressure and flow in industrial processes by controlling valves or other actuators.
Building automation systems: Control valves and actuators in HVAC systems based on the digital temperature or pressure setpoints of the control system.
Test and simulation: Generate analog signals to test and simulate the behavior of various devices or systems under controlled conditions.
