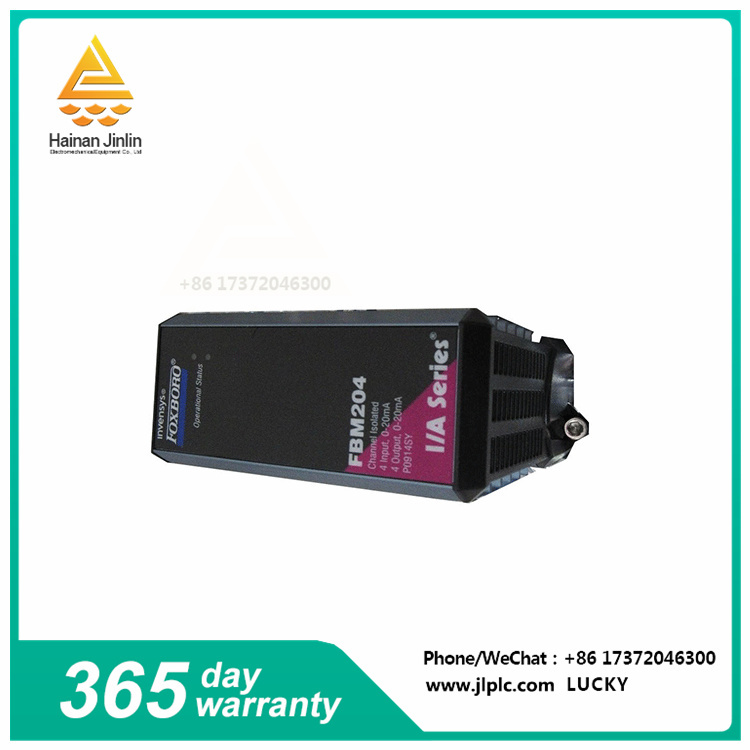

The FBM204 is a Foxboro controller assembly with a unique set of functions and features for a wide range of industrial automation and control systems.
First, the FBM204 provides the ability to communicate with the main control station. It communicates via an optional redundant 10Mbps Ethernet-based fieldbus to ensure stability and reliability. The Fieldbus communication component (FCM) is used to convert between the 2Mbps communication protocol used by the FBM and the 10Mbps communication protocol used by the Ethernet fieldbus, which enables the FBM204 to adapt to different communication environments.
The communication mechanism of the FBM204 is very flexible and reliable. The communication it receives can come from any path (A or B) on the redundant Ethernet fieldbus. Once a path fails or is switched by the system, components can continue to communicate through the active path, thus ensuring continuity and real-time communication.
In terms of hardware design, the FBM204 uses a compact, robust pressed aluminum housing to provide physical protection for electronic circuits. In addition, each input channel can accept an analog input, such as a 4 to 20mA transmitter or a self-powered 20mA signal power supply, which greatly expands its application scenario.
The FBM204 not only performs the signal conversion function to convert the electrical signal from the field sensor into an optional redundant fieldbus signal, but also provides a variety of Settings options for analog signal input applications, such as conversion time, fail-safe configuration (hold/return), and fail-safe return data for analog output (on a per-channel basis).
In addition, the FBM204 also has the high and low level indicator function of the drum level meter, which mainly uses the magnetic response principle, and the magnetic switch is installed at the upper and lower alarm points of the measuring float to detect the position of the float.
In summary, the FBM204 is a full-featured, high-performance controller assembly for a wide range of industrial automation and control systems. Its high reliability, flexibility and wide range of applications make it ideal for industrial automation.
The FBM204, as a Foxboro controller component, has a wide range of applications in industrial automation and control systems. Its advantages and disadvantages are analyzed as follows:
Advantages:
Strong communication ability: The FBM204 has the ability to communicate with the main control station, and realizes stable and reliable communication through the Ethernet-based fieldbus. This communication mechanism can ensure the accuracy and real-time performance of data in the transmission process, and meet the high requirements of industrial automation system for communication.
Excellent hardware design: The FBM204 uses a pressed aluminum housing to provide physical protection for electronic circuits, enhancing the durability and stability of the device. In addition, its compact design makes installation and maintenance easier.
Feature-rich: The FBM204 not only performs signal conversion functions, but also provides a variety of Settings options for analog signal input applications, such as conversion time, fail-safe configuration, and more. This enables the FBM204 to adapt to a variety of application scenarios and meet different control requirements.
Wide range of applications: FBM204 has a wide range of applications in industrial automation and control systems, which can be used to monitor and control various process parameters to achieve intelligent control and energy saving management.
Cons:
Higher cost: The cost of the FBM204 may be higher compared to some low-end controller components. This can be a strain on some users with limited budgets.
The technical threshold is high: the configuration and programming of the FBM204 requires certain specialized knowledge and skills. If the user lacks the relevant technical background, it may take more time and effort to learn and master.
High requirements on the environment and power supply: In order to ensure the stable operation of the FBM204, it is necessary to provide a suitable working environment and a stable power supply. In some harsh working environments, additional protective measures may be required to ensure the normal operation of the equipment.
