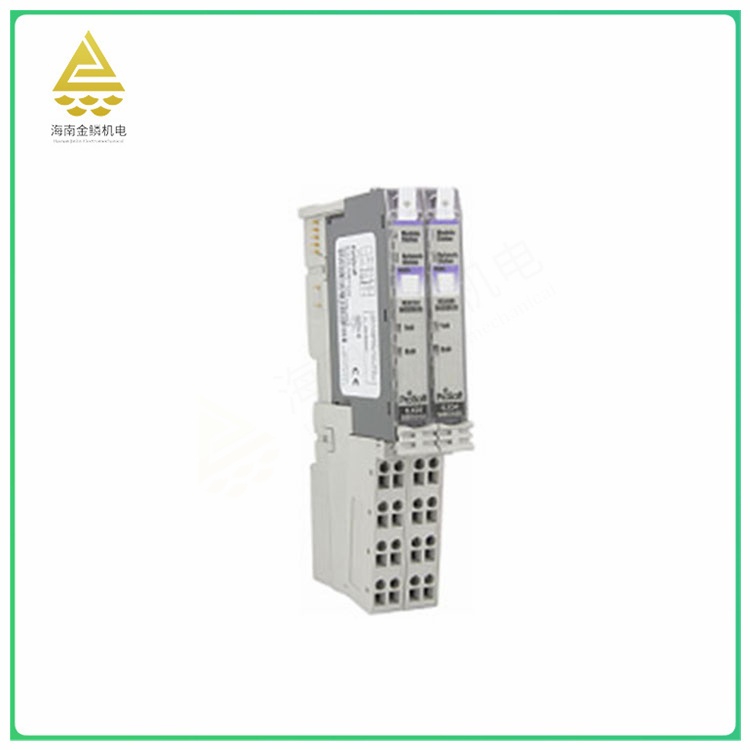

The ILX34-MBS485 is a programmable controller manufactured by Prosoft Technology. It is a module designed for access to Controllogix systems, capable of serial communication over the Modbus RTU protocol.
The ILX34-MBS485 module accesses the 1756 EtherNet/IP network through the 1734-AENTR module. It supports a variety of functions, including error code acquisition, hardware configuration, import of vendor-provided AOI (Application Object Interface) and configuration of serial port parameters. Through the Status tag of the program MBS485, users can obtain the error code of each command and the communication status of the slave device corresponding to the command. In addition, the hardware error code and status information of the module can be obtained through the GSV instruction.
In terms of hardware configuration, the ILX34-MBS485 module can be configured using Studio 5000 software. Users need to add ILX34-MBS485 module to the project and set parameters, including connection parameters, communication format and slot number. The module itself has a variety of error codes and status information, which can be viewed and processed through the software interface.
The ILX34-MBS485 module has a high degree of reliability and stability, and is suitable for various industrial automation and control system application scenarios. It can be seamlessly integrated with other devices and systems to achieve data collection, transmission and control functions.
The ILX34-MBS485 is a programmable controller designed for access to Controllogix systems, capable of serial communication over the Modbus RTU protocol. Here are some of the advantages and disadvantages of ILX34-MBS485:
Advantages:
High flexibility and scalability: ILX34-MBS485 module supports a variety of functions, such as error code acquisition, hardware configuration, import AOI provided by manufacturers and configuration serial port parameters, which can meet the different needs of users. In addition, it can access 1756's EtherNet/IP network via the 1734-AENTR module for easy integration with other devices and systems.
Powerful communication capability: The module supports the Modbus RTU protocol, and can communicate with a variety of different types of equipment to achieve data collection, transmission and control functions. In addition, it also supports a variety of communication parameter Settings, such as baud rate, data bit, stop bit and check bit, to adapt to different communication needs.
Easy to use and configure: The ILX34-MBS485 module can be configured and monitored through the Studio 5000 software, making it user-friendly and easy to operate. Users can set parameters, view and handle error codes through the software interface, which is convenient and fast.
High reliability: The module uses high-quality electronic components and strict production process to ensure product stability and reliability. It can operate for a long time in harsh industrial environments and is suitable for various industrial automation and control system application scenarios.
Cons:
High price: ILX34-MBS485 module is a high-end programmable controller, the price is relatively high. This may limit the options for some users, especially those with cost-sensitive projects.
Professional configuration and maintenance required: Although the module has a user-friendly interface and easy to use configuration software, it still requires a certain amount of specialized knowledge and skills to perform the correct configuration and maintenance. As a result, users may need to rely on professional engineers or system integrators for related operations.
.
