Brand: GE
Product name: Circuit board
Product model: IS215UCVEM06A
Origin: USA
Available for sale: the whole country, abroad
Import or not: Yes

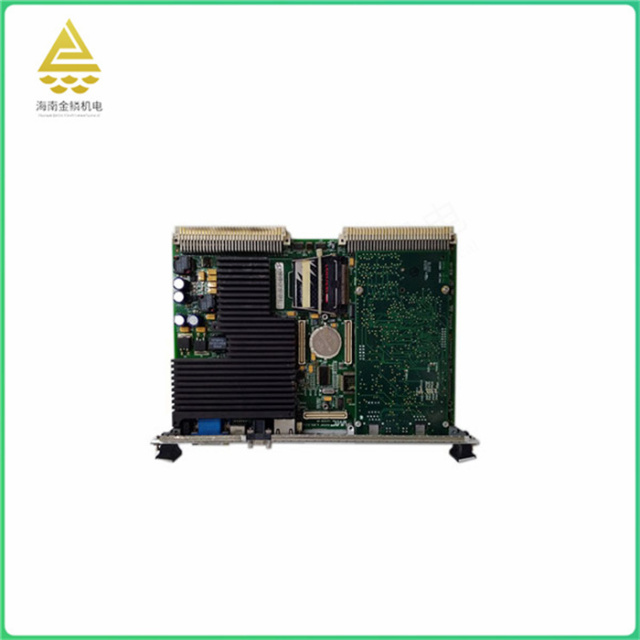

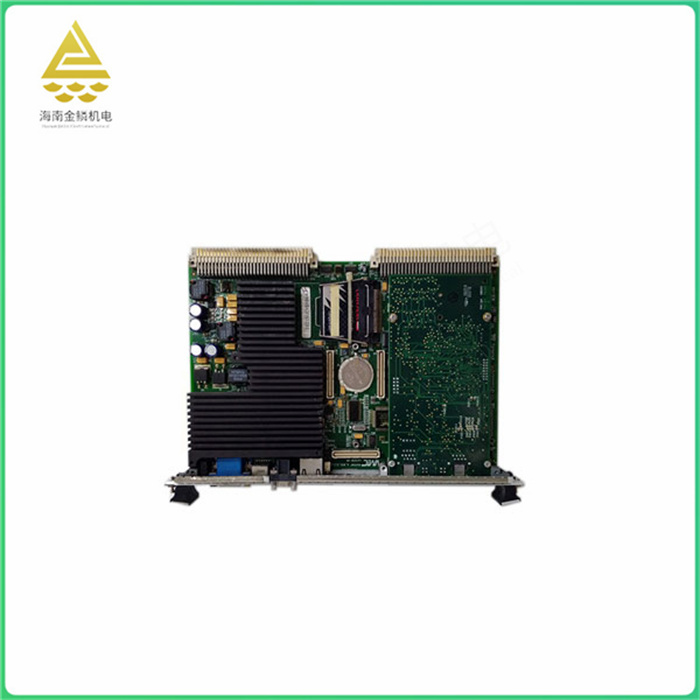

The IS215UCVEM06A is a circuit board used in General Electric's Speedtronic Mark VI turbine series, which is an Ethernet connected circuit board.

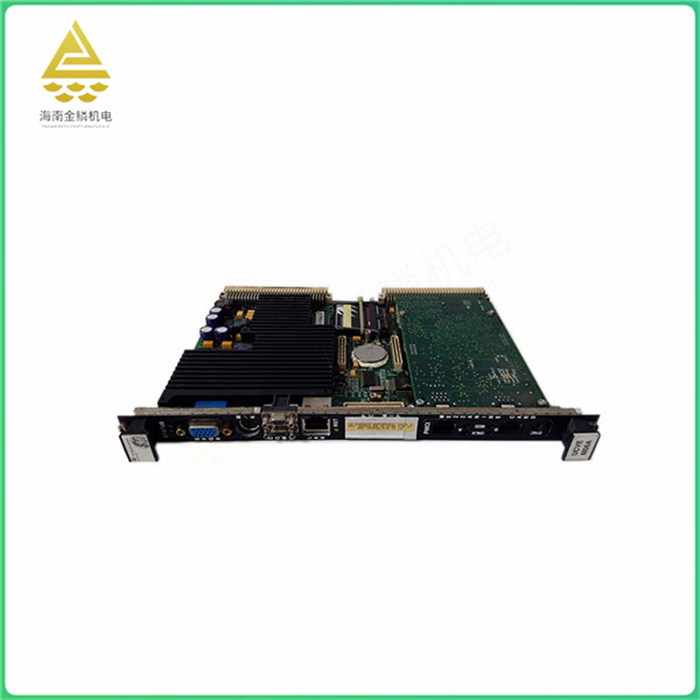

The IS215UCVEM06A is a circuit board in the Speedtronic Mark VI turbine series from Yutong Electric. This IS215UCVEM06A is an Ethernet connected circuit board. The IS215UCVEM06A then uses multiple ports on the front of the device. These ports come in different shapes and sizes. These ports are used to connect the Ethernet cable to the COM port. The IS215UCVEM06A uses a variety of components, such as capacitors, diodes, resistors, SD cards, batteries, and integrated circuits. Each component works individually to help the board function as a whole. Capacitors save varying amounts of energy for the circuit board. The diode directs energy in one direction, not the other. Resistors are a way for a circuit board to eliminate energy that the board is not using. SD cards are used as information and data storage. Integrated circuits are used to control circuit boards.

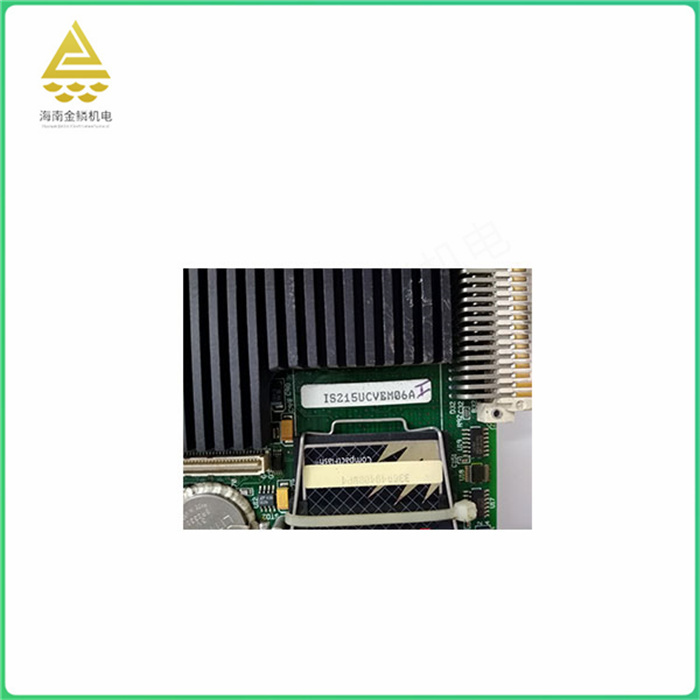

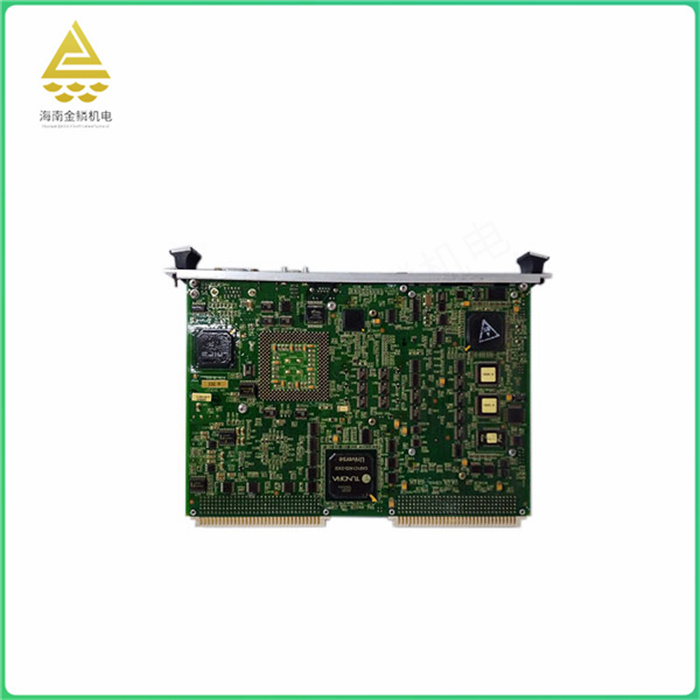

They hold all the data that tells the board how to work. This IS215UCVEM06A slides into place and has male terminals on the back for connecting this board to your system. There are other connections on the board. The IS215UCVEM06A has a large cooling unit that takes up half of the board. For more details, check out the manuals and information data sheets produced by GE about the board.
The function of the circuit board component is mainly to transmit the current, so that the current can flow in the circuit. The circuit board is mainly composed of solder pads, through holes, mounting holes, wires, components, connectors, fillers, electrical boundaries, etc., each part has its specific function. For example, pads are metal holes used to weld the pins of components; The through hole comprises a metal through hole and a non-metal through hole for connecting the pins of components between each layer; Mounting holes are used to fix the printed circuit board; Conductor Electrical network copper film for connecting component pins; A component for connecting circuit boards; The filler is used to apply copper to the ground network, which can effectively reduce the impedance. The electrical boundary is used to determine the size of the board, and all components on the board cannot exceed this boundary.
The main function of the circuit board component is to achieve the transmission and processing of electrical signals, but also to achieve some specific functions, such as amplification, filtering, feedback, protection and so on. Specifically, board components can accomplish the following tasks:
Transmission signal: The components on the circuit board can be connected through wires or circuits to transfer the electrical signal from one component to another component, so as to achieve the transmission and amplification of the electrical signal.
Filter noise: Components such as filters on the circuit board can filter and screen the signal, remove noise and interference signals, and ensure the stability and reliability of the signal.
Feedback control: The feedback circuit on the circuit board can realize the monitoring and adjustment of external factors, such as temperature, pressure, speed, etc., so as to achieve feedback control and adjustment functions.
Protection circuit: The protection circuit on the circuit board protects devices such as power supply and load to avoid threats to equipment and personal safety caused by faults such as overload and short circuit.
Other functions: Other components on the board can also achieve some specific functions, such as switch control, brightness adjustment, and so on.
In short, the circuit board component is an important part of the circuit system, which can realize the transmission, processing and adjustment of electrical signals, and can also realize the protection and control of the circuit system.
The application scenarios of circuit board components are very wide, involving almost all areas involving electrical signal processing. For example, in the field of industrial control, circuit board components can be used to achieve various control circuits, such as PLC, DCS, etc. In the field of communication, circuit board components can be used to realize various communication circuits, such as switches, routers, etc. In the field of consumer electronics, circuit board components can be used to achieve a variety of electronic products, such as mobile phones, televisions, audio, etc. In the field of automotive electronics, circuit board components can be used to implement various automotive electronic devices, such as engine control modules, brake control modules, etc. In short, circuit board components are an indispensable part of modern electronic technology and are widely used in various fields.
