The IS220UCSAH1A is BOSCH's CAN-CONTROLLER AREA NETWORK for modern automotive applications.
The IS220UCSAH1A is a processor/controller developed by General Electric for the Mark VI system. The Mark VI platform, designed to manage gas or steam turbines, was released by ge as part of the Speedtronic family. It has an HMI(Human machine interface) with software designed for running heavy-duty turbines, such as the CIMPLICITY graphical interface.
The IS220UCSAH1A is a processor/controller developed by General Electric for the Mark VI system. The Mark VI platform, designed to manage gas or steam turbines, was released by ge as part of the Speedtronic family. Has an HMI(Human Machine interface) with software designed for running heavy duty turbines, such as the CIMPLICITY graphical interface.

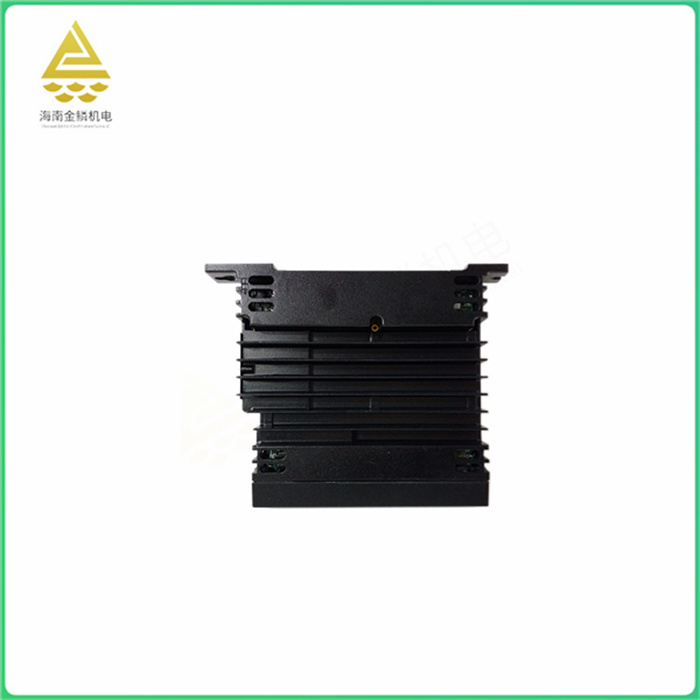

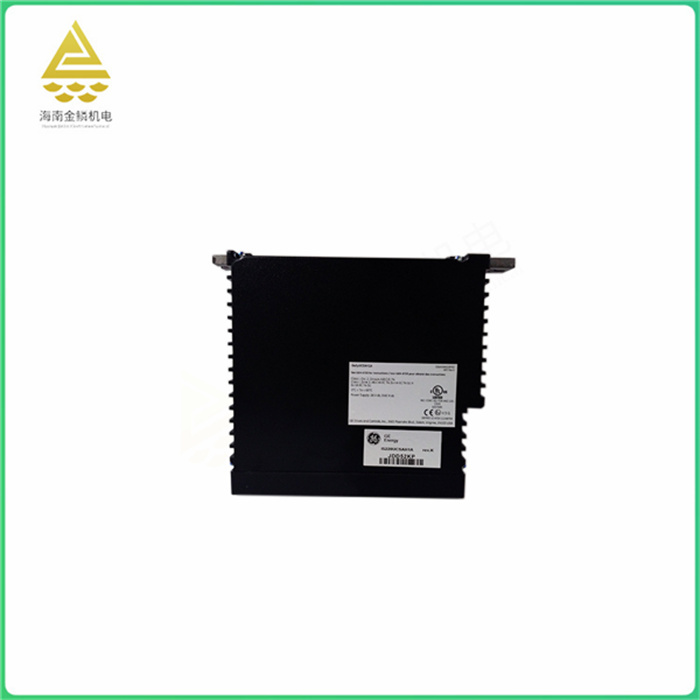

The IS220UCSAH1A is a separate boxed assembly with a front panel to allow communication connections, two screws mounted on the back edge, and grille openings on three sides to allow air flow. The controller is designed for mounting bases in cabinets. Up to three components can be installed next to each other to form a compact layout for easy service of triple-redundant systems.
The IS220UCSAH1A runs on the QNX operating system. It has a Freescale 8349, 667 megahertz processor. The board uses a 12-watt power supply rated at 18-36 volts DC. The board can be used at temperatures from 0 to 65 degrees Celsius and does not require a fan to cool it even at maximum rated temperatures. The board can be used for NFPA Level 1, partitioning. 2 Application programs.

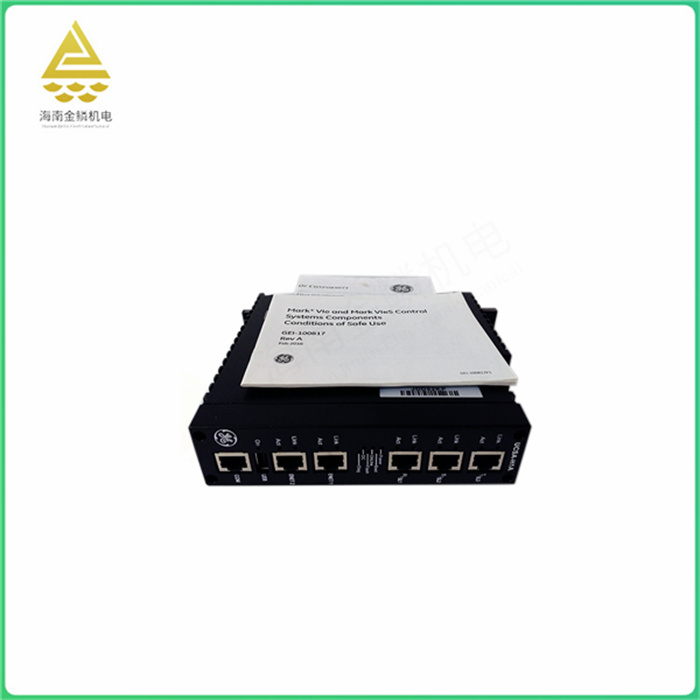

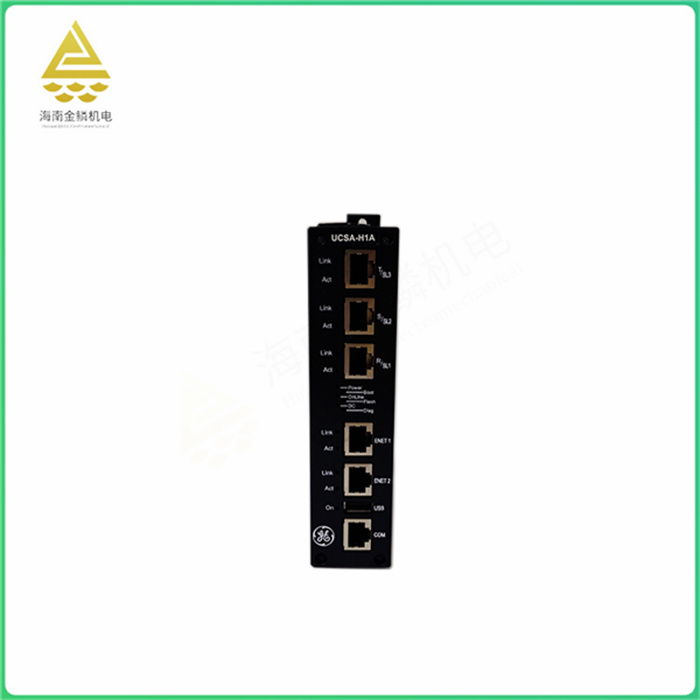

The front panel of the IS220UCSAH1A has six female jack connectors, a USB port, and multiple LED indicators. This includes LED indicators labeled Link/Act on the left side of the front panel, and a row of indicators labeled Power, Boot, Online, Flash, DC, and Diag in the middle of the panel. The jack connector is used for Ethernet connectivity and enables the board to communicate with other MKVI, MKVle, or EX2100 excitation controllers, as well as with maintenance and operator stations.
The functions of IS220UCSAH1A include:
The Power QUICC II Pro Freescale processor runs at 667 MHz.
A grille opening with three sides allows air flow.
The controller is designed for base mounting in a cabinet and up to three components can be mounted next to each other for a compact arrangement.
Can serve triple redundant systems.
The controller is installed in a CPCI cabinet and is connected to I/O packets using a built-in I/O network interface.
The controller's operating system is QNX Neutrino, a real-time multitasking operating system created for industrial applications that require extreme speed and reliability.
The UDH is connected via two 10/100BaseTX Ethernet ports, while the IONet is connected via three additional 10/100BaseTX Ethernet ports.
Ethernet connections for I/O, operator, Unit Data highway (UDH) are used to connect control systems such as HMI. Ethernet connections for R, S and TI/O networks establish RS-232C connections via the COM1 port.
The advantages of IS220UCSAH1A mainly include:
High-speed performance: The module usually has high-speed control capabilities, which can quickly generate and respond to pulse signals, meet the requirements for precise control and high-speed motion, and ensure the stability and accuracy of the system.
Flexibility and programmability: The IS220UCSAH1A module usually has flexible configuration and programmability, which can be set and adjusted according to specific application requirements, and supports different control algorithms and parameter configurations.
Interface and communication: The module may support multiple interfaces and communication protocols for data transmission and communication with other devices and systems. It can be connected with the main controller or the host computer to realize remote monitoring and control.
Reliability and stability: The IS220UCSAH1A module is designed for use in industrial environments with reliability and stability. It is subject to rigorous quality control and testing to ensure its reliability and durability in harsh environments.
Easy to use and maintain: The front panel has multiple female jack connectors, a USB port, and multiple LED indicators, including LED indicators labeled "Link/Operation" on the left side of the front panel, and a row of indicators labeled "Power," "Startup," "Online," "Flash," "DC," and "Diagnostics" located in the middle of the panel. These jack connectors are used for Ethernet connectivity, allowing the board to communicate with other MKVI, MKVIe, or EX2100 excitation controls, as well as maintenance stations and operator stations.
In general, the advantages of IS220UCSAH1A are mainly reflected in high-speed performance, flexibility and programmability, interface and communication, reliability and stability, as well as ease of use and maintenance, which can effectively improve the performance and efficiency of industrial automation and control systems.
