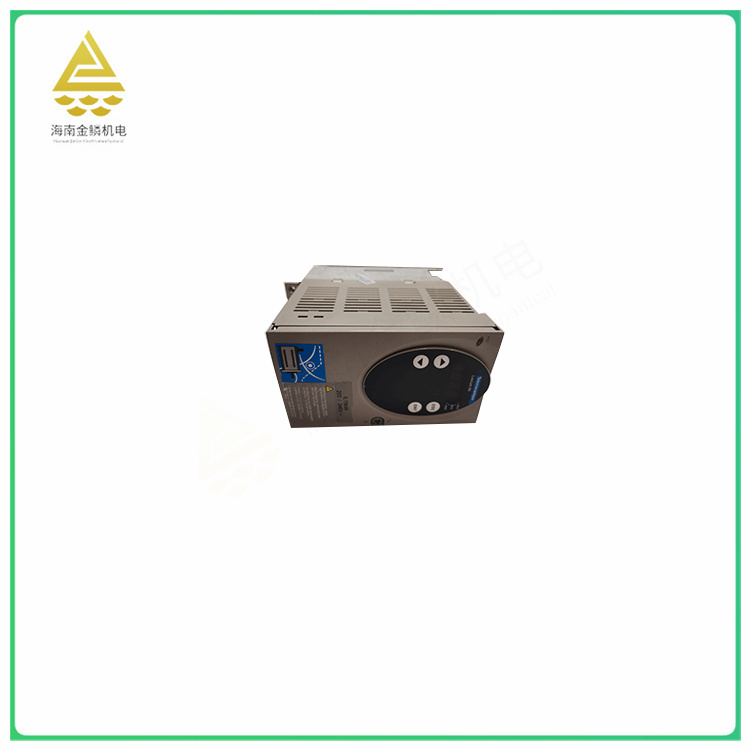

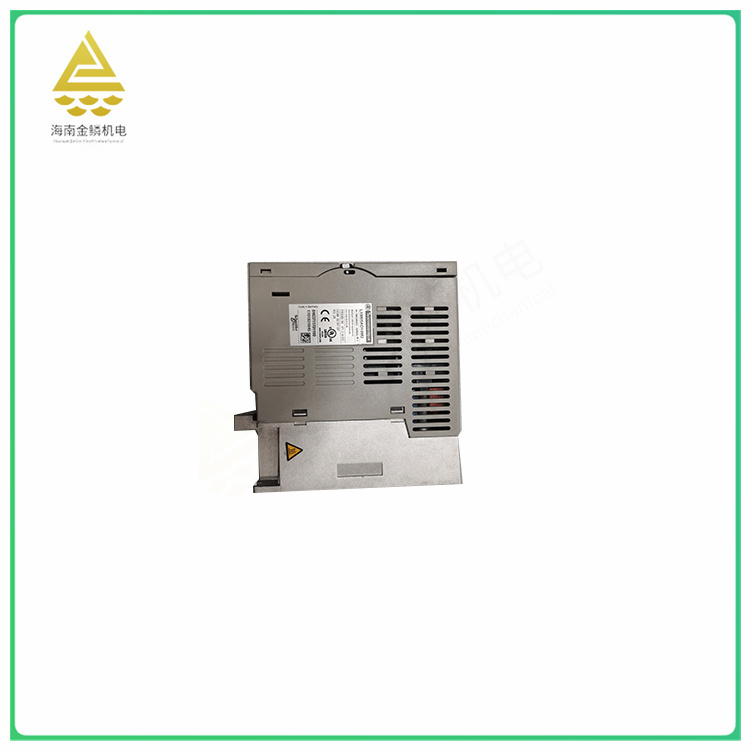

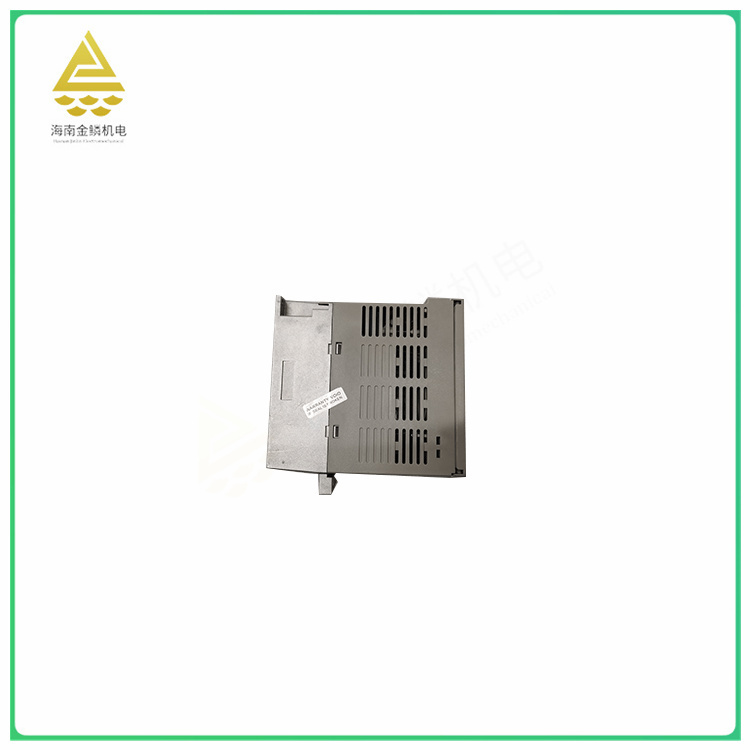

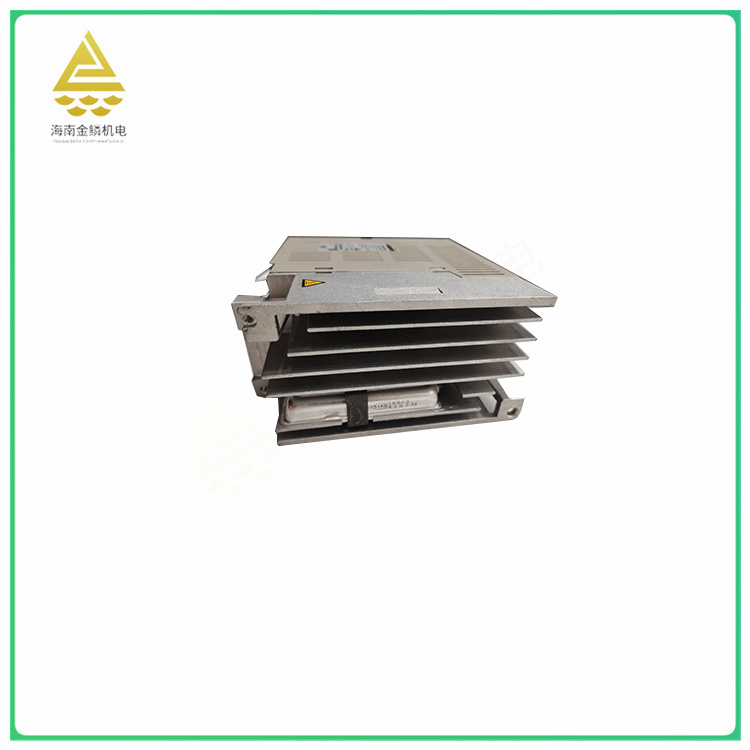

The LXM05AD10M2 is a Schneider Electric servo drive for a variety of positioning and precision speed control applications. It has the advantages of high precision, high dynamic response and high reliability, and can meet various complex control requirements. LXM05AD10M2 adopts advanced algorithm and circuit design, has high-speed operation and data processing capabilities, and can achieve high precision speed and position control. At the same time, it also has a variety of protection and diagnostic functions to ensure the safety and stability of equipment operation.
The main features of LXM05AD10M2 include:
High precision: LXM05AD10M2 has high precision speed and position control capabilities, and can achieve high precision positioning and trajectory control, which is suitable for a variety of applications requiring high precision control.
High dynamic response: LXM05AD10M2 has fast dynamic response ability, can quickly track instruction signals, and achieve high-speed dynamic tracking and response.
High reliability: LXM05AD10M2 adopts high-performance circuit design and a variety of protection measures to ensure long-term trouble-free operation and improve the reliability and stability of the equipment.
Easy to program and maintain: The LXM05AD10M2 supports a variety of programming languages and development environments, making it easy for users to program and maintain. At the same time, it also provides a wealth of diagnostic and monitoring functions, which is convenient for users to troubleshoot the system and remote monitoring.
In short, the LXM05AD10M2 is a high performance, high reliability servo drive, suitable for a variety of high-precision, high-speed, safe and stable control applications.
Protection and diagnostic functions of the LXM05AD10M2 include:
Overload protection: When the output current of the driver exceeds the set value, the overload protection function will automatically cut off the power supply and protect the equipment from overload damage.
Short-circuit protection: The short-circuit protection function can quickly cut off the power supply to avoid damage to the device due to short circuit.
Overvoltage and undervoltage protection: When the input voltage exceeds or falls below the set value, the overvoltage and undervoltage protection function will automatically cut off the power supply and protect the device from overvoltage or undervoltage damage.
Temperature protection: The temperature protection function can monitor the temperature of the driver, when the temperature exceeds the set value, it will automatically reduce the output power or cut off the power supply to avoid overheating damage to the driver.
Fault diagnosis: LXM05AD10M2 has a fault diagnosis function, which can monitor the operating status of the equipment in real time. When a fault occurs, it can quickly locate the fault and issue an alarm, which is convenient for users to troubleshoot and maintain.
In short, LXM05AD10M2 protection and diagnostic functions are very perfect, to ensure the safety and stability of equipment operation.
The overload protection value of the LXM05AD10M2 can be adjusted by software. Users can set the overload protection threshold through programming software or driver panel according to the needs of actual applications. When setting, it is necessary to comprehensively consider factors such as the maximum load and safety factor of the equipment to ensure that the equipment can be effectively protected when overloaded and avoid misoperation
