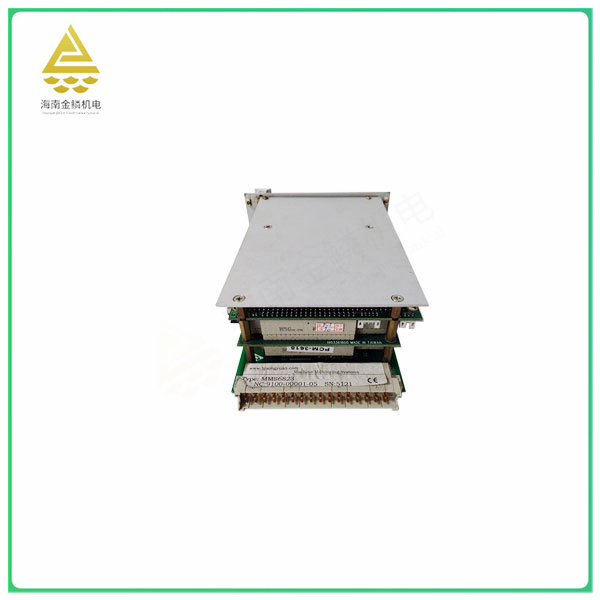

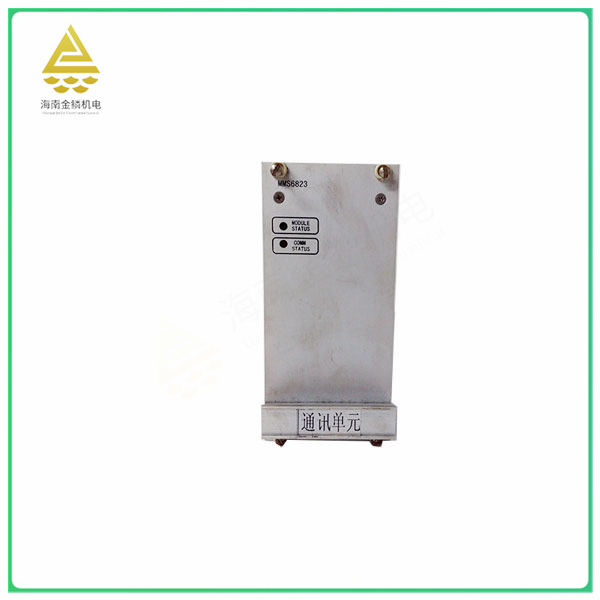

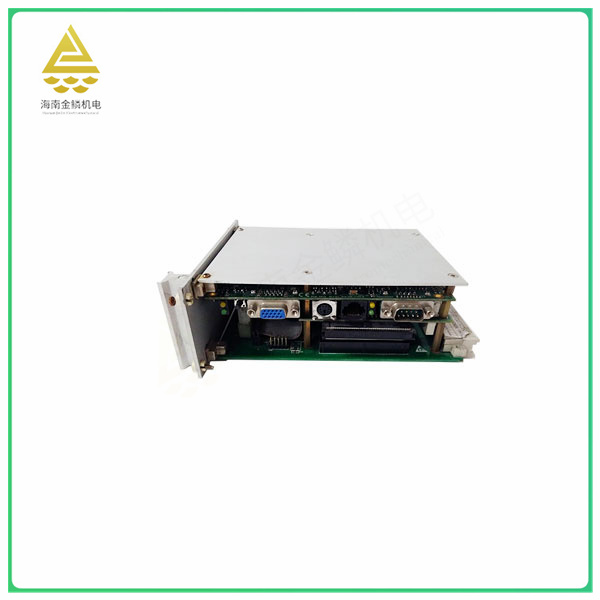

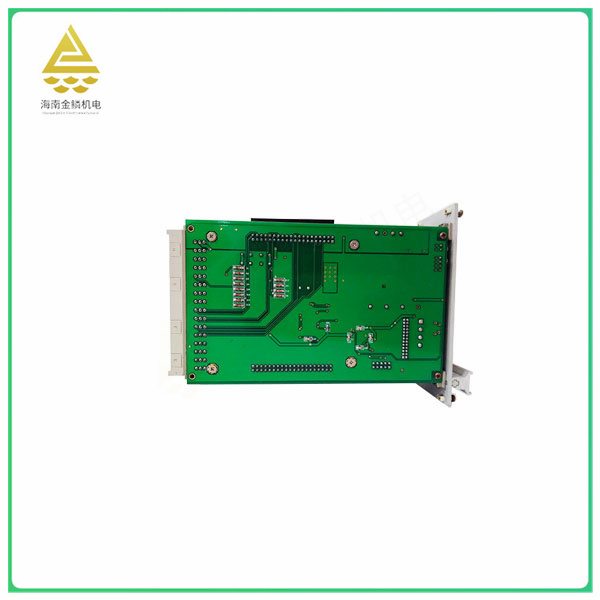

The function of MMS6823 is to continuously access the MMS6000 module connected to the bus through the RS485 bus, and convert the received feature value data and alarm and module status data into the standard MODBUS protocol. The MODBUS output can choose MODBUS RTU or MODBUS ASCII protocol.
MMS6823 is a communication interface module, its functions and features are as follows:
The MMS6000 module connected to the bus is continuously accessed through the RS485 bus and the relevant data is obtained from it.
The received eigenvalue data and alarm and module status data are converted into the standard MODBUS protocol, and MODBUS RTU or MODBUS ASCII protocol can be selected.
The received eigenvalue data, alarm and module status data are converted into standard TCP/IP protocol, and output through Ethernet RJ45 interface.
It has the function of configuring the connected MMS6000 module.
Data input is connected to the RS485 bus of the MMS6000 system through the 48-pin socket at the back of the module. The transmission rate can be 38400bps or 57600bps.
Data output can choose MODBUS or TCP/IP network interface, the transmission rate is adaptive, where the TCP/IP network interface is the standard RJ45 interface, located on the rear panel of the module, using standard network cable connection.
The IP address can be flexibly set as required.
The power supply voltage is 18~24V DC redundant power supply, in accordance with IEC 654-2 standard, grade DC4.
The operating temperature range is 0~60℃, in line with DIN 40040 standard, grade KTF.
The storage and transportation environment requirements are -40~85℃, the relative humidity is allowed to be 0~90%, no condensation, the vibration is allowed according to IEC68-2 standard, 6 parts, the peak acceleration is 98m/s²; Rated impact duration 16ms.
Overall, the MMS6823 is a powerful communication interface module suitable for a variety of industrial environments and applications.
