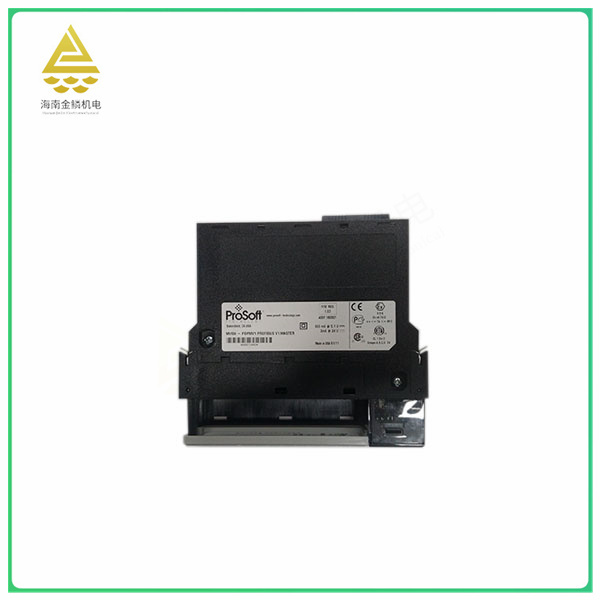

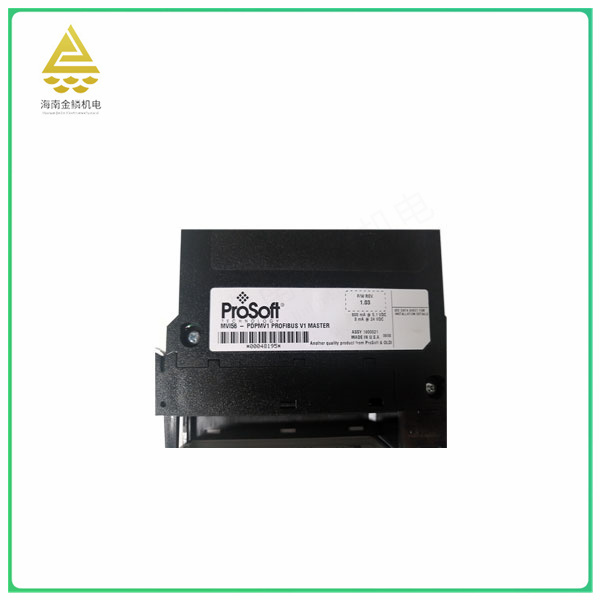

MVI56-PDPMV1 is a special communication module, mainly used in the field of industrial automation. The following is a detailed explanation of MVI56-PDPMV1:
Functions and Applications:
MVI56-PDPMV1 is a Profibus DP V1 master station communication module. It works with Rockwell Automation's ControlLogix platform to enable communication and data exchange with other industrial equipment.
The module comes with an RS485 optically isolated Profibus interface that supports the DP V1 standard, allowing it to connect up to 125 slave devices. This means it can communicate with a large number of external devices or sensors to monitor and control them.
It is also compatible with Profibus Repeaters, which means Repeaters can be used to enhance the performance of the network when it is necessary to extend the communication distance or increase the number of devices.
The MVI56-PDPMV1 supports the full master device specification according to IEC61158, which means that it can be seamlessly integrated with other devices that comply with this standard.
Data transfer:
The module supports the transmission of acyclic parameter data, which can be transmitted via Class 1 or Class 2 DP V1 services. This ensures that the processor can easily communicate with slave devices that support the Profibus DP V0/V1 protocol.
Interfaces and Protocols:

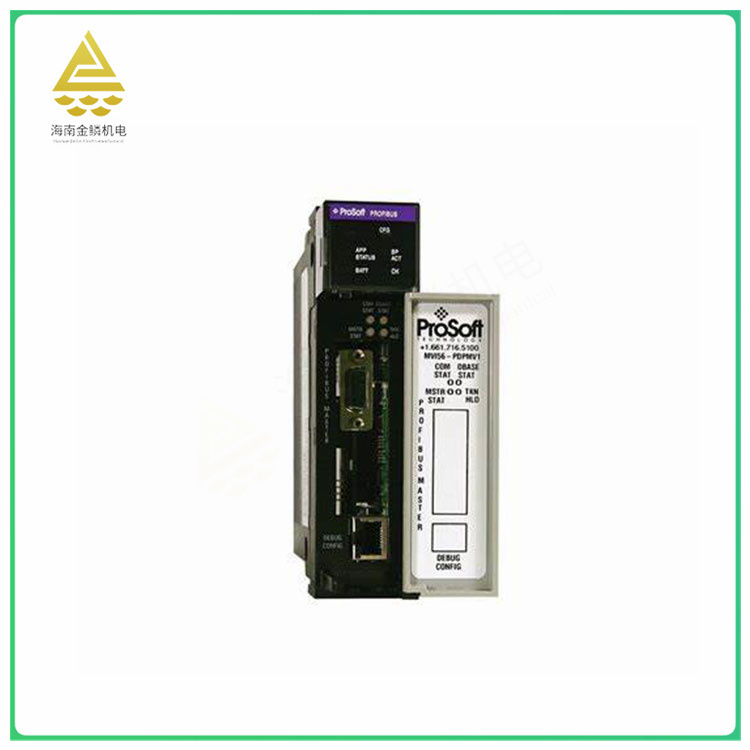

The MVI56-PDPMV1 provides an LED status indicator and a debug/configuration port, making it easy for users to monitor the status of the module and perform the necessary configuration.
It supports a variety of communication protocols, such as Modbus, TCP/IP, etc., which makes it compatible with a variety of devices and systems.
Other features:
The MVI56-PDPMV1 also supports data buffering with store and forward and data objects, which allows it to provide additional stability and reliability during data transfer.
It also supports seamless integration of devices with Moca Biology/Uport, which gives users greater flexibility and scalability in device selection.
The module also has a built-in computing function that can perform some basic mathematical and logical operations, thus avoiding additional programming work.
Working Environment and Certification:
The MVI56-PDPMV1 operates in a very wide temperature range, from -40°C to high temperatures, which allows it to operate stably in a variety of harsh industrial environments.
It also has several international and regional certifications, such as EMC, EMI, safety and radio frequency, which ensure compliance and reliability on a global scale.
In summary, the MVI56-PDPMV1 is a powerful, flexible and highly integrated communication module for a variety of industrial automation and control applications.
