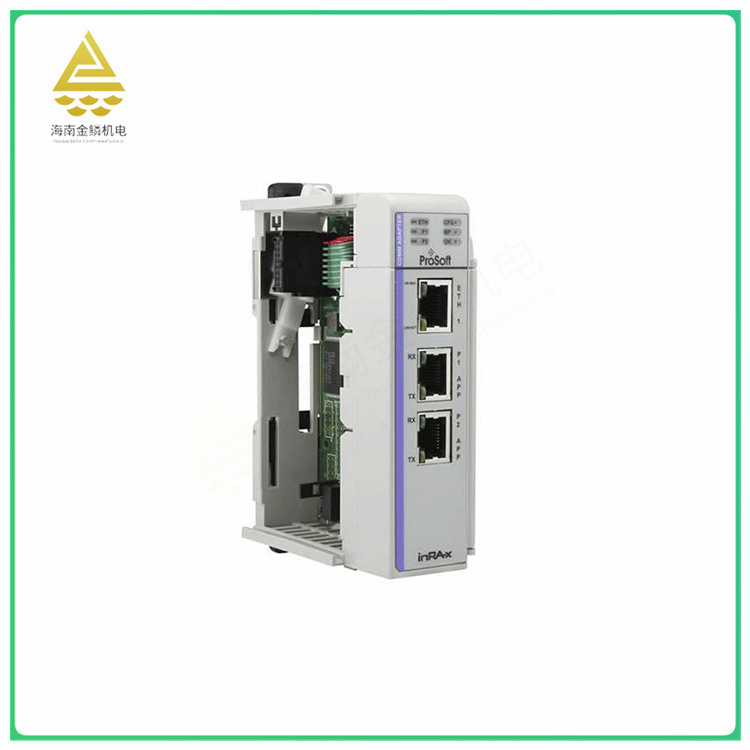

The MVI69E-MBS is a Modbus serial enhanced communication module for use in the CompactLogix™ series PLC. It has a variety of profiles and instructions to reduce debugging time, and has two serial ports to support master and/or slave station connections to various devices using the Modbus protocol. The MVI69E-MBS features fully integrated, fully protected power distribution and supports panel and rack mount.
The MVI69E-MBS is a Modbus serial enhanced communication module with the following features:
For the CompactLogix™ family of PLCS, with two serial ports to support master and/or slave station connections to various devices using the Modbus protocol.
Comes with additional configuration files and additional instructions to reduce debugging time.
Power distribution with fully integrated complete protection, support for panel and rack mount.
Support AOP and AOI functions.
Command processing capability of up to 250 Modbus commands.
Supports 10000 word register area for user use.
The maximum current input of 500mA@5VDC is supported by function codes 1, 2, 3, 4, 5, 6, 15, 16.
To sum up, MVI69E-MBS is a powerful Modbus serial enhanced communication module with a variety of features to meet the needs of different applications.
MVI69E-MBS Modbus Serial Enhanced communication module is a communication module used in the field of industrial automation, it has the following advantages and disadvantages:
Advantages:
Good compatibility: MVI69E-MBS Modbus protocol is a communication protocol widely used in the field of industrial automation, with good compatibility, can communicate with many different manufacturers of equipment.
High stability: Modbus protocol is a mature communication protocol, has been widely used in the field of industrial automation, with high stability and reliability.
Simple to use: The Modbus protocol communication format is simple, easy to understand and use, and does not require complex programming knowledge.
Low cost: Compared with other communication protocols, Modbus protocol has a lower cost, which can reduce the cost of equipment.
Cons:
Slow transmission speed: MVI69E-MBS Modbus protocol is a protocol based on serial communication, the transmission speed is relatively slow, not suitable for the occasion of high transmission speed requirements.
Limited communication distance: The communication distance of Modbus protocol is limited, generally not more than 1200 meters, and is not suitable for long-distance communication occasions.
Limited functions: The MVI69E-MBS Modbus protocol has relatively limited functions and does not support complex communication protocols and functions.
Poor security: MVI69E-MBS Modbus protocol itself does not have high security, vulnerable to network attacks and data theft.
In general, the MVI69E-MBS Modbus serial enhanced communication module has the advantages of good compatibility, high stability, simple use and low cost, but it also has some disadvantages such as slow transmission speed, limited communication distance, limited functions and poor security. When selecting communication modules, you need to select them based on specific application scenarios and requirements.
