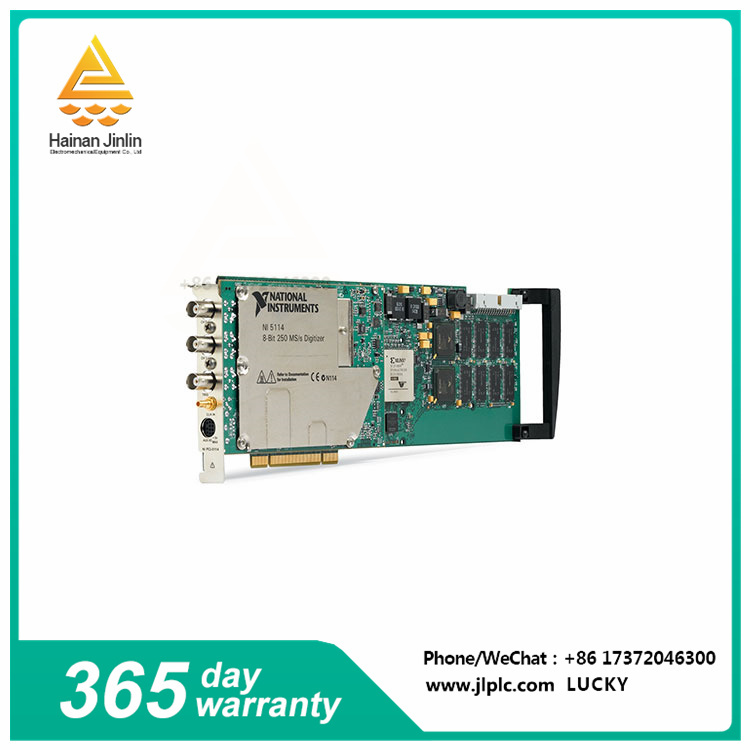

The PCI-5114 is an oscilloscope device manufactured by National Instruments (NI). The main function of this device is to collect and analyze analog waveforms in the time and frequency domains. It is a flexible software-defined instrument that can be used for time - and frequency-domain measurements and is available in industry standard forms such as PCI and USB.
The PCI-5114 oscilloscope device has up to 8 channels and a sampling rate of up to 2GS/s, which allows it to handle large amounts of data and meet a variety of high-speed measurement needs. In addition, it has a variety of trigger modes, as well as a high capacity of on-board memory, which allows the device to perform well in long-term, large data volume measurement tasks.
In addition to excellent hardware performance, the PCI-5114 is equipped with a driver software API that includes data streaming and analysis capabilities, which makes it easy for users to process and analyze the collected data. At the same time, the device's high-density PXI oscilloscope has eight synchronous sampling channels, providing flexible coupling, impedance, voltage range and filter Settings, further increasing its applicability in a variety of application scenarios.
In particular, the PCI-5114 oscilloscope device is ideal for multi-channel applications that require up to 60MS/s or 60MHz analog bandwidth. This makes it uniquely suited for many complex measurement tasks in industry, research and education.
Overall, the PCI-5114 is a powerful and excellent oscilloscope device, which has won the favor of the majority of users with its flexible software-defined features, high-speed sampling capability, rich trigger mode, and powerful data processing and analysis functions.
