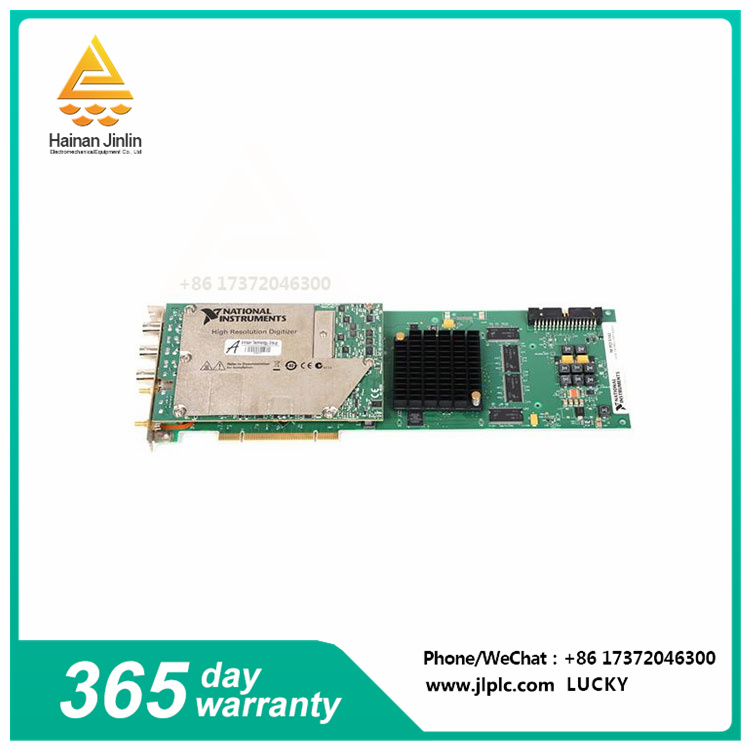

The PCI-5142 is an oscilloscope/digitizer device manufactured by National Instruments (NI). The following is a detailed introduction to PCI-5142:
The PCI-5142 is a 100 MS/s oscilloscope/digitizer capable of on-board signal processing (OSP). It has an equivalent time sampling rate of up to 2.0 GS/s, making it suitable for applications requiring high precision and high speed measurements. In addition, the PCI-5142 oscilloscope device has a 14-bit analog input resolution, ensuring accurate data acquisition.
In terms of hardware design, the PCI-5142 has two voltage input channels, each with an on-board memory size of 256 MB/ch, and an analog input voltage range of 20 Vpp. In addition, the device has on-board digital downconverter and sealing functions, further enhancing its flexibility and reliability in practical applications.
In terms of functionality, the PCI-5142 oscilloscope device is a flexible, software-defined instrument that can be used for both time and frequency domain measurements. It provides industry standard forms such as PCI and USB for easy integration into various test systems. At the same time, the PCI-5142 also provides a wealth of measurement and analysis capabilities to help users quickly and accurately obtain data and analyze.
In addition, PCI-5142 has a wide range of applications, suitable for PLC automation spare parts, industrial automation, control systems, and education. Its high performance and flexibility make it easy for users to cope with a variety of complex measurement tasks.
Overall, the PCI-5142 is a powerful, high-performance oscilloscope/digitizer device that meets a wide range of high-precision, high-speed measurement needs.
