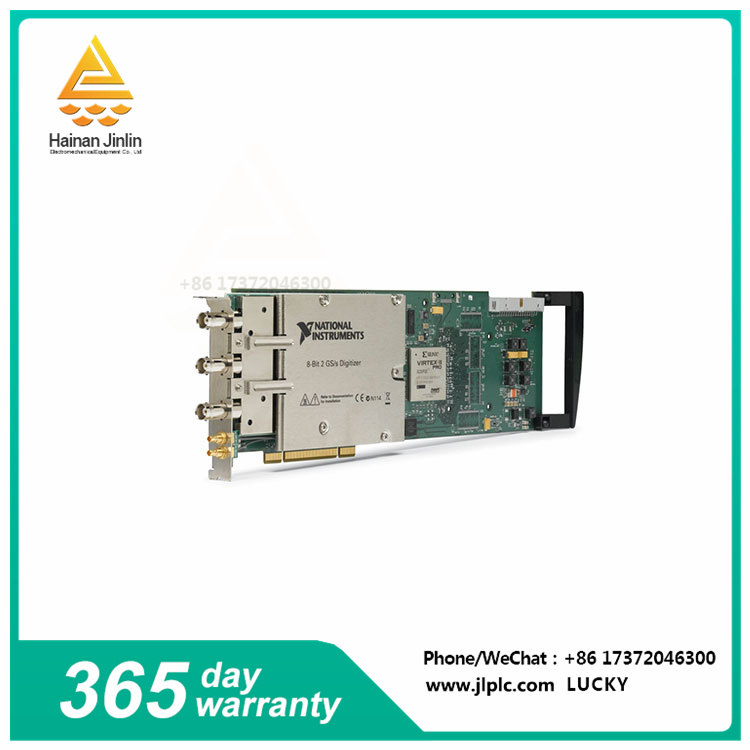

The PCI-5152 is a digital instrument manufactured by National Instruments (NI). It has excellent technical specifications and features that make it suitable for a wide range of applications in the field of high-speed data acquisition and signal processing.
First, PCI-5152 has an analog bandwidth of 300 MHz, which provides sufficient bandwidth for signal acquisition. In terms of sampling rate, it provides a real-time sampling rate of up to 2 GS/s per channel and a sampling rate of up to 1 GS/s when two channels are collected simultaneously. For repeated signals, the PCI-5152 has an equivalent Time sampling (ETS) mode that enables sampling rates up to 20 GS/s, which is useful for applications that require extremely high time resolution.
In terms of channels and memory, the PCI-5152 offers 2 synchronous sampling channels, each with a standard memory of 8 MB and expandable up to 256 MB of on-board memory. This enables PCI-5152 to perform well in long time and large data acquisition tasks, while ensuring data integrity and accuracy.
In addition, the PCI-5152 has a very wide input range, from 100 mV to 10 V, which can meet the needs of different signal strengths. At the same time, it offers two optional input impedances of 50 Ω and 1 MΩ to adapt to different signal sources and test environments.
The PCI-5152 digitizer not only offers excellent hardware performance, but also flexible software-defined functions. It can convert a desktop PC into a fully functional oscilloscope and implement various measurement and analysis functions through software. This makes the PCI-5152 widely used in industrial automation, consumer electronics, semiconductors, space/defense, and life sciences.
Overall, the PCI-5152 is an excellent and feature-rich digitizer device. With its high bandwidth, high sampling rate, large memory and flexible software-defined functions, it provides users with efficient and accurate data acquisition and signal processing solutions. Whether in research experiments, product development or production line testing scenarios, PCI-5152 can play its unique advantages to meet the needs of users.
